Extralink EXSEC19-60 | Sector antenna | 5GHz MIMO 4x4, 60°, 19dBi, dedicated for Mimosa A5C

CODE: EX.8925 / EAN: 5902560368925

Extralink EXSEC19-60 | Sector antenna | 5GHz MIMO 4x4, 60°, 19dBi, dedicated for Mimosa A5C

CODE: EX.8925 / EAN: 5902560368925
125,55 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Antenna frequency: 5 GHz
Energy gain: 21dBi - 30dBi
Antenna connector type: N-type
Antenna gain level (max): 25
Show more parameters

About product

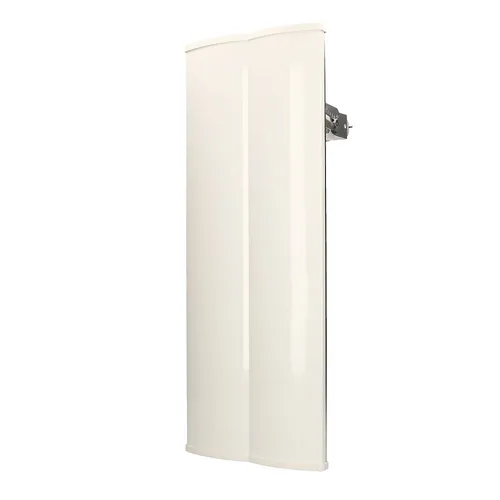

Extralink EXSEC19-60 sector antenna - designed to provide reliability and excellent performance

With its high performance and wide beamwidth, it is suitable for commercial installations and professional wireless networks. The Extralink EXSEC19-60 sector antenna is ideal for outdoor applications, especially in systems based on Mimosa A5C technology.

Excellent performance

The Extralink EXSEC19-60 sector antenna offers a wide frequency range from 4.9GHz to 5.9GHz, ensuring a stable connection even in the most demanding conditions. With an energy gain of 19dBi, each transmission is optimized to the maximum, resulting in excellent signal quality. High cross-polarization isolation (>20 dB) minimizes interference, ensuring an uninterrupted and clean connection.

Robust construction

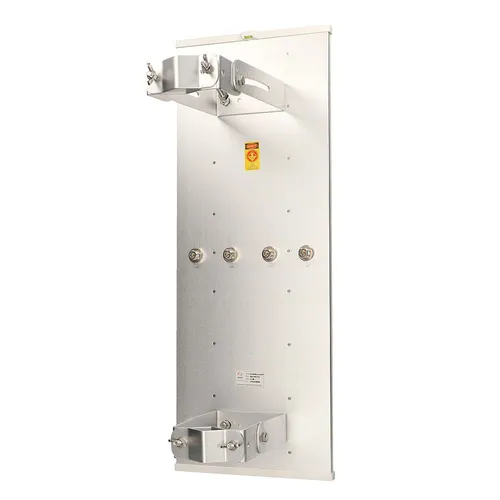

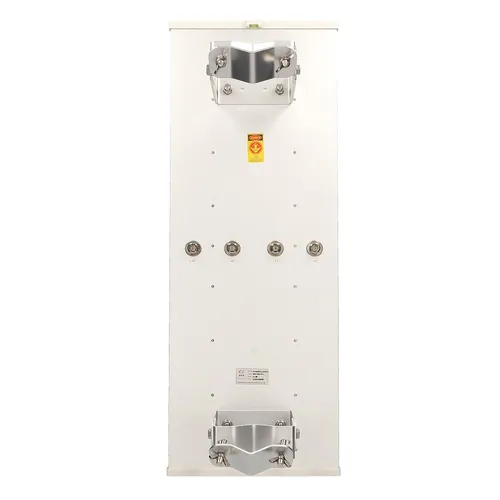

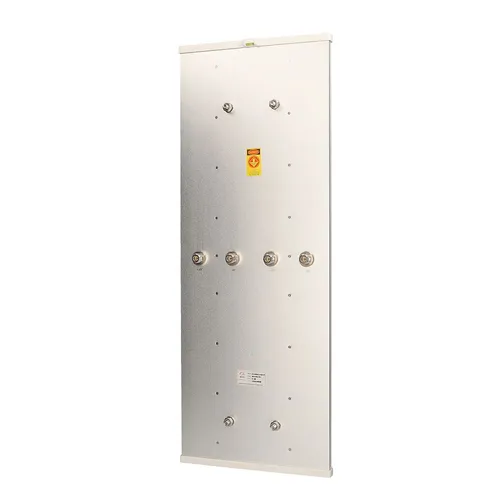

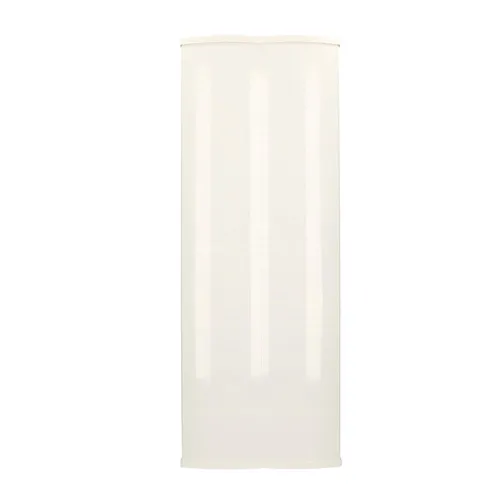

The antenna is made of acrylonitrile-butadiene-styrene copolymer and duralumin, making it extremely durable and weatherproof. UV protection and water resistance ensure the longevity of the product, even in the harshest outdoor conditions. The design is also resistant to lightning thanks to DC grounding, further enhancing the safety of use.

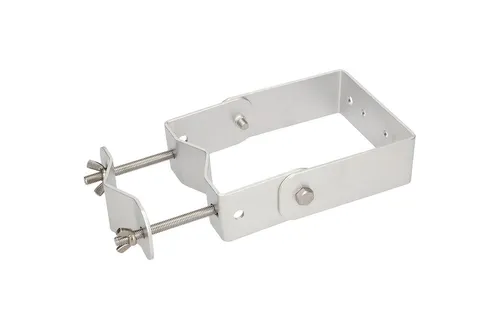

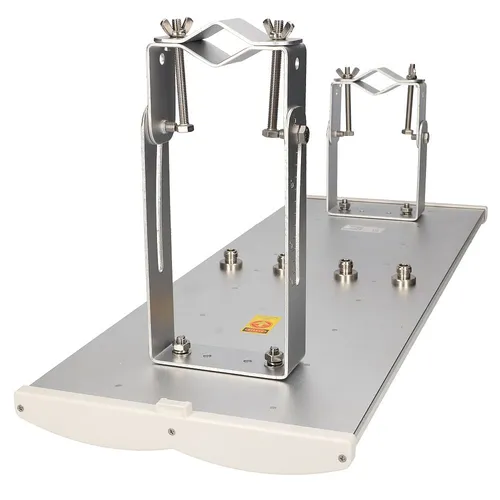

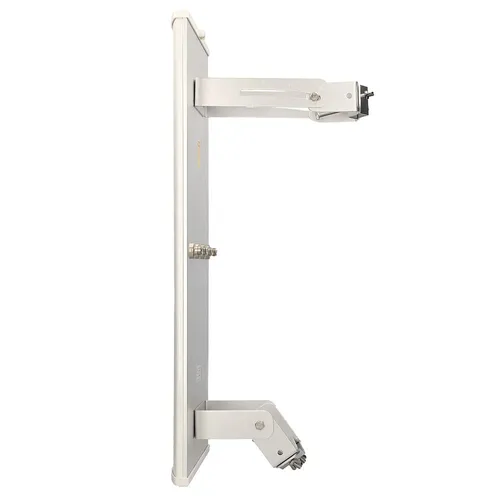

Ease of installation

Ideal for outdoor installations, it is dedicated to Mimosa A5C systems, which guarantees full compatibility and performance. The wide vertical and horizontal beamwidth (60°) allows coverage of large areas, which is crucial in commercial applications. Easy installation and low weight make installation fast and hassle-free, saving time and money.

Specification

Features / filters
Antenna frequency 5 GHz
Energy gain 21dBi - 30dBi
Antenna connector type N-type
Antenna gain level (max) 25
Antenna type Sector, Sector antenna,
Application Outdoor
Compatible with brand Mimosa
Connector gender Female
Connector type 4x N FEMALE
Cross polarization isolation >20 dB
Frequency band 5
Front-to-back ratio 25 dB
Horizontal beam width 60
Horizontal beamwidth 60°
Housing material Acrylonitrile butadiene styrene (ABS), Duralumin
MIMO Type 4x4
Polarization Double diagonal 45°
Port-to-Port isolation >20 dB
Product colour White
Ultraviolet (UV) resistant Yes
Vertical beam width 4
Vertical beamwidth 4°
Voltage Standing Wave Ratio (VSWR) 1.5:1
VSWR 1.5:1
Waterproof Yes

Frequency range 4.9-5.9GHz
Reinforcement 19dBi
Isolation between ports 20 dB type
Cross polarization 20 dB type
Maximum power per port 20 W
Lightning protection DC grounding
Weight 5kg
Dimensions 700x260x30 mm
Operating temperature -45°C to 65°C

Faq

Is the Extralink EXSEC19-60 antenna compatible with the Mimosa A5C system?

Yes, the antenna is dedicated to the Mimosa A5C, ensuring full compatibility and optimal performance.

What is the energy gain of the antenna?

Energy gain ranges from 21dBi to 30dBi, with a maximum gain level of 25.
