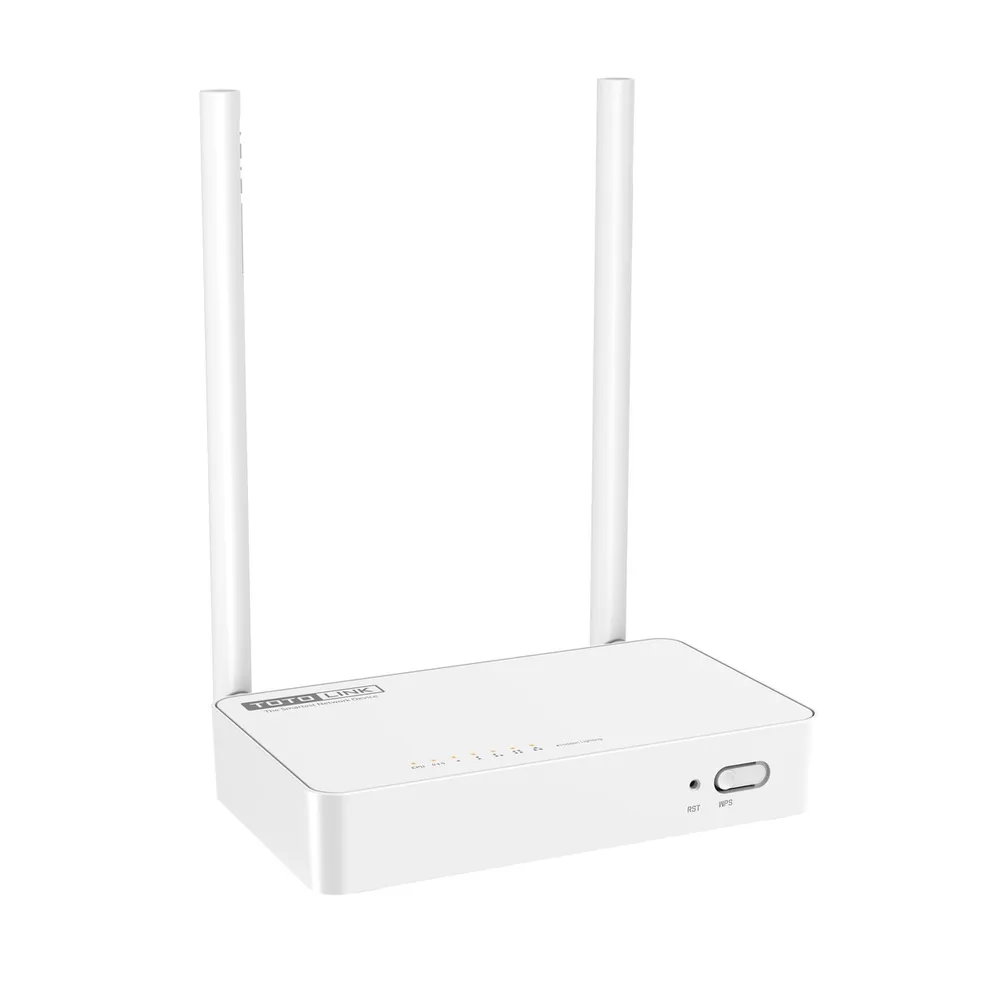

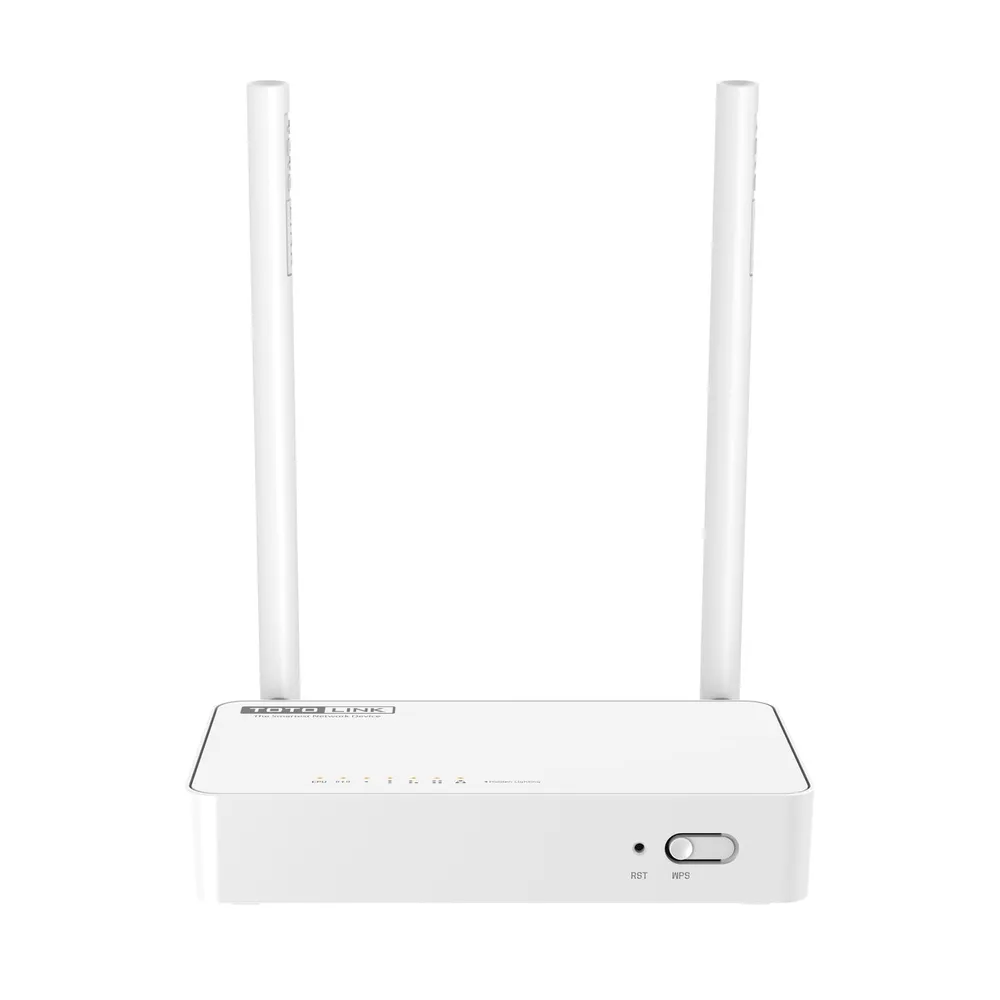

Totolink N300RT V4 | WiFi Router | 300Mb/s, 2,4GHz, 5x RJ45 100Mb/s

TOTOLINK N300RT V4 is an 802.11n compliant wireless router with a 300 Mbps wireless transfer rate. Thanks to 2 high-gain antennas, the device provides a stable, long-range Wi-Fi signal, allowing many devices to connect to the Internet simultaneously. In addition, the N300RT V4 also supports the advanced WPA / WPA2 security standard to prevent unauthorized access to Wi-Fi networks.
Compatible with the 802.11n wireless standard, the Totolink N300RT V4 delivers high speeds of up to 300 Mbps to satisfy most home Internet applications such as network communications, online gaming or video streaming.
Equipped with 2 high performance antennas, the N300RT V4 allows the Wi-Fi signal to be shared with multiple connected devices at the same time. The advanced security standard WPA / WPA2 (TKIP / AES) is built into the device to ensure the security of the Wi-Fi connection without fear of unauthorized access. With the Wi-Fi scheduler feature, parents can now easily manage their children's access to the Internet by planning to turn Wi-Fi on and off or block unwanted websites.
Features / filters | |
Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
3G | No |
3G/4G USB modem compatibility | No |
4G | No |
AC adapter included | Yes |
AC input frequency | 50/60 |
AC input voltage | 100 - 240 |
Access Control List (ACL) | Yes |
Antenna gain level (max) | 5 |
Antenna included | Yes |
Antenna type | External |
Antennas quantity | 2 |
Built-in display | No |
Built-in processor | Yes |
Cables included | LAN (RJ-45) |
DC-in jack | Yes |
Depth | 76 |
Detachable antenna(s) | No |
DHCP client | Yes |
DHCP server | Yes |
DMZ support | Yes |
DSL WAN | No |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100 |
Ethernet LAN interface type | Fast Ethernet |
Ethernet WAN | Yes |
External power adapter | Yes |
Filtering | Yes |
Firewall | Yes |
Firmware upgradeable | Yes |
Height | 24 |
Housing material | Acrylonitrile butadiene styrene (ABS), Plastic, Polycarbonate (PC) |
Indication light | Yes |
IP address filtering | Yes |
LED indicators | LAN, Power, WAN |
MAC address filtering | Yes |
Memory card slot(s) | No |
Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
On/off switch | No |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 50 |
Output current | 0.5 |
Output voltage | 9 |
Parental control | Yes |
Plug and Play | Yes |
Port forwarding | Yes |
Power consumption (typical) | 4.5 |
Power over Ethernet (PoE) | No |
Power source type | DC |
Power supply | 4.5 |
Product colour | White |
Product type | Tabletop router |
Quality of Service (QoS) support | Yes |
Quick installation guide | Yes |
Receiver sensitivity | 11b 11M?-81dBm@8% PER 11g 54M?-68dBm@10% PER 11n HT20 MCS7?-65dBm@10% PER HT40 MCS7?-62dBm@10% PER |
Reset button | Yes |
Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
SIM card slot | No |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Universal Plug and Play (UPnP) | Yes |
URL filtering | Yes |
USB port | No |
WAN connection type | RJ-45 |
Web-based management | Yes |
Web-based setup wizard | Yes |
Wi-Fi band | Single-band (2.4 GHz) |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Width | 134 |
WLAN data transfer rate (first band) | 300 |
WLAN data transfer rate (max) | 300 |
WLAN data transfer rate (second band) | 54 |
WLAN data transfer rate (third band) | 11 |
WPS push button | Yes |
Equipment | |
Interface | - 4 * 100Mbps LAN Ports - 1 * 100Mbps WAN Port |
Power supply | DC 9V/0.5A |
LED indicator | 1x System, 1x Wi-Fi, 1x WAN, 4x LAN |
Antennas | 2x external fixed antenna (2.4G) |
Network | |
Standards | - IEEE 802.11b, 802.11g, 802.11n |
Frequency | 2.4GHz |
Network transmission | 2.4GHz: Up to 300Mbps |
EIRP | 2.4GHz |
Security | 64/128-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
Reception sensitivity - 2.4G: | 11b 11M:-81dBm@8% PER 11g 54M:-68dBm@10% PER 11n HT20 MCS7:-65dBm@10% PER HT40 MCS7:-62dBm@10% PER |
Software | |
Status | - WAN - Wireless - LAN - Information System |
Network | - WAN Setting - LAN Setting - IPTV Setting - DHCP&ARP Tables - Static Route - Routing Table |
Wireless functions | - Basic settings - Multiple SSID1 - Multiple SSID2 - Multiple SSID3 - Multiple SSID4 - Advanced settings - Access control - WDS settings - WPS settings - Wireless schedule |
QoS | - QoS On/Off - Add a rule - Current QoS rules table |
Firewall | - MAC Filtration - IP/Port Filtering - Virtual server - URL filtering - DMZ |
System | - Firmware update - Save/Reload settings - Time zone settings - DDNS - Refusal of service - TR-069 Configuration - Password settings - Restart schedule - System Log - Statistics - Run Command - Logout |
Other | |
Package contents | - N300RT_V4 Wireless router *1 - Power supply unit *1 - Ethernet cable *1 - Quick Installation Guide *1 |
Environment | - Operating temperature: 0℃~50℃ (32 ℉~122℉) - Storage temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
