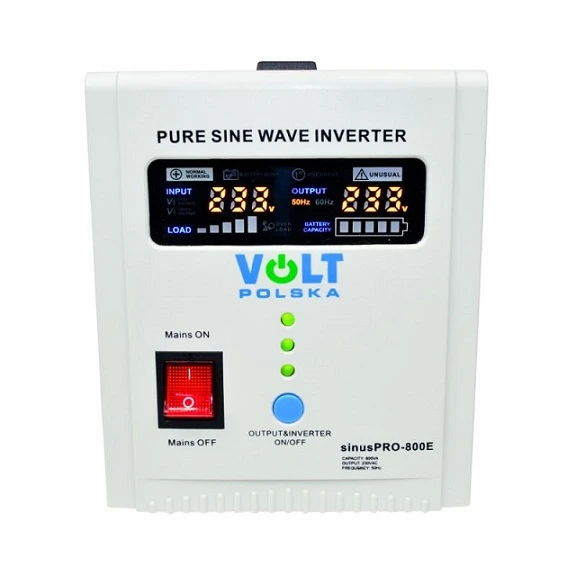

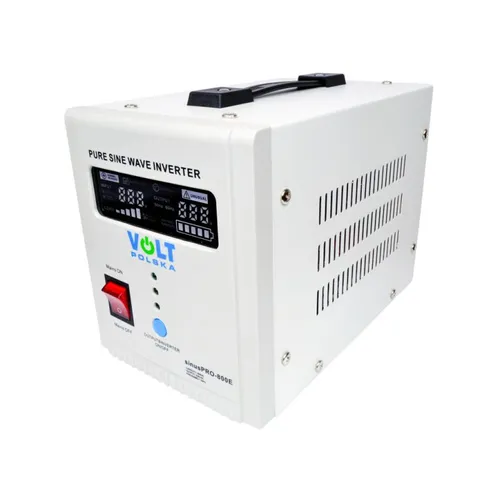

VOLT SINUS PRO UPS 800E 12V 10A | Power supply | 800W
CODE: VOLT SINUS PRO UPS 800E 12V / EAN: 5903111886356

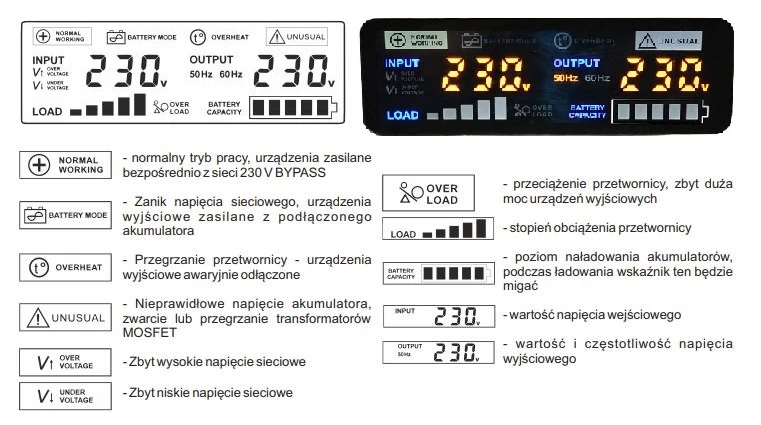

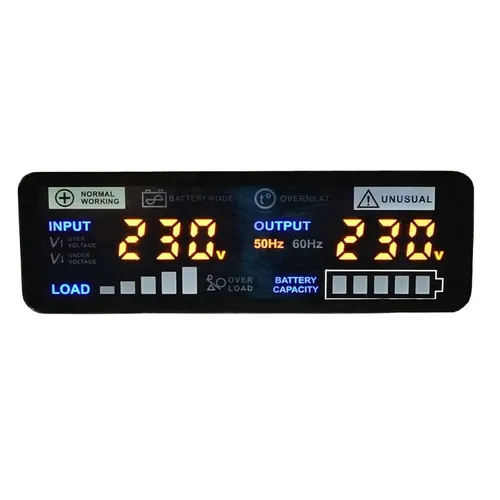

The VOLT SINUS PRO 800EVOLT SINUS PRO UPS 800E is a line-interactive, offline model, used for uninterrupted power supply of computers, servers and computer sets. In the event of a sudden 230VAC power outage, the device switches to battery mode , allowing for further uninterruptible operation of the system, protecting us from irretrievable data loss. The AVR automatic mains voltage regulator, battery charger and the SINUS clean inverter based on a toroidal transformer are all located in one housing with a colour display.
Technical data | |
Rated power (continuous) | 500 W |
Overload power (momentary) | 800 VA |
Battery voltage / -ów | 12 V |
Rectifier (charging current) | 10 A |
Automatic mains voltage regulator - AVR | 140 - 275 VAC |
Idle current (no load) | 0,3 A ≤ Idle current ≤ 1,5 A |
Permissible supply voltage range | Switching to battery power is done when the mains voltage is lower than 160 V (+- 5 V) or higher than 260 V (+- 5 V) |
Supply voltage frequency | 45 Hz ~ 65 Hz |
UPS output voltage frequency | 50 Hz (+- 0.5 Hz) |
Output voltage range | AVR mains voltage regulator: 204 - 240 V, UPS - battery: 230 V (+- 3%) |
Overload protection (battery power supply) | In the event of an overload of 110 % - 130 %, the power supply is disconnected after 30 seconds. If the overload is more than 130 %, the power supply shall be cut off immediately. |
Overload protection (mains supply) | The device warns of overload until the fuses are tripped. |
Permissible humidity | 10 % RH ~ 90 % RH |
Permissible operating temperature | 0 ~ 40 °C |
Dimensions | 230 mm x 145 mm x 180 mm |
Weight | 6,5 |
