Ubiquiti US-48-500W | Switch | UniFi, 48x RJ45 1000Mb/s PoE, 2x SFP+, 2x SFP, 500W

CODE: US-48-500W-EU / EAN: 0810354023132

Ubiquiti US-48-500W | Switch | UniFi, 48x RJ45 1000Mb/s PoE, 2x SFP+, 2x SFP, 500W

CODE: US-48-500W-EU / EAN: 0810354023132
668,65 USD without VAT (net)
Out of stock
10G support: Yes
Show more parameters

About product

Ubiquiti US-48-500W - managed switch with PoE+ and SFP+ 10Gbps support

The Ubiquiti UniFi® Switch US-48-500W is a fully managed gigabit switch. It provides high performance with 48 independent switching ports, 2 SFP ports and 2 SFP+ ports offering optical connectivity. The switch supports PoE+ 802.3af/at or 24V passive PoE with a total power of 500W.

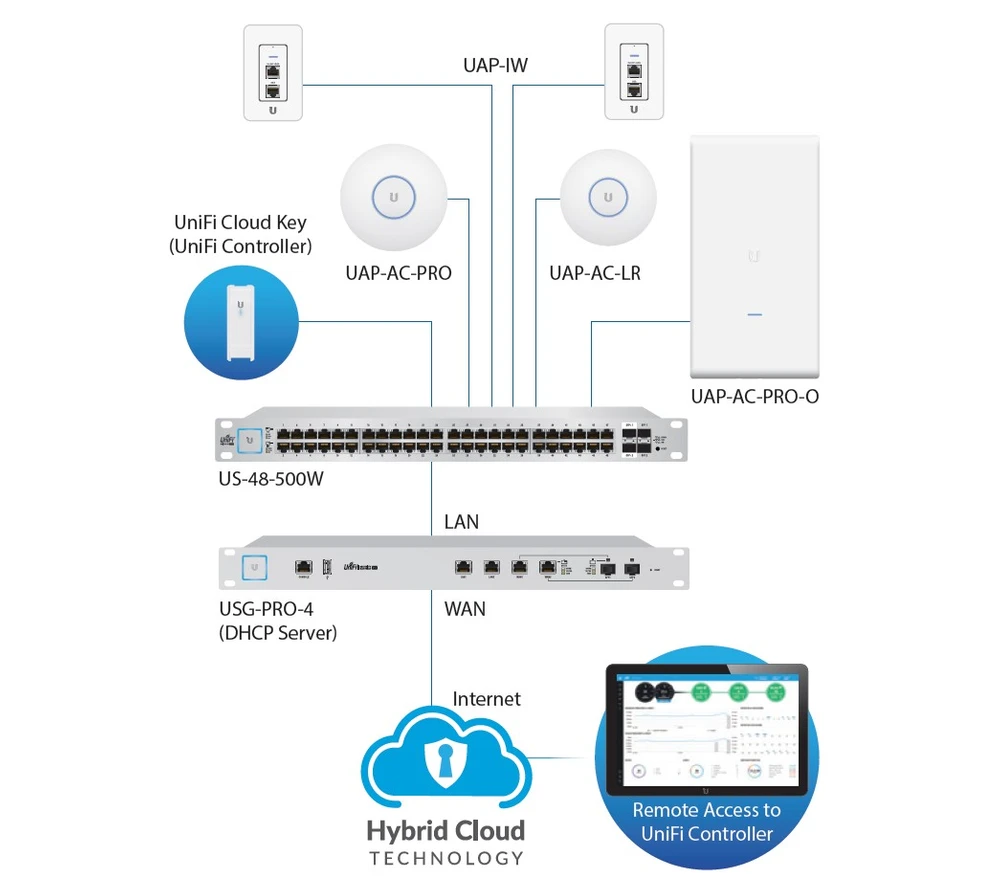

ubiquiti us-48-500 w sample network diagram

Special features US-48-500W

  • 48 x Gigabit RJ45 ports
  • 2 x SFP+ ports
  • 2 x SFP ports
  • 1 x Serial Console port
  • Non-blocking throughput: 70 Gbps
  • Switching capacity: 140 Gbps
  • Forwarding Rate: 104.16 Mpps
  • Max. energy consumption : 500W
  • POE+ IEEE 802.3at/af and 24V Passive PoE support
  • For mounting in a rack

Easy integration with UniFi Software-Defined Networking (SDN)

The US-48-500W UniFi® switch integrates seamlessly with the UniFi Software-Defined Networking (SDN) platform, creating a highly scalable, comprehensive system of network devices in multiple locations - all controlled from one interface.

Easy to mount in a rack

The US-48-500W UniFi switch can be easily mounted in a rack with the included mounting screws.

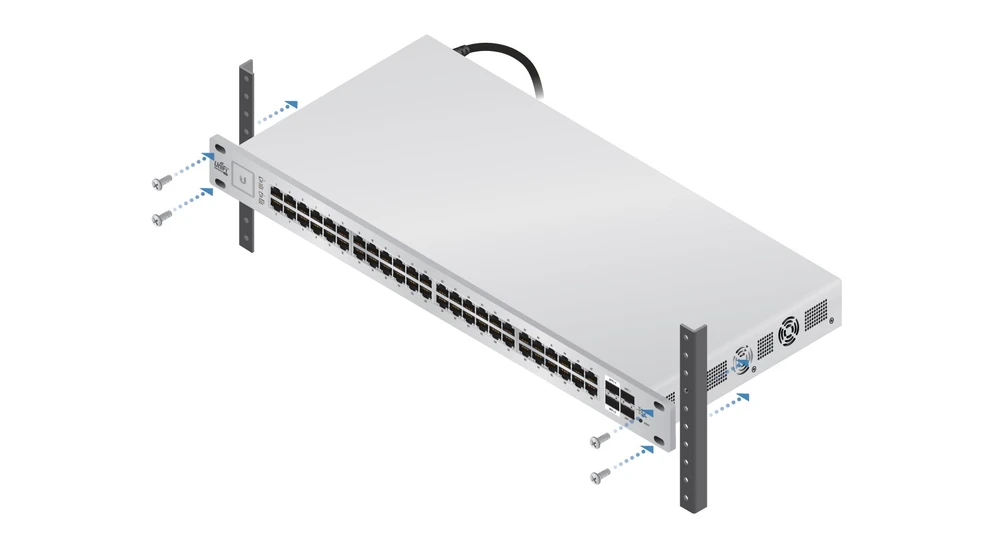

unifi switch us-48-500w rack mount

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 48x [10/100/1000M (RJ45)] , 2x SFP (1,25G), 2x [10G (SFP+)] ,
Number of PoE ports 48x [802.3af/at (1G)] , 48x [Passive PoE 24V (1G)] ,
10G support Yes
AC input frequency 50/60
AC input voltage 100 - 240
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Certification CE, FCC, IC
Console port RJ-45
Depth 374.6
Flow control support Yes
Form factor 1U
Forwarding rate 104.16
Gigabit Ethernet (copper) ports quantity 48
Harmonized System (HS) code 85176990
Height 44.5
LED indicators Yes
Management CLI - Command Line Interface, Dedicated application,
Networking standards IEEE 802.3af,IEEE 802.3at
Noise level 48
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -5 - 40
Power (W) 500
Power consumption (max) 500
Power over Ethernet (PoE) Yes
Product colour Silver
Rack mounting Yes
Reset button Yes
SFP module slots quantity 2
SFP+ module slots quantity 2
Switch layer L2
Switch type Managed
Switching capacity 140
Switching layer 2
Total Power over Ethernet (PoE) budget 34.2
Type of case Rack (1U), Metal,
Weight 5.3
Width 485

Specification

Basic technical parameters
Dimensions 485.04 x 44.45 x 347.6 mm(19.1 x 1.75 x 13.69")
Weight 5.3 kg (11.68 lb)
Non-blocking throughput 70 Gbps
Switching capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. energy consumption 500W
Supply voltage AC/DC 500W DC
LED lights RJ45 ports: PoE, Speed/Link/Activity
Ports SFP+/SFP: Speed/Link/Activity
Network Interfaces 48 ports 10/100/1000 MbpsRJ45 Ethernet
2 x port 1/10 Gbps SFP+ Ethernet
2 x 1 Gbps SFP Ethernet
Management Interface 1 port RJ45 Serial
2 Ethernet ports In/Out Band
Certificates CE, FCC, IC
Mounting in a rack Yes, 1U height
ESD/EMP protection Air: ±24 kV,
Contact: ±24 kV
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% non-condensing
Vibration resistance ETSI300-019-1.4 Standard
PoE
PoE interfaces POE+ IEEE 802.3af/at (Pins 1.2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+;7, 8-)
Max. PoE+ power for each port via PSE 34.2W
802.3at Voltage range 50–57V
Max. Passive PoE power per port 17W
24V Passive PoE voltage range 20-27V

Faq

How many SFP ports does it have?

It has: 2 ports SFP+,2 ports SFP

How many PoE ports does it have?

Number of PoE ports 48x [802.3af/at (1G)] , 48x [Passive PoE 24V (1G)] ,

What is the maximum energy consumption ?

Max. energy consumption : 500W
