A breakthrough in performance

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased performance.

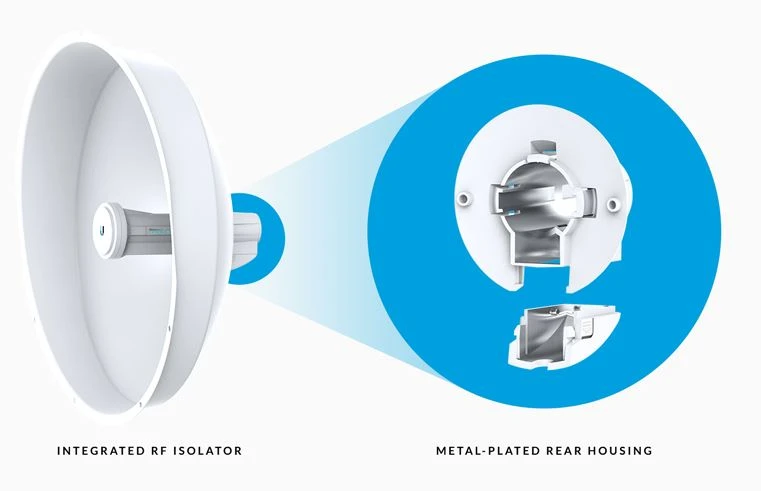

Innovative mechanical design

The integrated separator design improves RF isolation to filter out spatial interference, and the metal interior of the rear housing amplifies the radio frequency shielding.

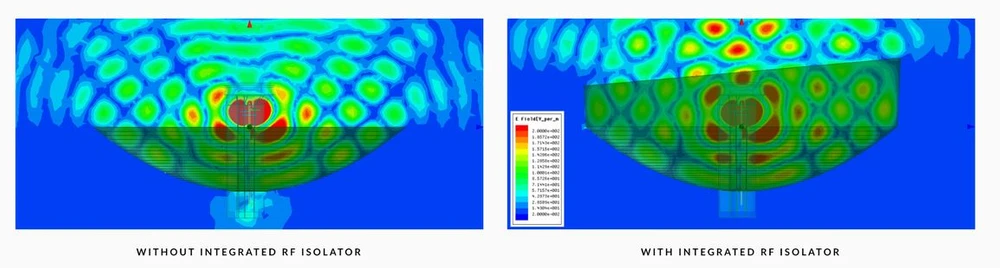

Excellent signal isolation

The integrated isolator design spatially filters out interference, so that PowerBeam ac ISO provides better signal quality. Both graphs near the field are displayed in watts and use a linear scale.

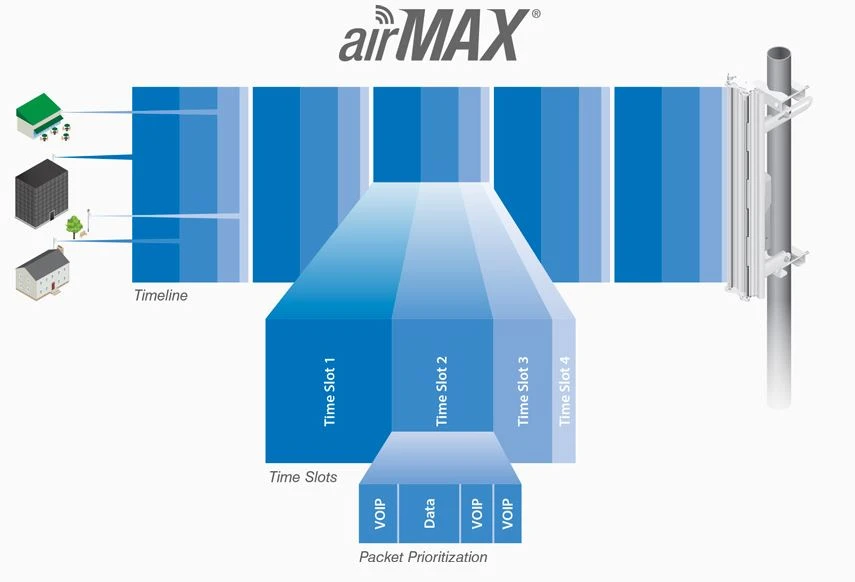

Excellent data processing

Ubiquiti's airMAX® software with a custom chipset significantly improves TDMA delay and network scalability. The custom processor provides hardware acceleration capabilities for the airMAX schedule to support high data rate and dense modulation used in airMAX ac technology.

Advanced software

Ubiquiti's airMAX® technology has been proven in millions of devices worldwide, demonstrating exceptional performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed multipoint networks.

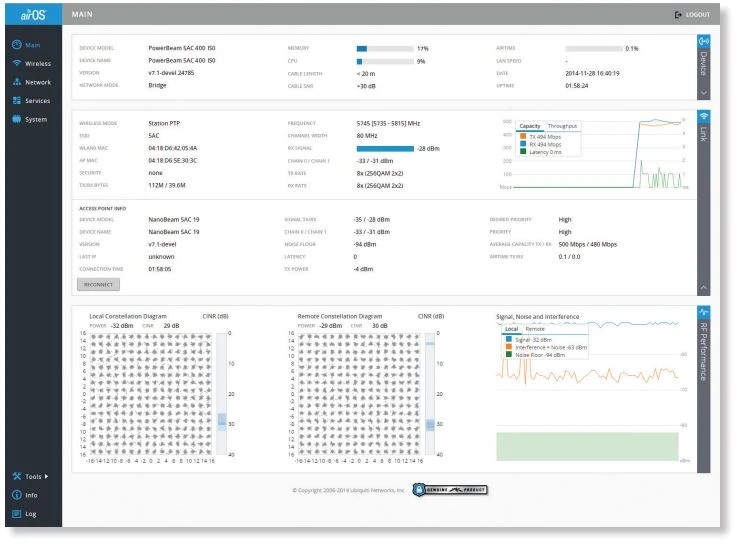

A revolutionary operating system

airOS® v7 has increased usability and its basic functions are:

• AirMAX ac protocol support
• Long-range PtP
• Selectable channel width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic channel selection

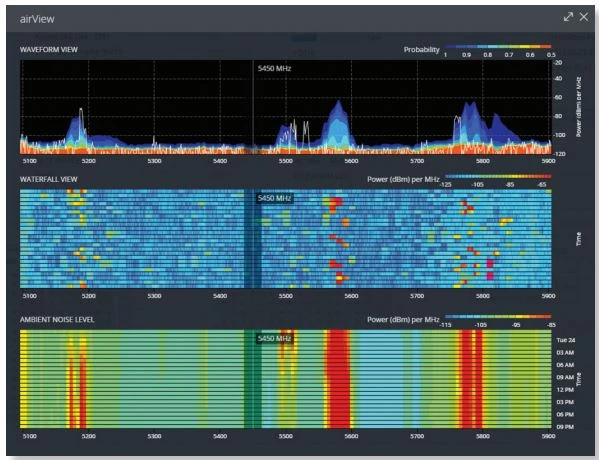

Radio spectrum analysis

airView enables identification of noise signatures and planning the network in such a way to minimize interference. airView performs the following functions:

• Constantly monitors interference levels
• Collects data in real time spectral views
• Helps optimize channel selection, network design

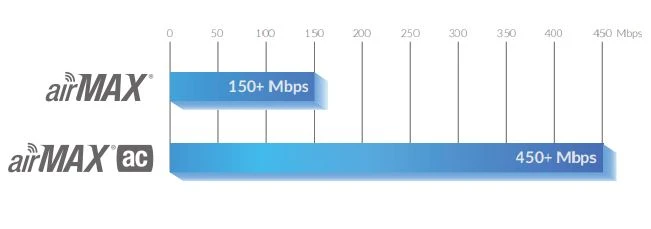

Breakthrough in data capacity

airMAX ac supports high data transmission speeds, which are as high as 450+ Mbps and require dense modulation: 256QAM has a significant increase over 64QAM, which is used in airMAX.
