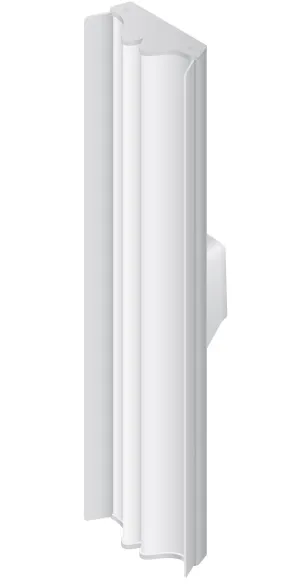

Ubiquiti AM-5AC21-60 | Sector antenna | airMAX, 5GHz, 21dBi

CODE: AM-5AC21-60 / EAN: 0810354021428

Ubiquiti AM-5AC21-60 | Sector antenna | airMAX, 5GHz, 21dBi

CODE: AM-5AC21-60 / EAN: 0810354021428
172,40 USD without VAT (net)
Out of stock
Antenna frequency: 5 GHz
Antenna type: Sector
Energy gain: 21dBi - 30dBi
Antenna gain level (max): 21
Show more parameters

About product

Breakthrough transmission performance

The next generation of 2x2 MIMO sector antennas from Ubiquiti Inc., airMAX ac sector antennas have better scalability, interference isolation and beam performance. For best performance, connect the antenna with a Rocket radio. Antennas are also compatible with RocketM5 models. However, AC operation requires Rocket5ac. The Ubiquiti antenna operates at 5GHz which allows for fast communication.

Immunity against interference

Sector antennas are very resistant to interference. The innovative deflector design with lowered side and back leaves reject interference from other transmitters in the vicinity potentially on the same tower.

High performance wireless transmission

The signal-to-noise ratio (S/N or SNR) has been improved, it is possible to use higher order modulation, for example 256QAM instead of 16QAM. This increases the number of bits per second for a band with constant data rate.

ubiquiti airmax SECTOR ANTENNA 5GHZ AC 21DBI 60DEG

Rugged construction

Due to its innovative design, AirMax Sector ac provides higher profit and high performance. The airMAX ac antennas are designed for outdoor applications. Antennas are designed to reject interference and provide increased scalability, higher gain and high beam performance in PTMP networks. They use AirMax technology to provide high performance and power.

ubiquiti networks sector antenna

Easy Plug and Play installation

Every Ubiquiti airMAX ac sector antenna has a built-in Rocket handle, so no tools are needed to install the Rocket BaseStation.

ANTENNA SECTOR 5GHZ airmax ac sector

Specification

Features / filters
Antenna frequency 5 GHz
Antenna type Sector
Energy gain 21dBi - 30dBi
Antenna gain level (max) 21
Application Outdoor
Compatible with brand Ubiquiti
Cross polarization isolation >25 dB
Depth 78
Electric deviation 2°
Frequency band 5.1 - 5.8
Harmonized System (HS) code 85177100
Height 750
Horizontal beam width 60
Horizontal beamwidth 60°
Mounting Wall
Polarization Double linear, Dual polarization,
Product colour White
Quantity per pack 1
Vertical beam width 60
Vertical beamwidth 60°
Voltage Standing Wave Ratio (VSWR) 1.5:1
VSWR 1.5:1
Weight 4.8
Width 173

Basic technical parameters
Dimensions 750 × 173 × 78 mm
Weight 4.8 kg
Frequency of operation 5.10 - 5.85 GHz
Antenna gain 21 dBi
Horizontal radiation angle 60° (6 dBi)
Vertical radiation angle 60° (6 dBi)
Electrical radiation angle 4°
Tilt angle 2°
Maximum VSWR 1.5:1
Wind resistance 200 km/h
Wind load 391 N @ 200 km/h
Polarisation Horizontal and vertical (dual)
Separation between polarization 25 dB Min.
ETSI EN 302 326 DN2
Installation equipment Pole bracket, RocketM mounting brackets, waterproof coaxial cable included

Support

Quick start guide Download
Datasheet Download

Faq

Installation of equipment

1. Attach the Weatherproof RF Cables to the connectors labeled Chain 0 and Chain 1 on the Rocket.



2. Attach the Rocket to the Rocket Mount.

a. Align the mounting tabs on the back of the Rocket with
the four mounting slots on the mount.

b. Slide the Rocket down until it locks into place.




3. Connect the other ends of the Weatherproof RF Cables to the RF Connectors on the antenna.



4. Slide the Protective Shroud down over the Rocket until it locks onto the Rocket Mount.



5. Attach the U-Brackets to the antenna:

a. Secure the Slotted U-Bracket to the upper Mounting Lugs of the antenna using two Serrated Flange Nuts.

b. Secure the other U-Bracket to the lower Mounting Lugs of the antenna using two Serrated Flange Nuts.




6. Insert two Carriage Bolts into each Pole Bracket.



7. Attach each Pole Bracket to each U-Bracket using twoSerrated Flange Bolts. Hand-tighten the bolts.



8. To mount the antenna to the pole, slide a Pole Clamp over each pair of Carriage Bolts. Secure each Pole Clamp with two Serrated Flange Nuts.



9. The antenna has an electrical downtilt of 2°. To further adjust the elevation angle:

a. Loosen the four Serrated Flange Bolts on the U-Brackets and the two Serrated Flange Nuts on the upper Pole Clamp

b. Slide the antenna to the desired tilt. (The brackets may slide along the pole, depending on the angle of the elevation tilt.)

c. Tighten all bolts and nuts to approximately 25 N-m.



Each Ubiquiti airMAX ac sector antenna has a mounting bracket ?

Yes.
