TP-Link TL-WPA4220 KIT | Power Line | N300, 2,4GHz, AV600, 2x RJ45 100Mb/s, Two adapters

CODE: TL-WPA4220KIT / EAN: 6935364032258

TP-Link TL-WPA4220 KIT | Power Line | N300, 2,4GHz, AV600, 2x RJ45 100Mb/s, Two adapters

CODE: TL-WPA4220KIT / EAN: 6935364032258
48,75 USD without VAT (net)
Out of stock
Maximum wireless transmission speed: 300 Mb/s
Number of LAN ports: 2x 10/100BaseTX (RJ45)
Wireless network standards: IEEE 802.11b,  IEEE 802.11g,  IEEE 802.11n,
Antenna type: Internal
Show more parameters

About product

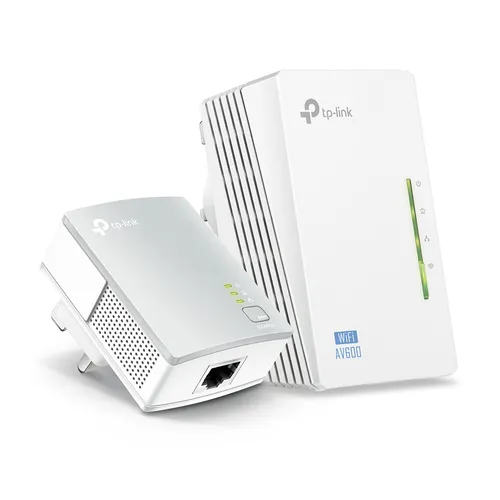

A set of TP-Link network transmitters

TL-WPA4220KIT is a set of network transmitters using our home power supply network for fast data transfer without pulling new wires. The device has Plug and Play functions and does not require configuration, just plug it into a power outlet. The transmission speed of the transmitter is 500 Mb/s, which enables e.g. smooth transmission of video games or UHD quality movies.

Stable wireless connections

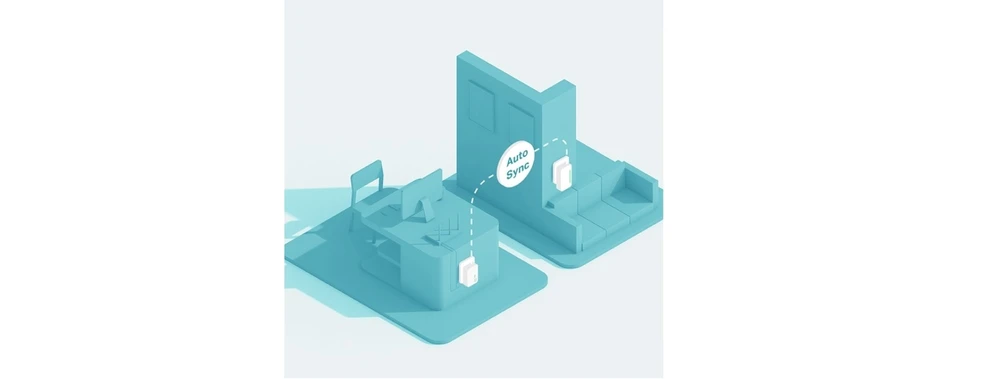

Using the Wi-Fi Clone button, you will automatically copy the name and password of the home router's wireless network. Then connect the device at the destination point and from now on you can use the network access, anywhere in the house.

Better performance

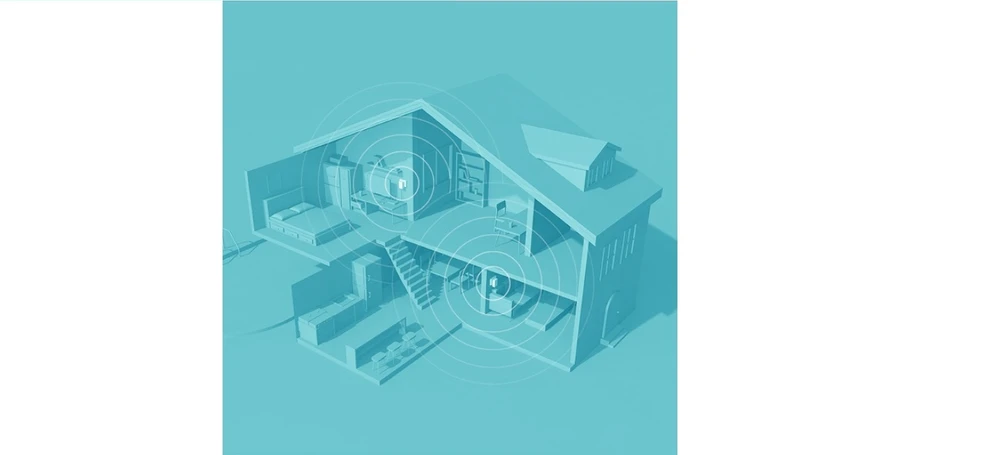

Now you can extend the range of your wireless network and enjoy network access in the basement, attic or garage. Simply connect your device to the location of your choice and the network signal will be distributed over the electrical cables that are found in every home.

One network across the house

Thanks to TL-WPA4220KIT there is no longer any need to buy several Wi-Fi routers and install cables to them, and the TP-Link tpPLC application, available for devices with iOS and Android, will help you configure the transmitter according to your needs.

Specification

Features / filters
Maximum wireless transmission speed 300 Mb/s
Number of LAN ports 2x 10/100BaseTX (RJ45)
Wireless network standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Antenna type Internal
Built-in power socket No
Cables included LAN (RJ-45)
Certification CE, FCC
Depth 54
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10,100
Ethernet LAN interface type Fast Ethernet
Height 69.5
LED indicators Yes
Linux operating systems supported Yes
Mac compatibility Yes
Mac operating systems supported macOS
Maximum data transfer rate 300
Maximum operating distance 300
Modulation OFDM
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Package depth 136
Package height 100
Package weight 420
Package width 190
Power consumption (standby) 4.6
Power consumption (typical) 7.2
PowerLine standard HomePlug AV
Product colour White
Quantity per pack 2
Quick installation guide Yes
Security algorithms 128-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Storage relative humidity (H-H) 5 - 90
Storage temperature (T-T) -40 - 70
Sustainability certificates RoHS
Throughput through the electric network 500Mb/s
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Wi-Fi Yes
Wi-Fi standards 802.11b,802.11g,Wi-Fi 4 (802.11n)
Width 94
Windows operating systems supported Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7
WLAN data transfer rates supported 11,54,300

Equipment features
Plug type EU
Standards and protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Ports 2 Ethernet 10/100 Mbps ports
Buttons Pair, reset, Wi-Fi/Wi-Fi Clone
Power consumption Maximum: 7,608 W (220 V/50 Hz)
On average: 7.216 W (220 V/50 Hz)
In standby mode: 4,610 W (220 V/50 Hz)
LED PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions (S x G x W) 94 x 54 x 40 mm (3.7 x 2.1 x 1.6 inches)
Reach 300 metres through the electricity grid within the building
Wireless transference properties
Frequency of operation 2.4-2.4835 GHz
Transmission speed 11n: up to 300 Mb/s (dynamic)
11g: up to 54 Mb/s (dynamic)
11b: Up to 11 Mb/s (dynamic)
Receiver sensitivity 270M: -68 dBm@10% PER
130M: -68 dBm@10% PER
108M: -68 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER
Wireless transmission security 64/128-bit WEP/WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Advanced features Wi-Fi on/off, WMM, wireless statistics
Transmission power CE: < 20 dBm (2.4 GHz)
FCC: < 30 dBm
Transmission encryption The electricity grid:
128-bit AES encryption
Wireless:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Other
Certificates CE, FCC, RoHS
Package contents TL-WPA4220
TL-PA4010
Ethernet cable (2m)
CD
Quick Installation Guide
System requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Working environment Permissible operating temperature: 0℃~40℃ (32℉~104℉)
Permissible storage temperature: -40℃~70℃ (-40℉~158℉)
Permissible air humidity: 10%~90%, non-condensing
Permissible storage humidity: 5%~90%, non-condensing

Support

Downloads:

Installation guide Download
