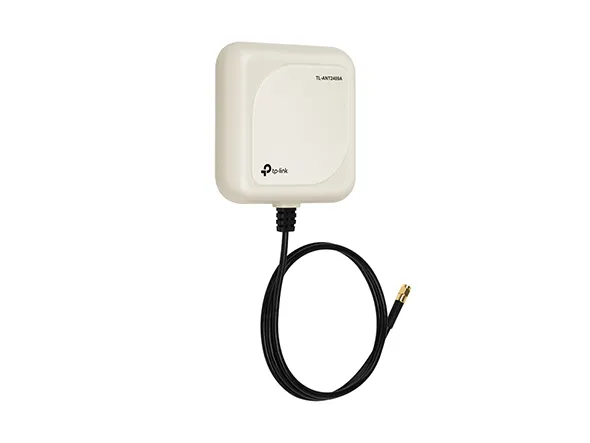

TP-Link TL-ANT2409A | Directional antenna | 2,4GHz, 9dBi, RP-SMA

CODE: TP-LINK TL-ANT2409A / EAN: 6935364052034

TP-Link TL-ANT2409A | Directional antenna | 2,4GHz, 9dBi, RP-SMA

CODE: TP-LINK TL-ANT2409A / EAN: 6935364052034
17,02 USD without VAT (net)
Out of stock
Antenna frequency: 2.4 GHz
Energy gain: <10 dBi
Antenna gain level (max): 9
Antenna type: Directional,  Directional antenna,
Show more parameters

About product

Omnidirectional desktop antenna TP-Link TL-ANT2409A

The TL-ANT2409A directional antenna, with an energy gain of 9 dBi, uses the 2.4 GHz frequency band to extend the range of wireless transmission and improve performance. The antenna is equipped with RP-SMA female connector, so it can work with most wireless devices. It guarantees a significant increase in Wi-Fi coverage and requires no configuration. Installation of the device is extremely easy. The antenna works with most of the wireless devices available on the market, equipped with attachable, external antennas (access points, routers, bridges, network cards).

Features of the TP-Link TL-ANT2409A 9 dBi directional antenna:

  • 9 dBi antenna gain provides long-distance point-to-point connections inside and outside buildings
  • The CFD-200 cable is 100 cm long for convenient installation and low signal losses
  • RP-SMA female connector allows to connect the antenna to most access points and wireless routers
  • The included mounting elements facilitate simple installation

Specification

Features / filters
Antenna frequency 2.4 GHz
Energy gain <10 dBi
Antenna gain level (max) 9
Antenna type Directional, Directional antenna,
Application Indoor
Connector type RP-SMA
Frequency band 2.4
Horizontal beam width 60
Impedance 50
Operating temperature (T-T) -20 - 65
Polarization Vertical polarization
Product colour Black, White
Storage temperature (T-T) -30 - 75
Vertical beam width 76

Antenna
Frequency of operation 2.4 GHz
Energy gain 9 dBi
VSWR (max.) 1.5 : 1
HPBW/H (°) 60
HPBW/V (°) 76
Polarisation Linear, vertical
Type Direction
Connection type Female RP-SMA
Cable length CFD-200; 100 cm
Installation For pole/wall mounting
Application Outdoors
Approximate range at 1/ 11/ 54 Mbps transmission speed 1.77 km/ 1 km/ 140 m
Operating temperature -20℃ ~ 65℃
Storage temperature -30℃ ~ 75℃
Optional accessories TL-ANT24EC3S TL-ANT24EC5S
Package contents Directional, panel antenna, 9 dBi
Mounting elements
Operating instructions

Support

Downloads:

Operating instructions (ENG) Download
