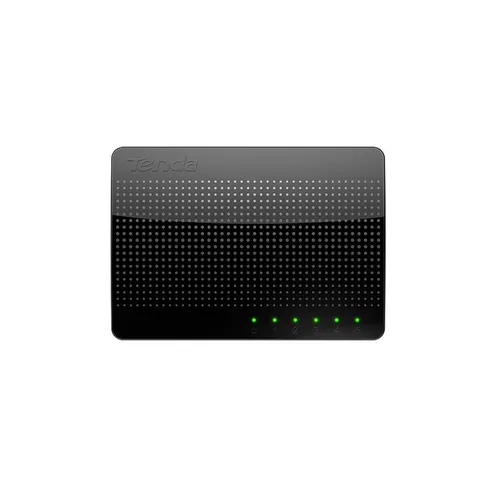

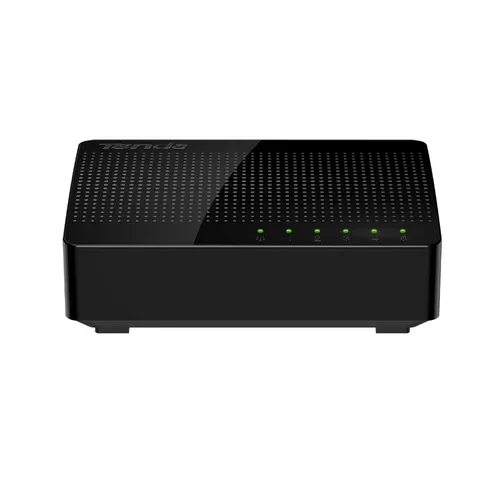

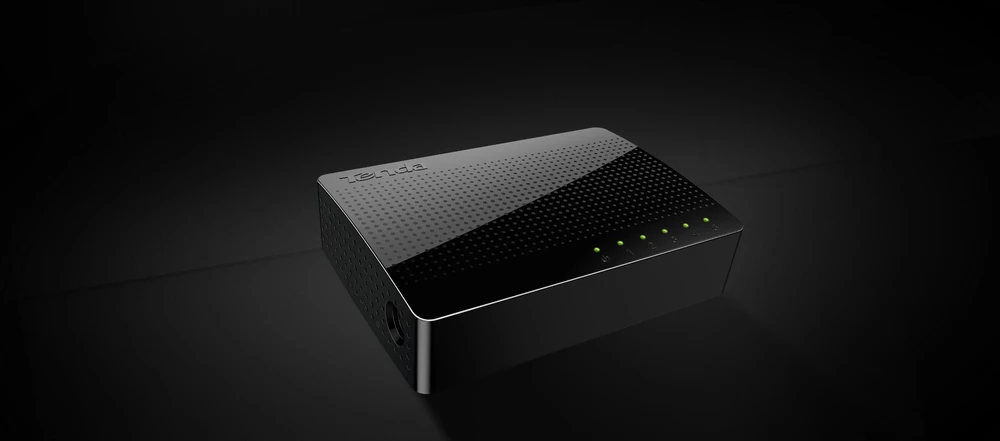

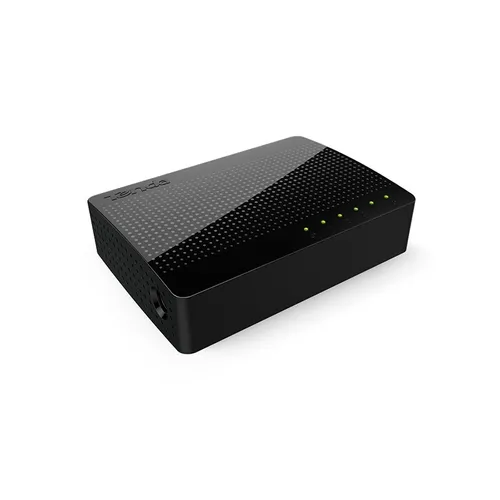

The Tenda SG105 is an inexpensive and efficient switch designed for smaller networks in businesses and households where high transmission speeds are required. It is ideal for connecting NAS servers, game consoles, multimedia TVs and computers. The router has a total of 5 Gigabit ports with a switching speed of 10 GB/s, so you can transfer large amounts of data without long waiting times. The switch automatically detects the type of cabling and the way of communication, and the modern design of the equipment is characterized by significantly reduced power consumption (maximum 2.5W), which translates into lower electricity bills. The device fully supports IEEE 802.3, 802.3u, 802.3ab standards.

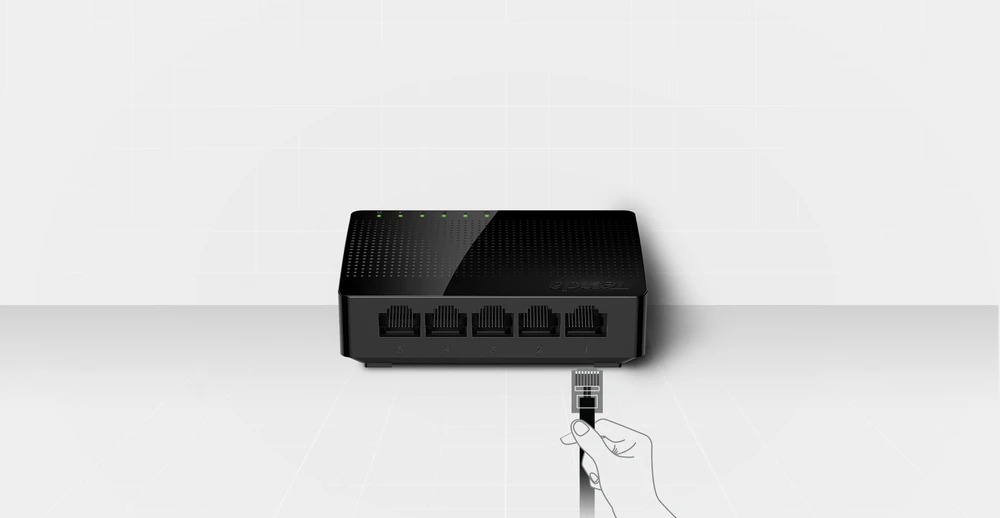

The Tenda SG105 is fully automated and does not require any configuration, the network is accessible by connecting an Ethernet cable in an instant. Whether you are a technology enthusiast or a novice user, the Tenda switch is very easy and intuitive to configure without time-consuming operations.

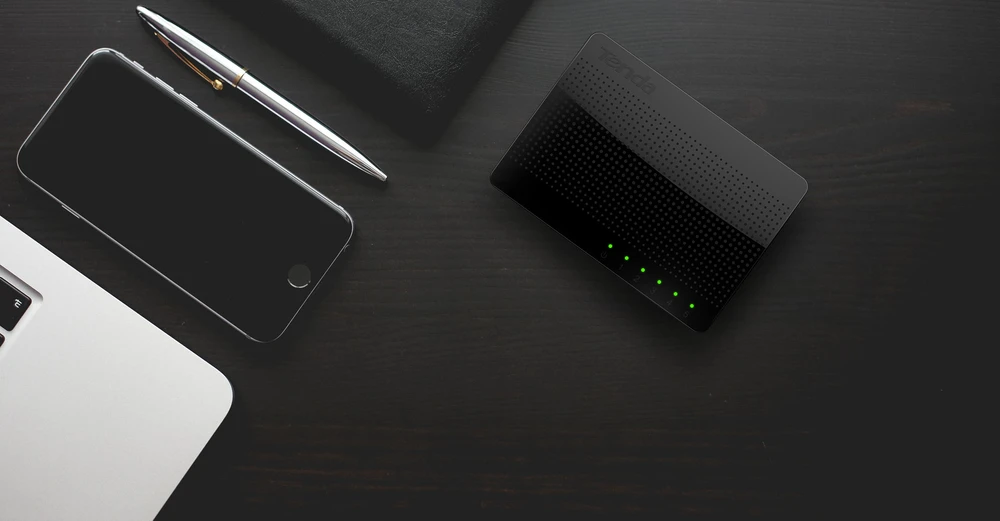

The SG105 switch is designed for home use and is nice and compact, so it doesn't take up a lot of desk space. With a desk or wall mount design, the SG105 can be placed anywhere and will fit perfectly into any décor in your home.
Technical data | |
Standard&Protocol | IEEE 802.3/u/x/ab |
Interface | 5* 10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX |
Transmission Media | 10BASE-T: Cat.3 or Above 100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above |
Forwarding Rate | 10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
LED indicator | 5*10/100/1000Mbps Link/Act LEDs 1*power LED |
Features | Store-and-forward mechanism Auto-learning and auto-aging MAC address Switching capacity of 10Gbps |
Power Input | 100-240V~50/60Hz |
Power Output | 5V/0.6A |
Dimension | 96*66*23mm |
