Teltonika TFT100 | GPS tracker | e-scooter tracket plus

CODE: TELTONIKA TFT100 / EAN: 4251877270485

Teltonika TFT100 | GPS tracker | e-scooter tracket plus

CODE: TELTONIKA TFT100 / EAN: 4251877270485
59,11 USD without VAT (net)
Out of stock
Battery capacity: 1800
Battery life (max): 12
Battery technology: Lithium-Ion (Li-Ion)
Battery type: Rechargeable
Show more parameters

About product

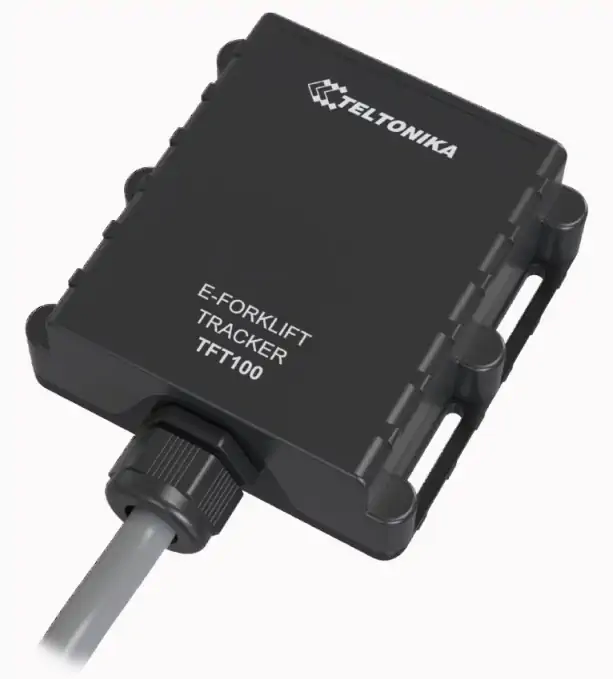

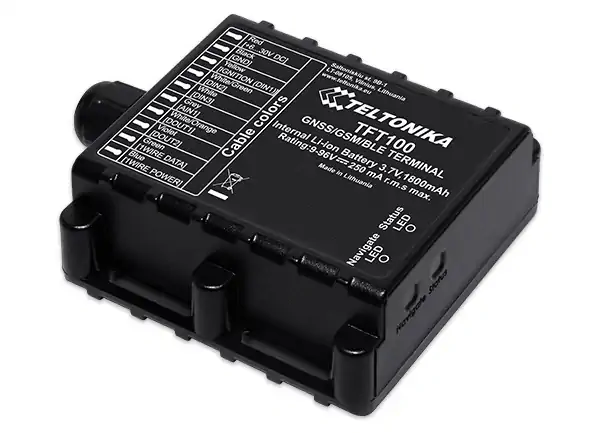

Teltonika GPS Tracker TFT100

Small, professional and waterproof Teltonika TFT100 tracker for forklifts, electric mopeds and electric scooters with internal high-gain GNSS/GSM antenna, Bluetooth, integrated high-capacity lithium-ion battery and 9-96V supply voltage range.

TELTONIKA TFT100 E-SCOOTER TRACKER PLUS

Applications for Teltonika TFT100

In recent years, the digitization of industry has enabled companies to transform their forklifts, telehandlers and scissor lifts into "smart machines" - IoT devices. Connected to these machines, smart equipment can improve a company's productivity by reducing or even eliminating costs caused by accidents, downtime, and even theft. There is a lot of discussion these days about how to increase productivity and save time when operating forklifts. System alerts and reports, performance management and control, preventive maintenance and time monitoring are some of the key factors when it comes to optimizing forklift management. Teltonika TFT100 GPS terminal is the solution for these aspects. It is an intelligent equipment management device that retrieves the necessary data from the device (including CAN data) and increases the efficiency of fleet management.

TELTONIKA TFT100 E-SCOOTER TRACKER PLUS

Features of the Teltonika TFT100

  • Support CAN, RS232, RS485, UART depending on version selected
  • Convenient over-the-air (OTA) updates via intuitive apps
  • 1-Wire interface for monitoring temperature data and RFID/iButton tags
  • Wide power supply range for various integrations (10-97V)
  • Bluetooth for external devices and sensors with low power consumption
  • Protected against water and dust for outdoor installation (IP67)

Specification

Features / filters
Battery capacity 1800
Battery life (max) 12
Battery technology Lithium-Ion (Li-Ion)
Battery type Rechargeable
Battery voltage 3.7
Bluetooth Yes
Built-in display No
Built-in memory Yes
Built-in memory capacity 0.128
Certification CE/RED, EAC, E-Mark, Anatel, UKCA, Ukrainian UCRF, RoHS, REACH, E-Mark, IP67
Depth 72.5
Electronic compass No
GSM bands supported 800,900,1800,1900
Height 27.3
Housing material Plastic
International Protection (IP) code IP67
LED indicators Status
Memory card slot(s) No
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -20 - 75
Product colour Black
Protection features Dust resistant
Purpose Motorcycle
SIM card capability Single SIM
SIM card slot Yes
Storage relative humidity (H-H) 5 - 95
Storage temperature (T-T) -20 - 75
USB connector type Micro-USB
USB port Yes
USB version 2.0
Weight 169
Width 73

Basic general data
Manufacturer Teltonika
Model TFT100
Type GPS locator
Equipment features
Technology GSM/GPRS/GNSS/Bluetooth (4.0 LE)
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBm
Accuracy < 3 m
GNSS receiver start-up times Hot < 1 s, Warm < 25 s, Cold < 35 s
Cellular technology GSM
2G bands Quad-band GSM 850 / 900 / 1800 / 1900 MHz, GPRS Multi-Slot Class 12 (up to 440 kbps)
GPRS Mobile Station Class B
Data handling SMS (text/data)
Power supply 10-97 V DC
Internal batteries Internal backup battery 1800 mAh Li-Ion 3.7 V (6.66 Wh)
Interfaces
Modifications CAN modification - 1x CAN-BUS (CAN H - CAN L), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2 x status LEDs.
RS485 modification - 1x RS485 (RS485-A - RS485-B), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2 x status LEDs
RS232 modification - 1x RS232 (RS232-IN - RS232-OUT), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2 x status LEDs
UART modification - 1x UART (UART-RX - UART-TX), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2 x status LEDs
GNSS antenna Internal high-gain antenna
GSM antenna Internal high gain antenna
Sensors Accelerometer
Interface 2.0 Micro-USB, Micro-SIM with eSIM capability, 128 MB internal flash memory (220'000 records)
Software
Configuration and firmware upgrade FOTA WEB (cloud-based solution), Teltonika Configurator (USB, Bluetooth)
Scenarios Eco/green driving, speeding, jamming, excessive idling, falling, towing detection, collision detection, automatic geofence, manual geofence, travel, immobilizer, iButton, DOUT control by connection, DOUT control by ignition
Sleep modes GPS sleep, Online deep sleep, Deep sleep, Ultra deep sleep
Protocols UDP/TCP/SMS
Sending data Primary, duplicate and backup server
Security Configuration password, SMS login and password, list of authorized GSM numbers
Time synchronization GNSS, NITZ, NTP
Supported peripherals Temperature and humidity sensor, Supports universal BLE sensors
Physical specifications
Dimensions 72.5 mm x 73 mm x 27.3 mm
Protection rating IP67
Certification and approvals
Legal regulations CE(RED), EAC, RoHS, REACH, E-Mark, IP67

Support

Files to download

Data sheet Download
Quick Manual Download

Faq

How do I insert a SIM card in the Teltonika TFT100?
