Mimosa N5-X25 | Modular Horn for C5x | 2-pack, 25dBi, 8st, 4,9-6,4GHz, 429mm

CODE: N5-X25 - 2 PACK / EAN: 5907207225814

Mimosa N5-X25 | Modular Horn for C5x | 2-pack, 25dBi, 8st, 4,9-6,4GHz, 429mm

CODE: N5-X25 - 2 PACK / EAN: 5907207225814
90,00 USD without VAT (net)
Out of stock
Antenna frequency: 4.9-6.4 GHz,  5 GHz,  6 GHz,
Antenna type: Directional
Energy gain: 21dBi - 30dBi
C5x antenna gain: 25dBi
Show more parameters
C5x antenna gain:
12dBi
16dBi
20dBi
25dBi

About product

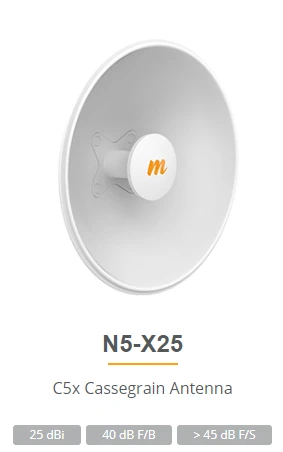

Modular antenna N5-X25 for Mimosa C5x radio

N5-X25

N5-X25 is a modular antenna designed for MIMOSA C5x radio. It offers 25 dBi power gain. Dual 45-degree diagonal polarization, with 8-degree beam width (horizontal and vertical).

Antenna characteristics and frequency gain

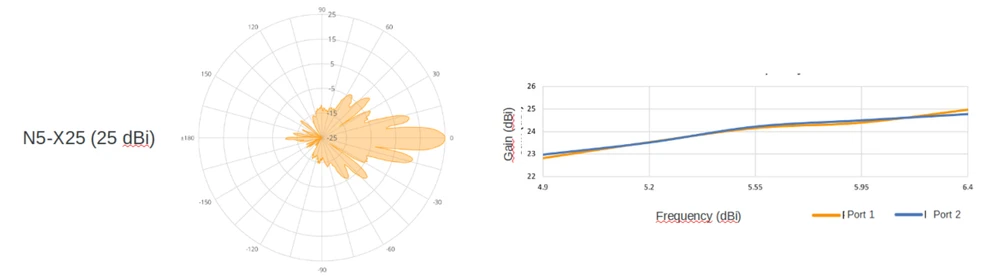

N5-X25 antenna pattern

Specification

Features / filters
Antenna frequency 4.9-6.4 GHz, 5 GHz, 6 GHz,
Antenna type Directional
Energy gain 21dBi - 30dBi
C5x antenna gain 25dBi
Compatible with brand Mimosa
Front-to-back ratio 40 dB
Horizontal beamwidth 8°
Polarization Double diagonal 45°
Vertical beamwidth 8°

N5-X20
Profit 20 dBi
Polarisation Dual 45º diagonal line
Beam width Symmetrical 8º
FTB (Principal to Reverse Radiation Ratio) >35 dB
FTS (ratio of main to sidereal radiation) >37 dB
Weight 0.77 kg
Dimensions Diameter: 270 mm; Depth: 83 mm
90,00 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
