MikroTik GrooveA 52 | CPE | RBGrooveA52HPn, 2,4GHz, 5GHz, 1x RJ45 100Mb/s, Omni antenna 6dBi

CODE: RBGROOVEA-52HPN / EAN: 4752224001412

MikroTik GrooveA 52 | CPE | RBGrooveA52HPn, 2,4GHz, 5GHz, 1x RJ45 100Mb/s, Omni antenna 6dBi

CODE: RBGROOVEA-52HPN / EAN: 4752224001412
63,57 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
2.4 GHz: Yes
5 GHz: Yes
AC adapter included: Yes
AC input voltage: 9 - 30
Show more parameters

About product

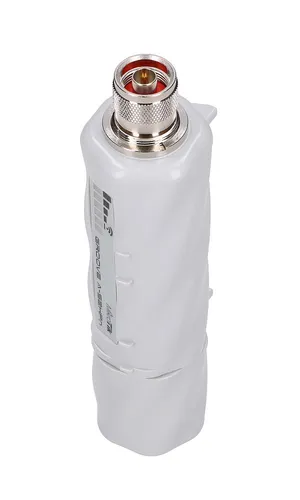

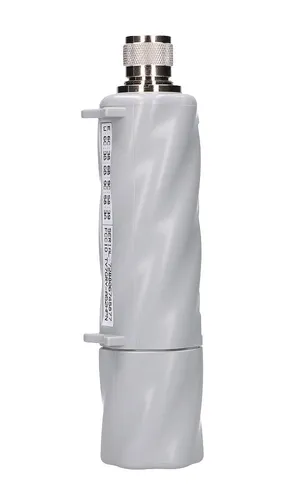

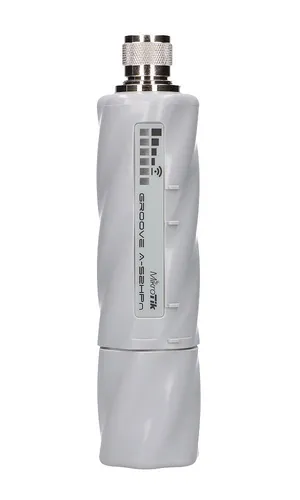

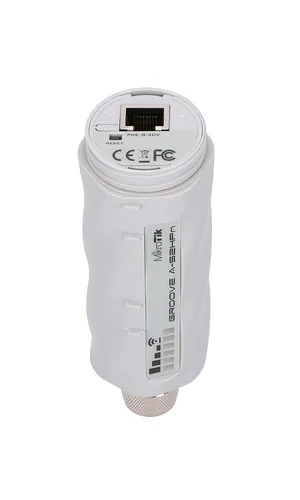

Mikrotik Routerboard RBGrooveA52HPn

Mikrotik Routerboard RBGrooveA52HPn - fully functional wireless RouterBOARD powered by RouterOS level 4 firmware. Weather resistant, durable and ready to use. It has one 1x rj45 100mbs Ethernet port with PoE support and built-in wireless radio. The software has a choice of 2.4GHz or 5GHz wireless mode and high output power 500mW . Mikrotik Groove in 802.11a/b/g/n standard and this device also supports AP ( Access Point ) mode.

1

Nv2 TDMA technology

Thanks to Nv2 TDMA technology, a total throughput of up to 125Mbits is possible. It has a built-in N-male connector and mast mounting points (pointed access), so you can connect it directly to the antenna or use standard antenna cable. LED indicators facilitate installation and alignment.

2

The device has two frequency modes

  • RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz. This lock cannot be removed.
  • RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz (specific frequency range may be limited by national regulations).
3

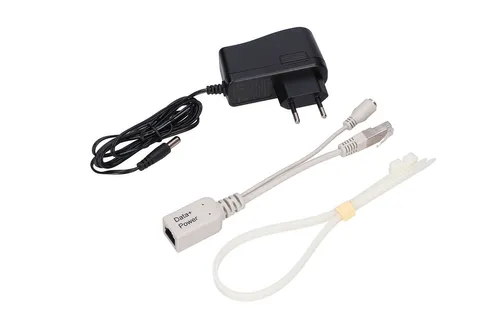

Mikrotik Routerboard RBGrooveA52HPn - kit contents:

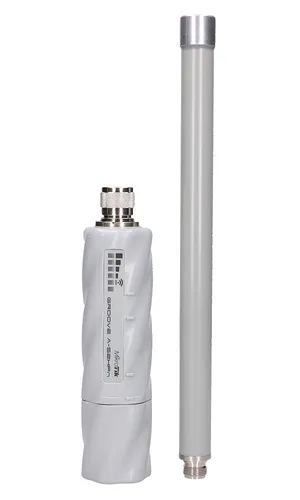

  • Omni-directional antenna 2GHz 6dBi / 5GHz 8dBi Omni
  • RouterBoard
  • 24V power supply
  • PoE adapter
  • Fixing bands
5

Key features :

  • Can be used as a client or base station
  • Possibility to create efficient bridges in combination with any antenna.
  • Operation in the 2.4GHz or 5GHz band
  • PoE power supply
  • Operating temperature -20 to +70 °C
  • Supports AP mode
  • LED signal indicators facilitate installation
  • Maximum power consumption 5W

Specification

Features / filters
2.4 GHz Yes
5 GHz Yes
AC adapter included Yes
AC input voltage 9 - 30
Antenna features Integrated antenna
Antenna gain level (max) 6
Built-in processor Yes
Depth 44
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100
Harmonized System (HS) code 85176990
Height 44
Internal No
Internal memory 64
LED indicators Yes
Maximum data transfer rate 150
Mounting kit Yes
Power consumption (max) 4.56
Power over Ethernet (PoE) Yes
Processor frequency 600
Processor model Qualcomm Atheros AR9342
Product colour Grey
Reset button Yes
Weight 193
Width 177
Wireless standard a/b/g/n

Basic technical parameters

Product code RBGrooveA-52HPn
Architecture MIPSBE
Processor AR9342
Number of processor cores 1
Processor Clocking 600 MHz
Memory RAM 64 MB
Number of LAN ports 1
Gigabit LAN port(s) No
Tested ambient temperature From -40 ° C to 70 ° C
Total weight 193g
Dimensions 177 x 44 x 44 mm
Operating system RouterOS
PoE power supply Yes
SFP socket No
Platform licence Level 4
Maximum power consumption 6W
PoE Passive PoE
PoE at the input Voltage 9–30 V .
PCB temperature monitor Yes
LEDs 5 wireless signal LEDs
ethernet activity LED
Antenna cables None
wifi antennas 1x

Support

Downloads:

Brochure Download
Short guide Download

Faq

What is RouterBOARD ?

RouterBOARD is a hardware platform from MikroTik, which is a line of routers with RouterOS operating system. Different RouterBOARD options provide different application scenarios, from running wireless access points and managed network switches to QoS firewalls.

Is it possible to use a different antenna ?

Yes
