Incredible performance
500+ Mbps throughput - the result of a powerful hardware platform with an 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9557 CPU (720 MHz), a QCA 9882 radio and 128 MBytes of RAM/Flash memory the LigoDLB PRO ac series access points are an ideal solution for resource demanding installations. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 48V Gigabit Ethernet port (802.3af) allows utilizing the full capacity of the base-station. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks with the latest technologies over time.
Model name | Coverage recommendation |
LigoDLB PRO 5-90-17ac | 7 km (4.3 mi) |
LigoDLB PRO 5-90-20ac | 12 km (7.5 mi) |
|
|
Wireless
- WLAN standard IEEE 802.11 a/n/ac, iPoll 2 & 3
- Radio mode MIMO 2x2
- Radio frequency band 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
- Transmit power Up to 30 dBm (country dependent)
- Channel size 5,10, 20, 40, 80 MHz
- Modulation schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
- Data rates
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
- Error correction FEC, LDPC
- Duplexing scheme Time division duplex
Antenna

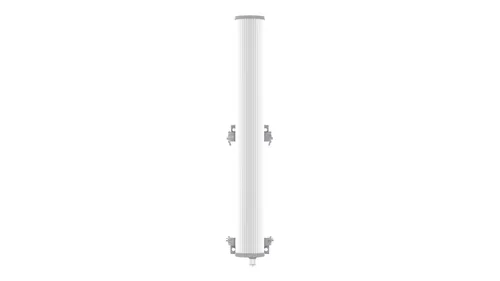

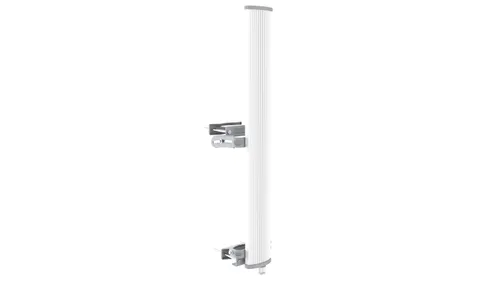

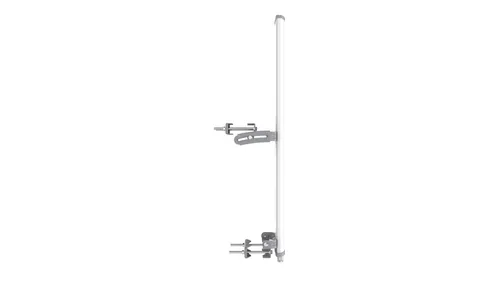

Type Integrated dual-polarized 90 degree sector antenna
LigoDLB PRO 5-90-17ac : Gain 17 dBi
LigoDLB PRO 5-90-20ac : Gain 20 dBi
Wired
Interface 10/100/1000 Base-T, RJ45 (802.3af)
Physical
Dimensions
LigoDLB PRO 5-90-17ac : 574 mm (22.6 ‘’), 114 mm (4.5 ‘’), 46 mm (1.8 ‘’)
LigoDLB PRO 5-90-20ac : 942 mm (37.1 ‘’), 114 mm (4.5 ‘’), 46 mm (1.8 ‘’)
Weight 3000 g (6.6 lb) LigoDLB PRO 5-90-17ac
Weight 3600 g (7.94 lb) LigoDLB PRO 5-90-20ac

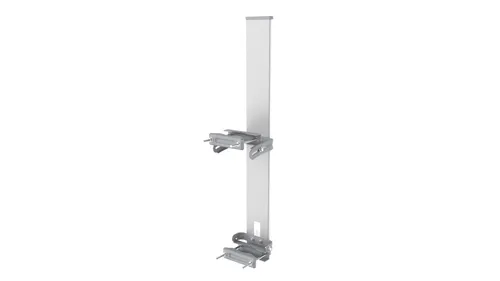

Mounting pole mount included
Power
Power supply 37 - 56 VDC PoE 802.3af (AC to DC adapter included)
Power source 100 – 240 VAC
Power consumption (max) 10 W
Environmental
Operating temperature -40°C (-40 F) ~ +65°C (+149 F)
Humidity 0 ~ 90 % (non-condensing)
Management
System monitoring SNMP, Syslog, Web UI, WNMS
Configuration WebUI, WNMS
Regulatory
Certification FCC/IC/CE
Model name | LigoDLB PRO 5-90-17 | LigoDLB PRO 5-90-20 |
Frequency range | 5.1 - 5.9 GHz | 5.1 - 5.9 GHz |
Gain | 17 | 20 |
Polarization | Dual linear | Dual linear |
Cross-pol Isolation | 24 dBi | 24 dBi |
VSWR | <1.8 | <1.8 |
Azimuth beamwidth (H pol) | 90 deg | 90 deg |
Azimuth beamwidth (V pol) | 90 deg | 90 deg |
Elevation beamwidth | 20 deg | 20 deg |
