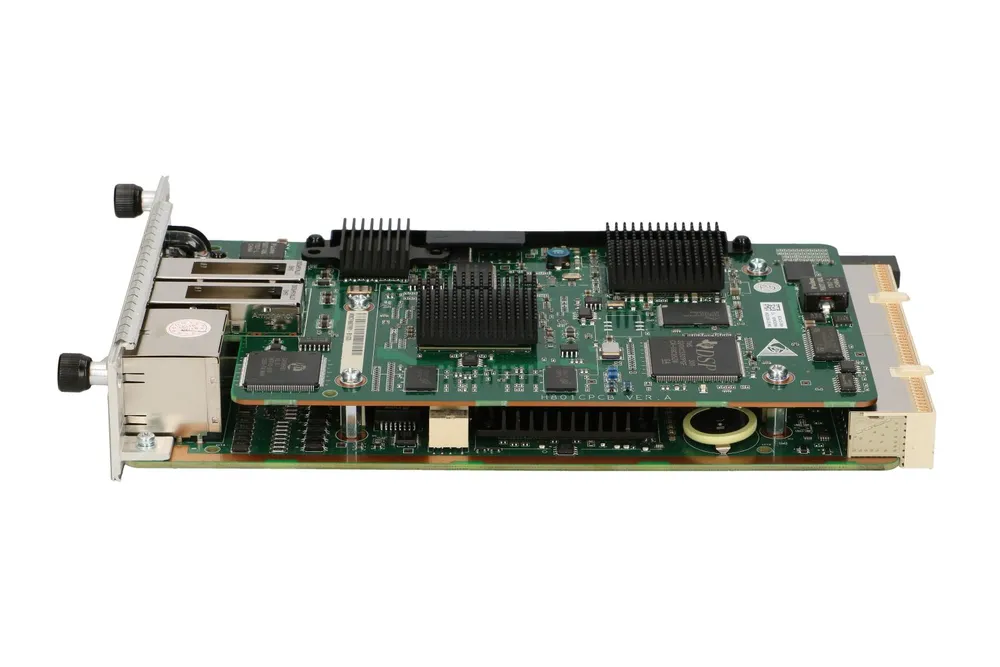

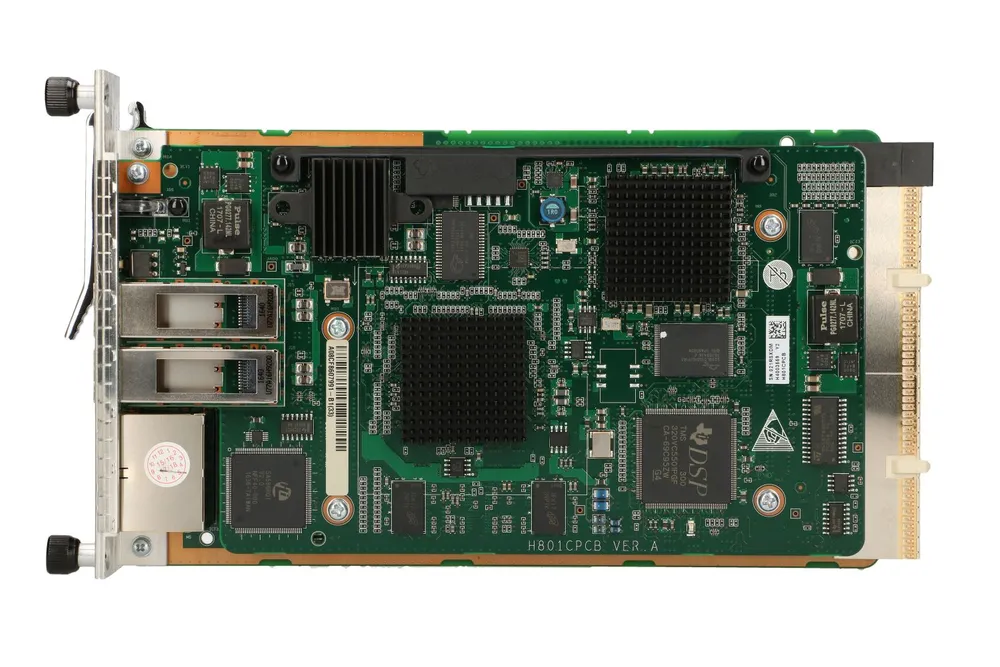

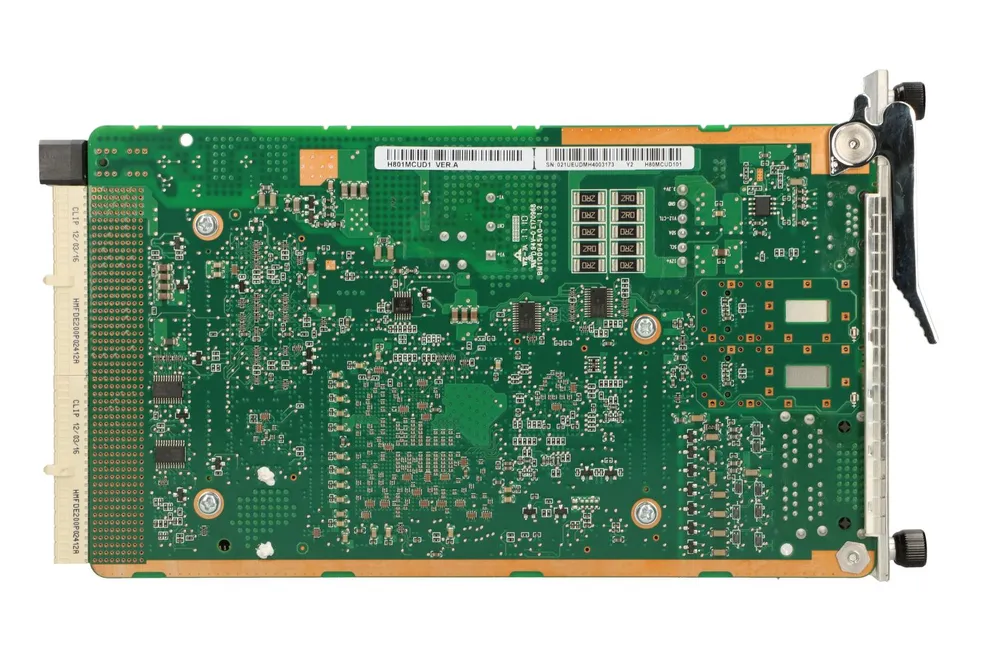

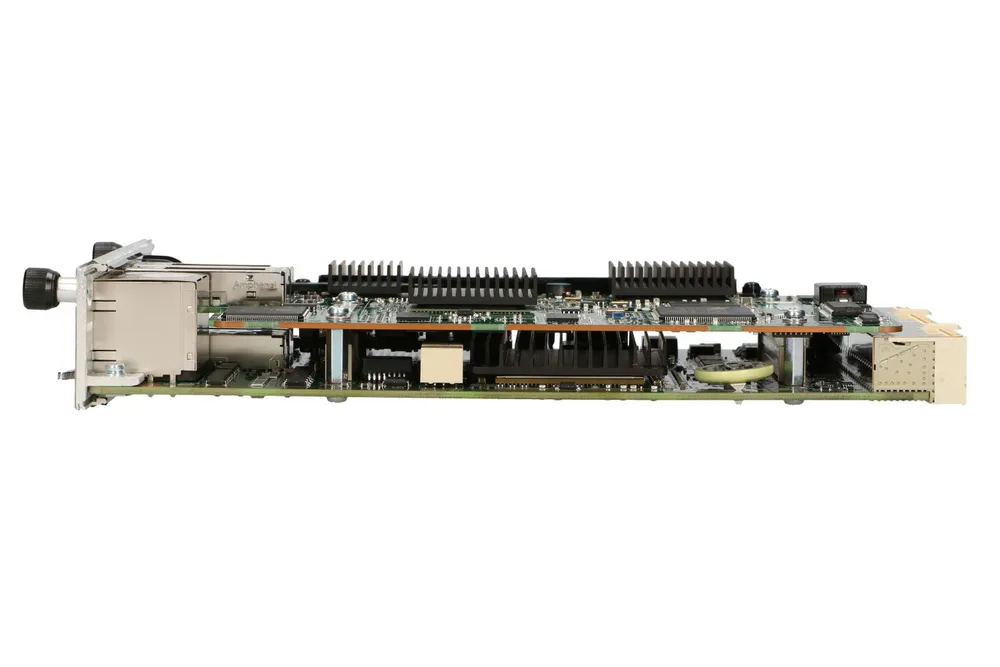

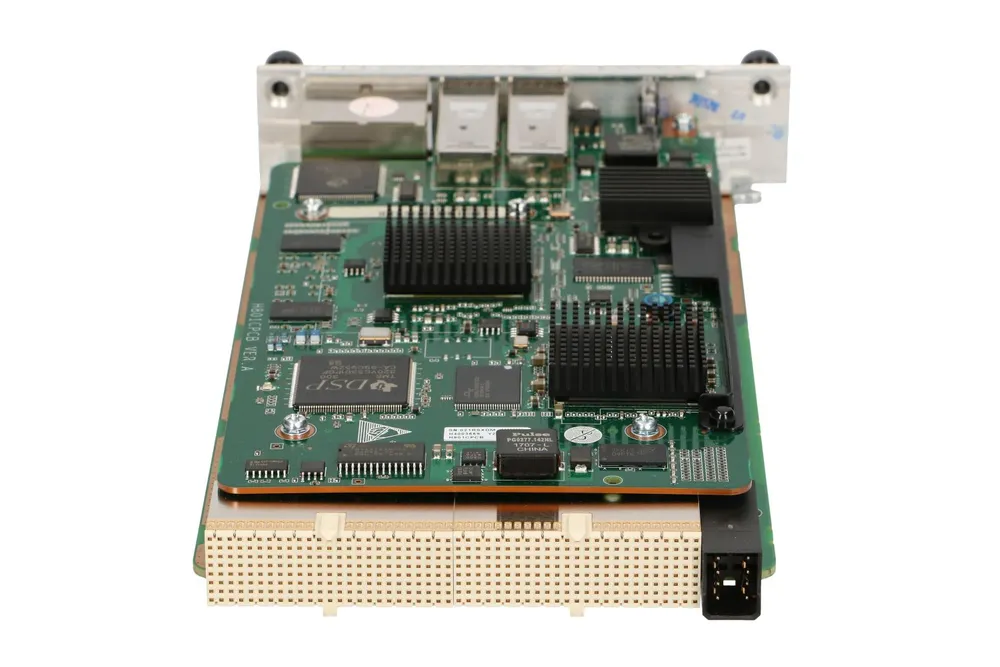

Huawei MCUD1 10G is a dedicated card for the 5608T base station. It contains an uplink module with four SFP slots, two of which are SFP+. The card also has a control module and an Ethernet port.
The control (uplink) board is designed for the OLT MA5608T Mini Control Unit Board. In the OLT terminal it is possible to use two boards of this type and to use the load sharing function.
MCUD1 10G is highly functional. It has two SFP slots, two SFP+ (10Gb/s) slots, two ACT and RUN/ALM LEDs . In addition, it is equipped with a control module with four RJ-45 ports (Alarm IN, Alarm IN/OUT, Console/ESC and BITS/TOD).
| Technical data | |
| Switching capacity | 256 Gbps in active / standby mode 512 Gbps in load sharing mode |
| Total capacity | 10 Gbps in active / standby mode 20 Gbps in load sharing mode |
| MAC Address Table | 32768 |
| Maximum number of users | 2048 |
| Maximum number of multicast users | 2048 |
| Number of multicast channels (configurable) | 4096 |
| Number of mutlicast channels (simultaneously) | 2000 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| ARP table | 8192 |
| Number of ACL rules | 896 |
| Maximum frame size | 2052 bytes Using the jumbo frame function: 9216 |
| VRF (L3 VPN) | Yes |
| Operating temperature | From -25 to 65 degrees C |
| Power consumption | Static: 29 W Maximum: 33 W |
| Dimensions | 233 x 134 x 34 mm |
| Weight | 1 kg |
