HALNy HL-1GE | ONT | GPON ONT B+ SC/APC, 1x RJ45 1000Mb/s, Bridge (SFU) and Router/NAT (HGU) mode

CODE: HL-1GE / EAN: 5903148919683

HALNy HL-1GE | ONT | GPON ONT B+ SC/APC, 1x RJ45 1000Mb/s, Bridge (SFU) and Router/NAT (HGU) mode

CODE: HL-1GE / EAN: 5903148919683
23,70 USD without VAT (net)
Out of stock
Maximum wireless transmission speed: Not applicable
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
PON standard: GPON
Wireless network standards: None
Show more parameters

About product

HALNY Networks

HALNy Networks is a Polish producer of innovative telecommunications solutions! The main product line is based on client terminals (ONT/ONU) as well as wireless routers. In the HALNy Networks portfolio we will mainly find solutions enabling ISPs to provide multigigabit Internet, (IPTV) TV and audio-video services in very good quality.

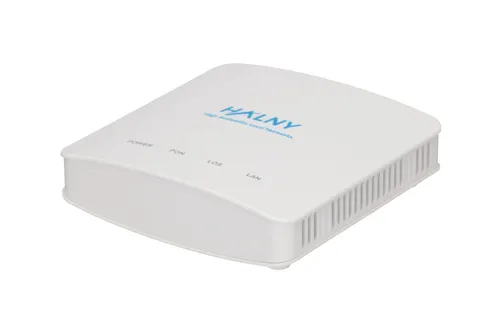

HALNy HL-1GE GPON ONT

HL-1GE HL-1GE GPON is a single-port ONU/ONT designed for FTTH type networks (Fiber to The Home). The product works in GPON technology and complies with current ITU-T standards.

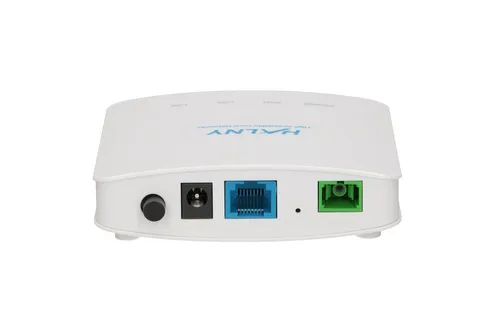

Halny HL-1GE ports

HL-1GE GPON operating modes

HALNy HL-1GE GPON is equipped with one gigabit RJ45 port and one optical SC/APC B+ port. The manufacturer took care to include versatile operating modes. ONT/ONU by HALNy can work both as a typical Bridge (SFU) as well as a Router (HGU) with NAT function. Thanks to this, the device is perfectly suited for practically every variant of FTTH networks.

hallway FTTH

Functionality

HALNy HL-1GE use one fiber optic (single-mode) for broadband services. The PON interface is compatible with ITU-T G.984.5 so ONT provides downstream 2.5Gb/s and upstream 1.25Gb/s. The LAN interface provides Gigabit service.

Halny HL-1GE topology

All HALNy devices have all functionalities of the second layer by default (Layer 2). ONT HL-1GE also has advanced L2 VLAN, L2 QoS, Multicast IGMP and router functions (HGU) and NAT.

Compatibility with other operators

HALNy specializes in very cost effective projects and works closely with service providers. All this in order to improve the profitability of operations, thanks to a wide range of standard products. It is extremely important that HALLY devices are compatible with other companies, which makes the solution very versatile.

List of compatible devices (GPON OLT)

  • ZTE C320 / C220
  • Huawei MA56XX, MA5683T, MA5800
  • Nokia (Alcatel-Lucent) ISAM FX-4
  • Zyxel OLT1408, IES 4204
  • Ubiquoss U9016B
  • Raisecom ISCOM6800
  • Fiberhome AN5116-06B
  • Cisco / Altice ME4601
  • Ericsson EDA1500
  • Dasan V5816, V5808, V8102, V8106, V5824G, V8240, V5812G

Specification

Features / filters
Maximum wireless transmission speed Not applicable
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
PON standard GPON
Wireless network standards None
USB port None
VoIP ports None

Hardware
WAN Port GPON SC/APC B+
GPON RX Input -10 ~ -27 dBm
GPON TX Output 0.5 ~ 5 dBm
LAN ports 1x10/100/1000

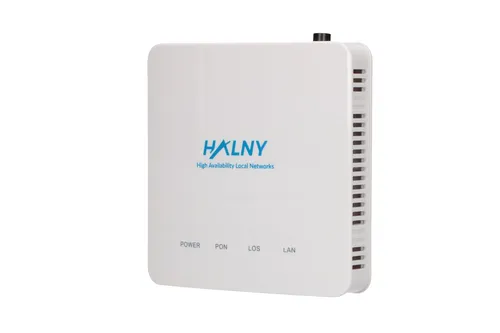

LEDs POWER, PON, FATE, LAN
Dimensions 93x93x25mm

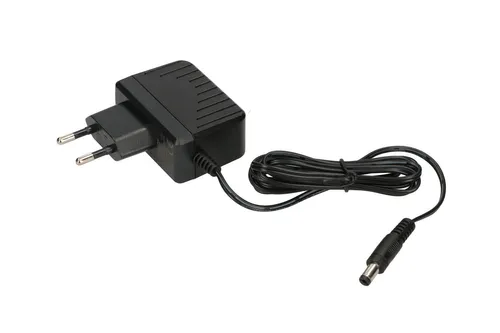

Power supply DC +12V 0.5A (power supply via external AC/DC adapter)
Buttons ON/OFF, Reset
Operating temperature 0 ~ 45 C
Ambient temperature -20 ~ 70 C
FLASH memory Stores two sets of ONT software: active and backup
SOFTWARE
GPON ITU-T G.984.x and G.988
OMCI G.984.4
AES decryption
Support for FEC (Forrward Error Correction) in both directions
Notification of power failure/shutdown
Dynamic Bandwidth Allocation
Support for Multicast GEM
Layer 2 802.1D Bridge
VLAN 802.1Q with 802.1p CoS
IGMP Snooping v/1v2/v3
Jumbo Frame 2K on GPON WAN
Rate-Limit (Traffic Limitation)
Layer 3 ONT can work as a Residential Gateway (Home Gateway Unit: HGU) and as a Bridge (SFU)
PPPoE Client
NAT and PAT
DHCP Server/Client/Relay
IGMP Proxy
VPN Pass-through
UPnP
Port Forrwarding
IPv4/IPv6
Provisioning Easy to use provisioning for all services, including PPPoE, IPTV, Port Forrwarding, Logins, etc.
DOCSIS over GPON/EPON
TR-069
SNMP
OMCI
Management WEB
Remote Syslog
OMCI
Compatibility with OLT GPON
Nokia (Alcatel-Lucent) ISAM FX-4
ZTE C320 / C220
Zyxel OLT1408, IES 4204
Ubiquoss U9016B
Raisecom ISCOM6800
Huawei MA56xx series (including version for Asia: MA5683T) and MA5800 series
Fiberhome AN5116-06B
Cisco / Altice ME4601
Ericsson EDA1500
Dasan V5816, V5808, V8102, V8106, V5824G, V8240, V5812G

Support

Downloads

HALNy HL-1G Datasheet ENG Download
HALNy HL-1G Quick Installation Guide ENG Download

Faq

What is FTTH?

Fiber to The Home (FTTH) means installing ONU/ONT type devices in residences, houses or business buildings.

Where is an OLT located?

The Optical Line Terminal (OLT) is usually located in the server room.

Is halny hl1g gpon compatible with gpon olt huawei zte ?

Yes.

What's ONT?

Optical Network Terminal is a GPON terminal installed at the client's premises.
ONT connects to OLT via fiber optic cables.

Where to look for technical support?

Technical support is available at www.halny.com
