Gigaeter Duo Box 19 MMCX | WiFi Antena | MMCX, Wide band, 19dBi

CODE: GIGAETER DUO BOX 19 MMCX WB

Gigaeter Duo Box 19 MMCX | WiFi Antena | MMCX, Wide band, 19dBi

CODE: GIGAETER DUO BOX 19 MMCX WB
51,26 USD without VAT (net)
Out of stock
Antenna frequency: 5 GHz,  4.9-6 GHz,  6 GHz,
Antenna type: Directional
Energy gain: 10dBi - 20dBi
Application: Outdoor
Show more parameters

About product

GIGAETER DUO BOX 19 MMCX WIDEBAND

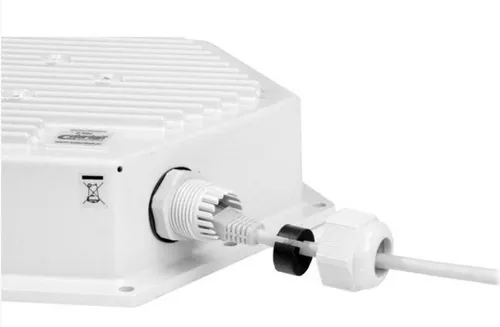

The dual-polarized directional antenna with a gain of 19dBi , with an integrated aluminum housing, allows Routerboard Series 411, 433 and 711 devices to be mounted inside it. It is designed to set up dual links or 2x2 MIMO 802.11n standard over short distances. It has integrated pigtails terminated with an MMCX connector. The LAN port is led out with a waterproof hole, the diameter of which allows the insertion of an RJ45 plug without removing the housing. The antenna has a very wide operating range containing from 4.9 to 6 GHz.

Hermetic aluminum housing

The antenna's state-of-the-art radiator array is made using microstrip technology and is sandwiched between an aluminum screen and a shield made of highly durable and low attenuation ABS plastic. This protects the antenna from the effects of atmospheric conditions, protects the device from the effects of electromagnetic radiation from other devices, and guarantees durability and unchanging parameters during operation.

Specification

Features / filters
Antenna frequency 5 GHz, 4.9-6 GHz, 6 GHz,
Antenna type Directional
Energy gain 10dBi - 20dBi
Application Outdoor
Compatible with brand Mikrotik
Connector type 2x MMCX
Front-to-back ratio 30 dB
Horizontal beamwidth 18°
MIMO Type 2x2
Polarization Double polarization (horizontal and vertical)
Port-to-Port isolation >37 dB
Vertical beamwidth 18°
VSWR 1.5:1
51,26 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
