The new Fanvil X3SG Pro series IP phone with Gigabit Ethernet ports has better performance and design than the previous generation X3SG Pro IP phone. The IP phone in the new series supports G.722 and Opus wideband codecs, allowing you to enjoy crystal clear high definition audio. Newly added function keys and support for EHS wireless headsets allow for greater efficiency in business and office applications.

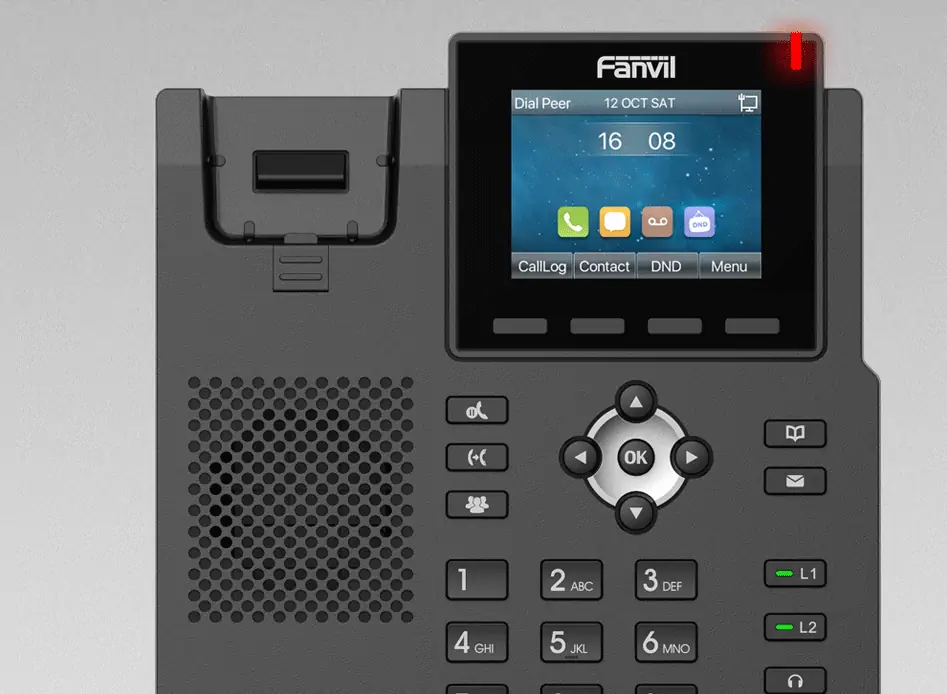

The new Fanvil X3SG Pro IP phone series features a bright 2.4-inch color display with 320×240 dots resolution for high image quality. Thanks to wideband G.722 and Opus codecs, Fanvil X3SG Pro IP phone allows you to enjoy crystal clear sound and highly efficient communication.

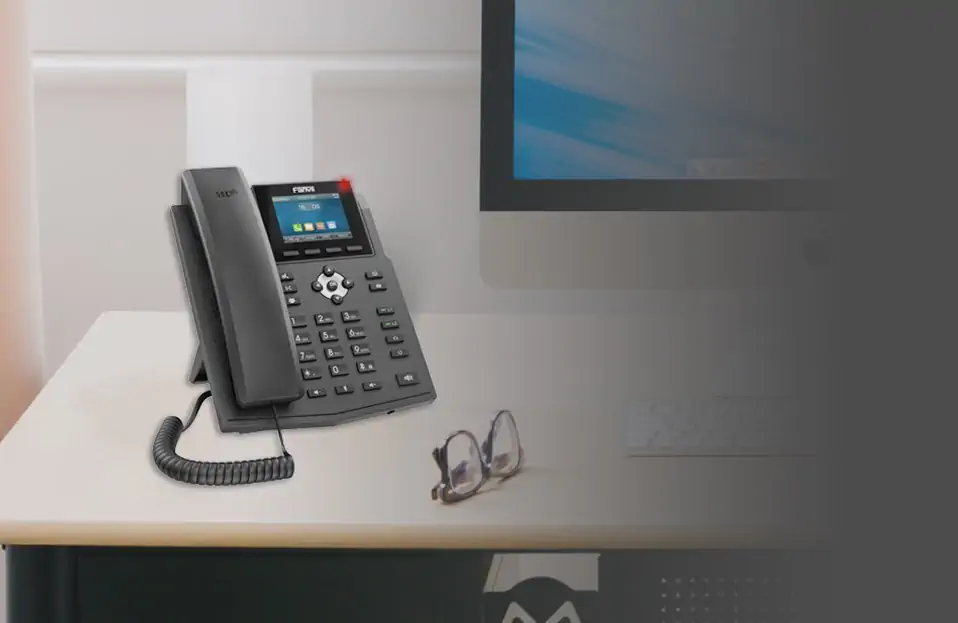

The EHS wireless headset supported on the new X3SG Pro series IP phone via the EHS cable enables a wide variety of call handling tasks. The new Fanvil X3SG Pro IP phone can be installed on a desk stand with two different angles or on a wall mount, which is very useful in different office layouts.
| Basic general data | |
| Manufacturer | Fanvil |
| Model | X3SG Pro |
| Type | VoIP phone |
| Physical specification | |
| Main display | LCD 2.8-inch (320x240) color screen |
| Keyboard | 34 keys, including: 4 Soft-keys 7 Function keys (Hold/Transfer/Conference/Phonebook /MWI/Headset/Dial) 2 Line keys (with LED) 4 navigation keys 1 OK button 12 standard telephone number keys 3 volume control buttons (Up/Down/Mute (Microphone)) 1 hands-free car kit button |
| Handset | 1 x HD (RJ9) |
| Earphone cable | 1 x standard RJ9 handset cable |
| Ethernet cable | 1 x 1.5M CAT5 |
| Rear rack | Yes |
| Status indicator | 1 x (red) |
| RJ9 port | 1 x handset 1 x headset |
| RJ45 port | 1 x network 1 x computer (connected to network) |
| Hole for security key | Yes |
| Power input | DC 5V/0.6A |
| Energy consumption | Idle 0.9~1.65W Peak 1.8~2.95W |
| Operating temperature | 0~45℃ |
| Operating humidity | 10~95% |
| Installation | Desktop Stand Wall mounted (additional wall hanging parts needed) |
| Colour | Black |
| Device dimensions | Desk stand (angle 1): 169 x 186.3 x 174.5 mm Desk Stand (Angle 2): 169 x 177.6 x 183.7 mm Wall mount: 169 x 115.6 x 212.5 mm |
| Phone features | |
| Local phonebook (1000 entries) Remote phonebook (XML/LDAP, 1000 entries) Call logs (incoming/outgoing/missed, 600 entries) Call filtering black/white list Screen saver Voice message waiting indication (VMWI) Programmable DSS/soft keys Network time synchronisation Plantronics wireless headset support (via Plantronics APD-80 EHS Cable) APD-80 EHS Cable) Jabra wireless headset support (via Fanvil EHS20 EHS Cable) Recording support (via server) Action URL / Active URI uaCSTA |
|
| Call functions | |
| Call / Accept / reject Mute / Unmute (microphone) Hold / Resume call Call waiting Intercom Caller ID display Speed dial Anonymous call (Hide caller ID) Call transfer (Always/Interests/No answer) Call transfer (attended/unattended) Call parking/reception (server dependent) Redial Do Not Disturb (Do-Not-Disturb) Automatic call answering Voice messaging (server dependent) 3-way conference Hotline Hot-desking |
|
| Audio | |
| HD Voice microphone/speaker (handset/speaker, frequency response 0 ~ 7KHz) HAC headphone Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.726-32K, G.729A/B, iLBC, G723.1 (optional) Broadband codec: G.722, Opus Full duplex acoustic echo cancellation (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) Packet Loss Concealment (PLC) Dynamic jitter adaptive buffer DTMF: in-band, out-of-band - DTMF-Relay (RFC2833) / SIP INFO |
|
| Network connectivity | |
| Physical: 10/100/1000 Mbps Gigabit Ethernet, dual bridged port for PC bypass IP Mode:IPv4/IPv6/IPv4 |
|
| Protocols | |
| SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 LLDP PPPoE 802.1x L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069 AES128 |
|
| Implementation and management | |
| Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/ PNP/TR-069 Web-based management portal Internet Packet Dump Export/import of configuration Phonebook Import/Export Firmware Upgrade Syslog |
|
Yes, the Fanvil X3SG Pro IP phone supports PoE power supply.
