Extralink Agnes | Fiber optic termination box | 2 core with adapter

CODE: EX.0721 / EAN: 5902560360721

Extralink Agnes | Fiber optic termination box | 2 core with adapter

CODE: EX.0721 / EAN: 5902560360721
4,09 USD without VAT (net)
Out of stock
Number of fibres supported (max): 2
Number of splice trays supported (max): 2
Product colour: White
Show more parameters

About product

EXTRALINK AGNES 2 CORE fiber optic box equipped with 2 adapters

The AGNES 2 CORE fiber optic box is used to connect and terminate internal fiber optic cables with pigtails. The box is used in wall or stationary installations.

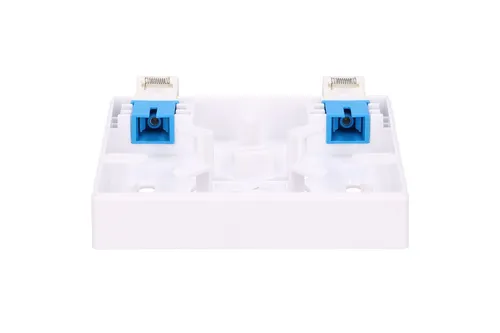

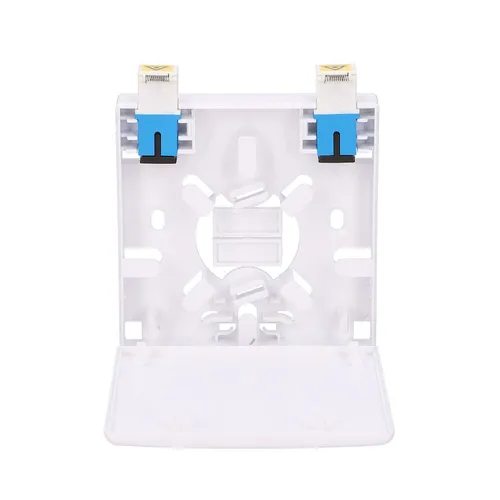

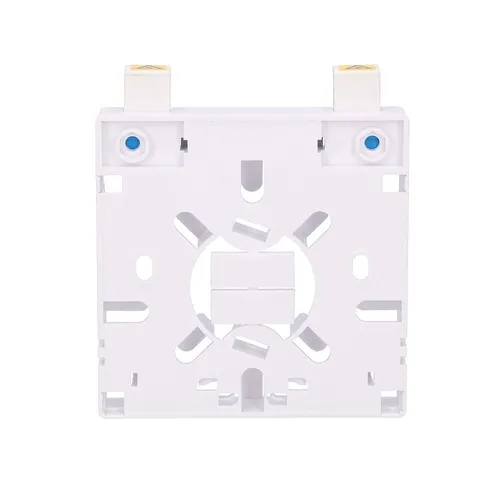

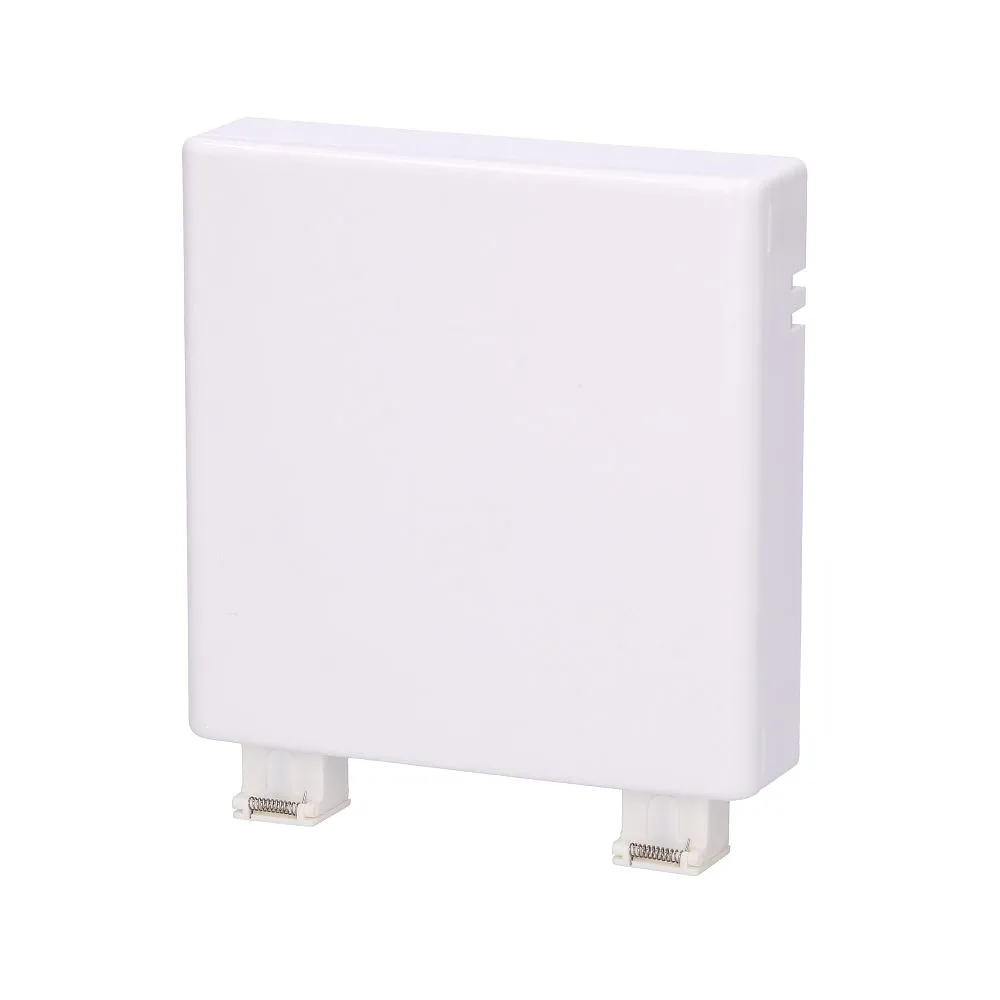

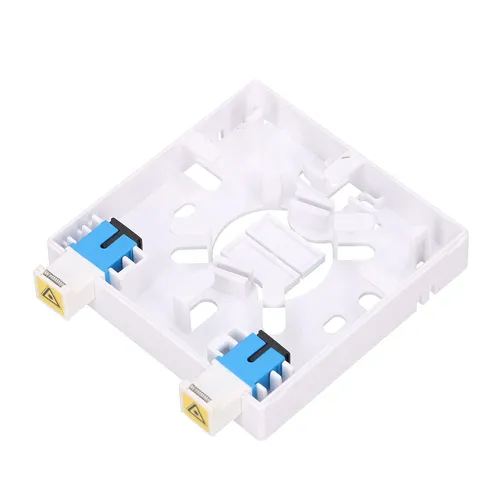

agnes 2 core termination box

Features:

  • Light weight, small size and easy installation
  • Made of high-grade ABS constructional plastic
  • Special fibre routing designs to provide bending radii greater than 40mm
  • Taking the connecting trays (splices)

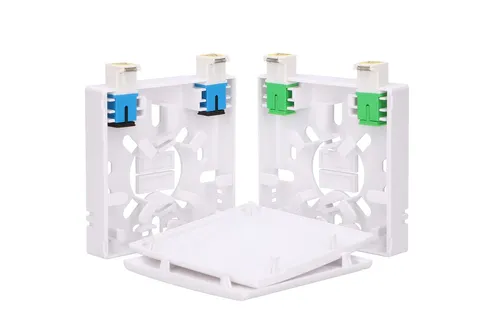

2 core fiber optic box

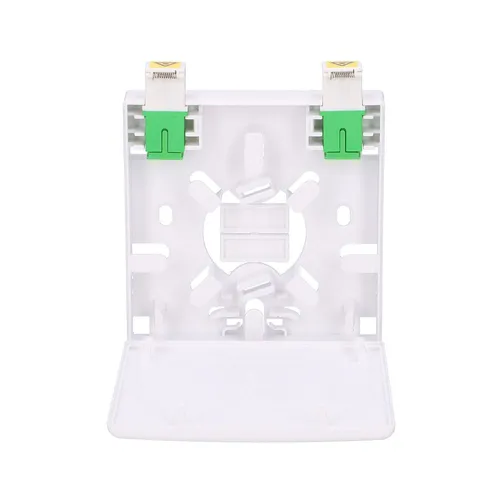

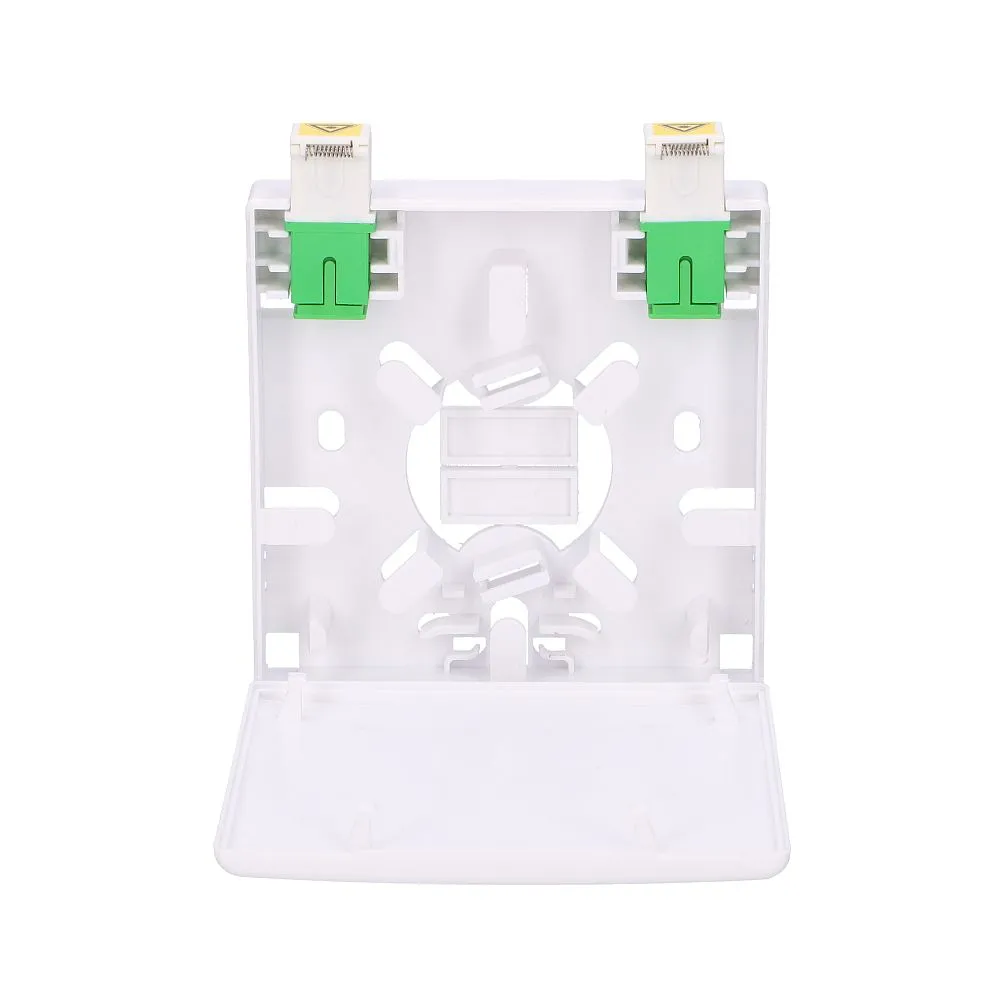

2 core optical fibre box

Specification

Features / filters
Housing material Acrylonitrile butadiene styrene (ABS)
Number of fibres supported (max) 2
Number of splice trays supported (max) 2
Product colour White

Basic technical parameters
Operating temperature -20°C ~ 70°C
Relative humidity 85%(+30°C)
Atmospheric pressure 70kPa ~106kPa
Dielectric strength 3000V DC 1min, no sparking
Insulation resistance 1000M/500V DC
Application 8-10.5 mm external cable
Diameter of the optical fibre 125µm ( 652 & 657 )
Tight buffer diameter 250µm & 900µm
Fibre optic mode Single mode and multi-mode
Adapter SC & FC
Loss of value 0.2dB(1310nm & 1550nm)
Number of fibres 2
4,09 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
