Extralink 4U 600x450 Black | Rackmount cabinet | wall mounted

CODE: EX.2886 / EAN: 5902560362886

Extralink 4U 600x450 Black | Rackmount cabinet | wall mounted

CODE: EX.2886 / EAN: 5902560362886
64,39 USD without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Cabinet hight: 4U
Back door construction: Metal
Back door key lock: No
Built-in UPS: No
Show more parameters
Skonfiguruj szafę

About product

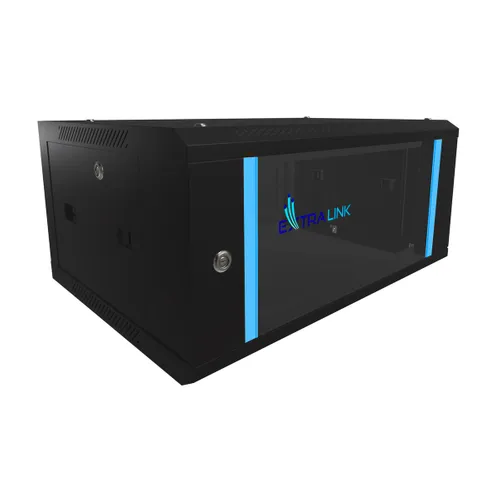

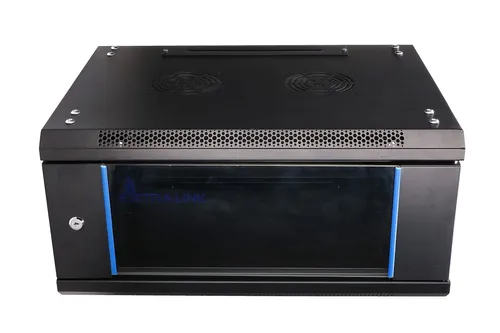

EXTRALINK brand rack cabinet in black - 4U, 600 × 450

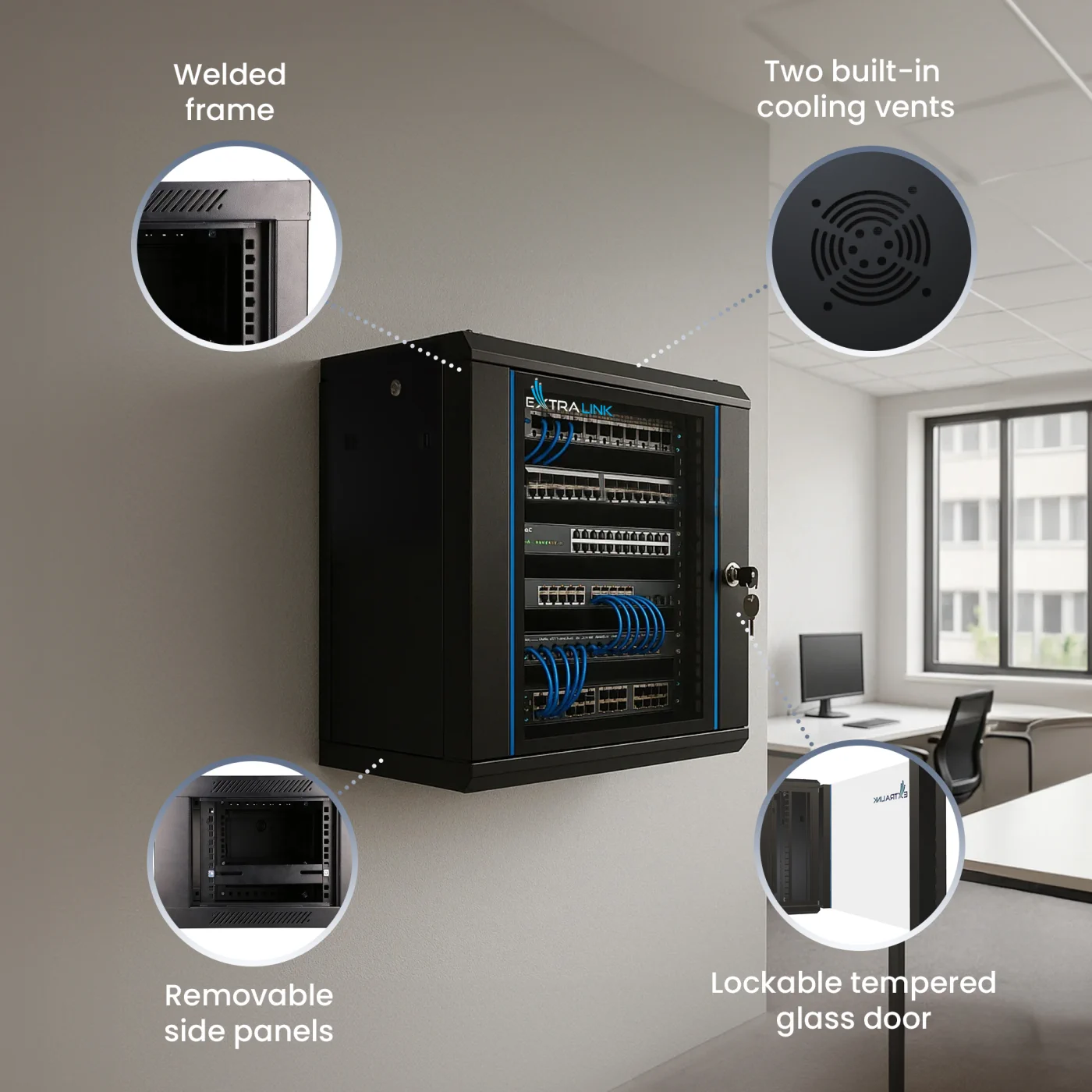

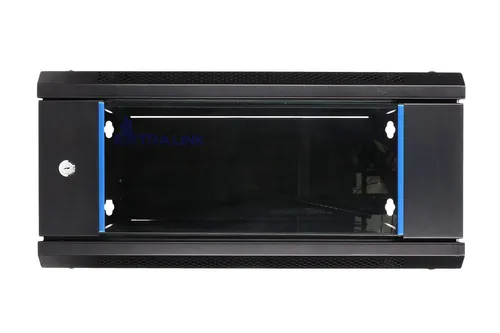

Extralink's rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The outer walls are made of cold-rolled steel sheet. Equipped with tempered glass, the front door can open to the left or right side.

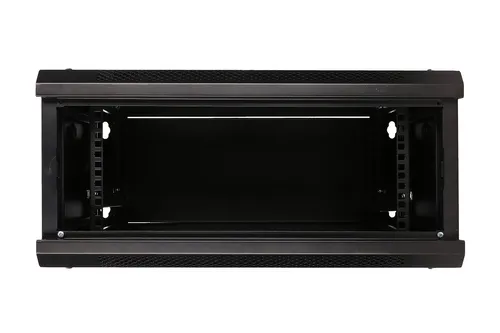

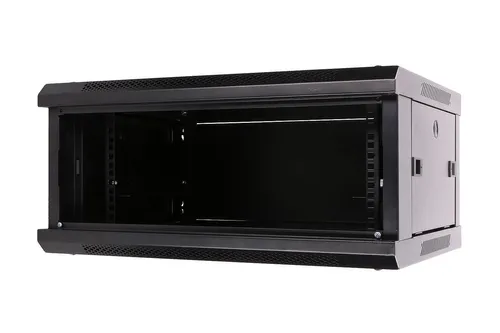

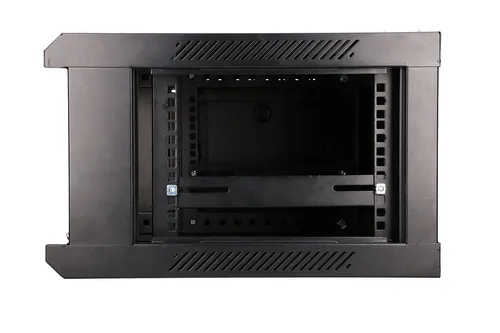

EXTRALINK Cabinet Interior

Clearly marked cabinet height

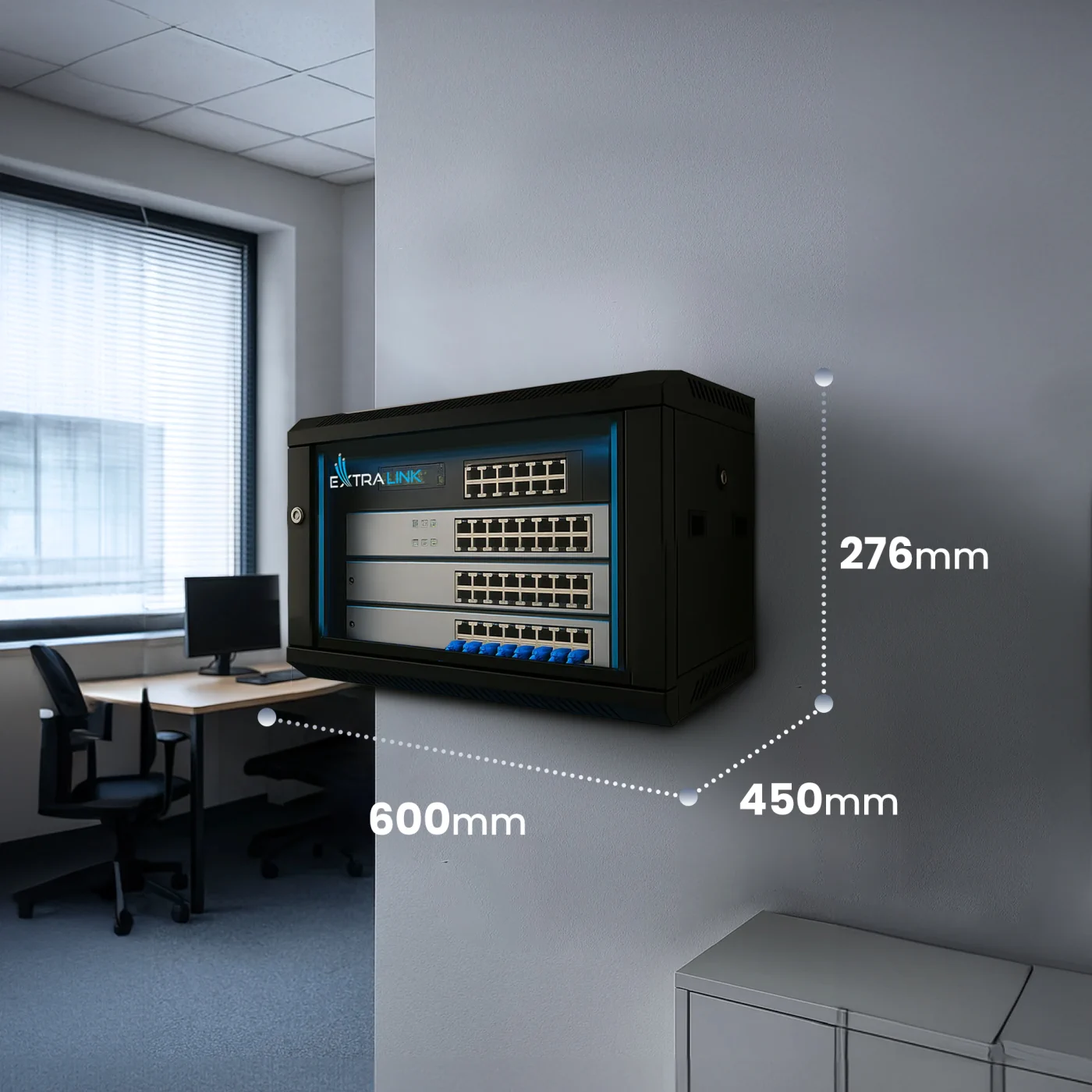

The vertical rails have a corresponding height marking, which is 4U (from unit), while the total height of the cabinet is 28 cm.

EXTRALINK Cabinet Height

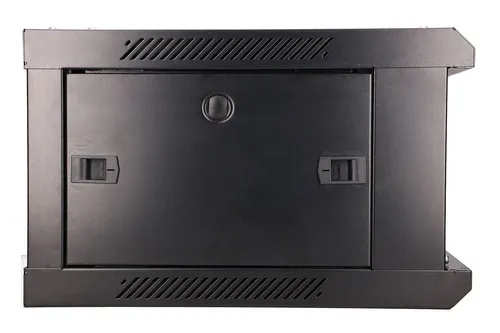

Easy disassembly of side walls

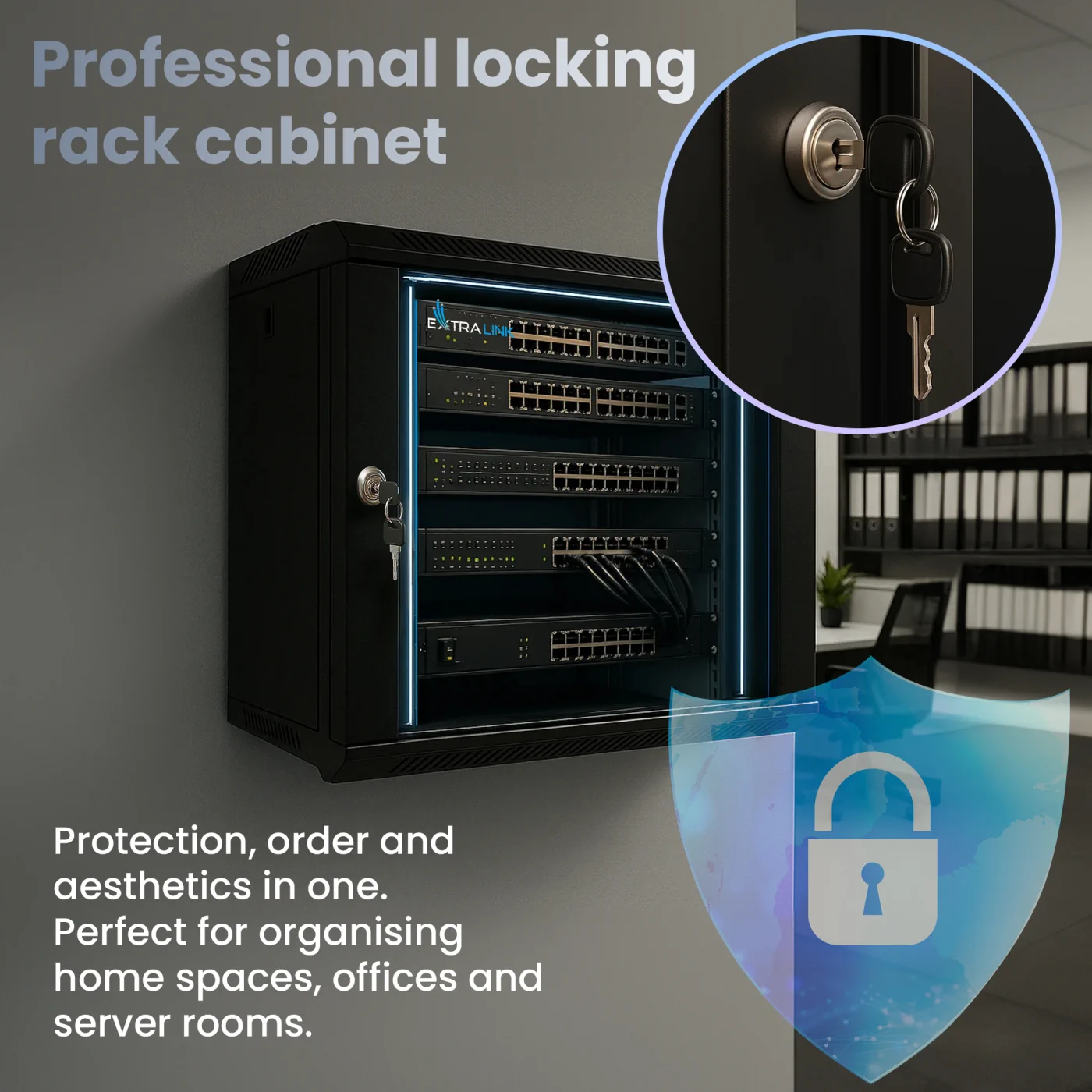

The latches on the sidewalls allow them to be removed. Locks and keys are included.

EXTRALINK 4U 600X450 WALL-MOUNTED RACKMOUNT CABINET BLACK

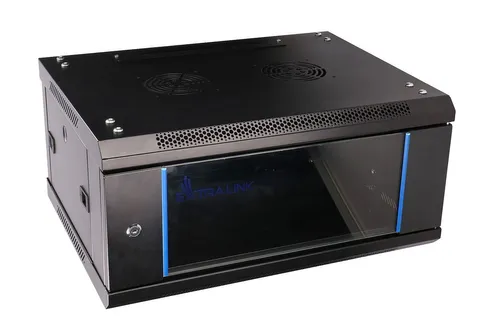

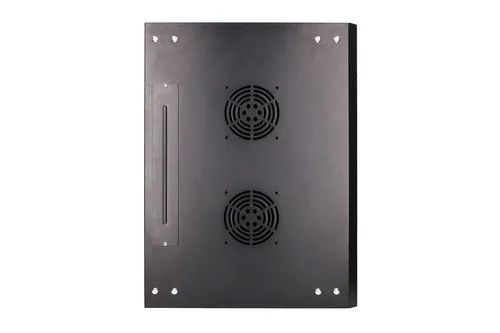

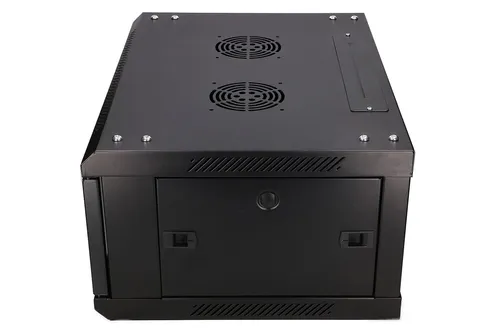

The ceiling of the cabinet adapted for the installation of fans

On the ceiling of the cabinet, 2 places are prepared for installing fans for better cooling of the equipment, and an additional conduit for pulling cables has been placed there.

EXTRALINK Cabinet Ceiling

Cabinet construction - drawing

EXTRALINK Cabinet Construction

Main features

EXTRALINK 4U 600X450 WALL-MOUNTED
EXTRALINK 4U 600X450 WALL-MOUNTED
EXTRALINK 4U 600X450 WALL-MOUNTED

Specification

Features / filters
Cabinet hight 4U
Back door construction Metal
Back door key lock No
Built-in UPS No
Colour Black
Cooling type Passive
Depth 450mm, 450,
Frame type Closed
Front door construction Glass/Steel
Front door key lock Yes
Height 280
Key lock Yes
Material Glass, Metal
Maximum weight capacity 20
Nuts included Yes
Package depth 640
Package height 160
Package volume 0.050176
Package width 490
Product colour Black
Rack capacity 4U
Rack rails Yes
Removable back door No
Removable front door Yes
Removable side panels Yes
Screws included Yes
Side panel construction Metal
Side panel key lock No
Side panels included Yes
Size (imperial) 48.3
Soundproof No
Temperature sensor No
Type Wall mounted rack
Type of doors Glazed
Width 600mm, 600,

Depth 450 mm
Technical data
Width 600 mm
Height 276 mm
Maximum available internal depth for the device 390 mm

Support

Downloads:

Installation instructions Download

Faq

What is a rack cabinet used for?

The rack cabinet is used for convenient and safe storage of all kinds of ICT and telecommunications equipment in one place.

What is the standard of devices that can be placed in the presented cabinet?

The presented cabinet is designed for 19" standard devices.

Is the rack equipped with ventilation?

The walls and panels of the cabinets are equipped with long ventilation holes. In many models, separate fans can also be installed on the ceiling of the cabinets.

How to assemble a cabinet from scratch?

Instructions for assembling the cabinet can be found in the support section.

What are the main parameters that characterize rack cabinets?

Capacity - the height of network devices, such as switches, patch panels and organizers, is determined in U units. The more U units a cabinet has, the more devices can be installed.

Width and depth of the cabinet - these dimensions tell us what area the cabinet occupies when folded. The dimensions of the cabinet are selected according to the dimensions of the network equipment.
