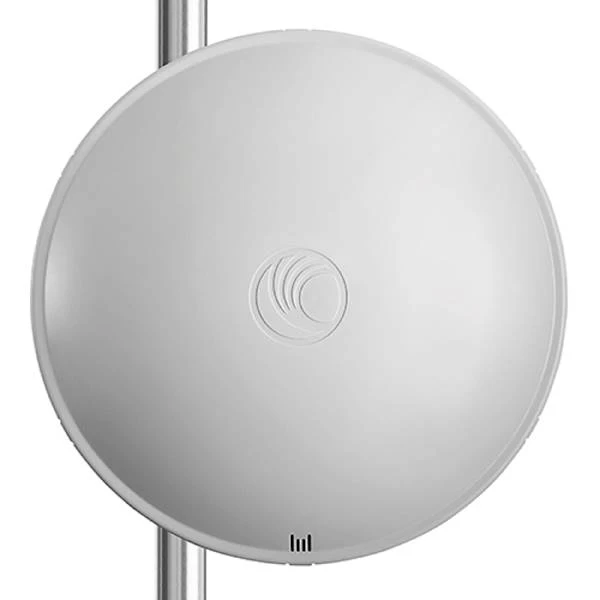

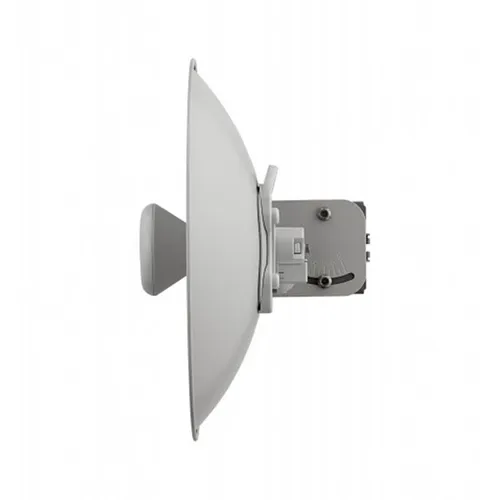

EPMP™ Force 200 5 GHz adds a subscriber module and point-to-point radio to the 5 GHz ePMP product line with a guarantee of excellent throughput of over 200 Mbps of actual user data. Long range deployment is possible with a 25 dBi antenna. Configurable operating modes enable reliable adaptation to both symmetric and asymmetric traffic, while providing high performance and extremely low latency of 2-3 ms both ways.
The device increases range and improves throughput in the most congested environments. ePMP Force 200 is a completely redesigned Cambium Networks solution that combines highly integrated and efficient radio with a high gain antenna. The radio supports Gigabit Ethernet interface for maximum throughput. Operating in the 2.4 and 5 GHz frequency ranges, it provides customers with wireless broadband connectivity over longer distances and excellent return on investment.
ePMP Force 200 specification | |
Channel spacing | Configurable in 5 MHz increments |
INTERFACE | |
Channel width | 5 | 10 | 20 | 40 MHz |
MAC | Ownership of Cambium |
Frequency range | 2.4 GHz model: 2402-2472 MHz 5 GHz model: 4910-5970 MHz |
Physical layer | 2x2 MIMO/OFDM |
VLAN | 802.1Q with priority 802.1p |
Protocols to be applied | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
Ethernet Interfaced | 10/100/1000 BaseT, Cambium PoE & Standard PoE pin-out compatible |
Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
PERFORMANCE | |
ARQ | Yes |
Nominal receiving sensitivity 20 MHz channel | MCS0 = -92 dBm to MCS15 = -68 dBm |
Nominal receiving sensitivity 40 MHz channel | MCS0 = -89 dBm to MCS15 = -65 dBm |
Modulation levels | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
Environmental | IP55 |
PHYSICAL FEATURES | |
Surge suppression | 1 joule integrated |
Quality of Service | Three priority levels (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast |
Transmission power range | -15 to 30 dBm (total, up to regional EIRP limit) (1 dB interval) |
Temperature | -30°C to 60°C |
Weight | 2.3 kg (5.1 lbs) |
Wind resistance | 145 km/h (90 mph) |
Dimensions (diameter x depth) | 47 cm x 28 cm (18.5 in x 11.2 in) |
Measuring range | 6,4 cm - 7,6 cm (2,5 in - 3 in) |
Energy consumption | 10 W maximum, 5 W typical |
Input voltage | 10 to 30 V |
Encryption | 128-bit AES (CCMP mode) |
SAFETY | |
CERTIFICATES | |
FCCID | Z8H89FT0015 |
Industry Canada Cert | 109W-0015 |
Yes, Cambium Networks strives to meet the high demands of the user, ensuring the highest possible throughput.
