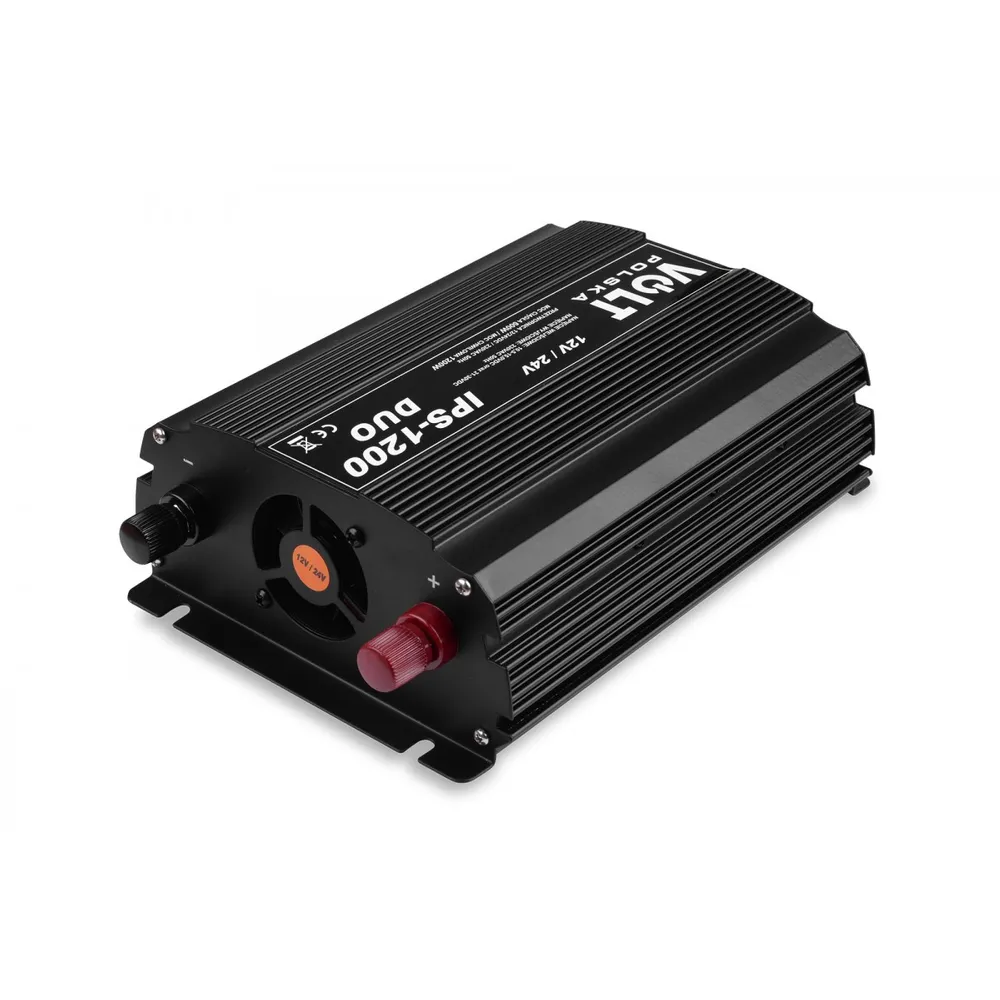

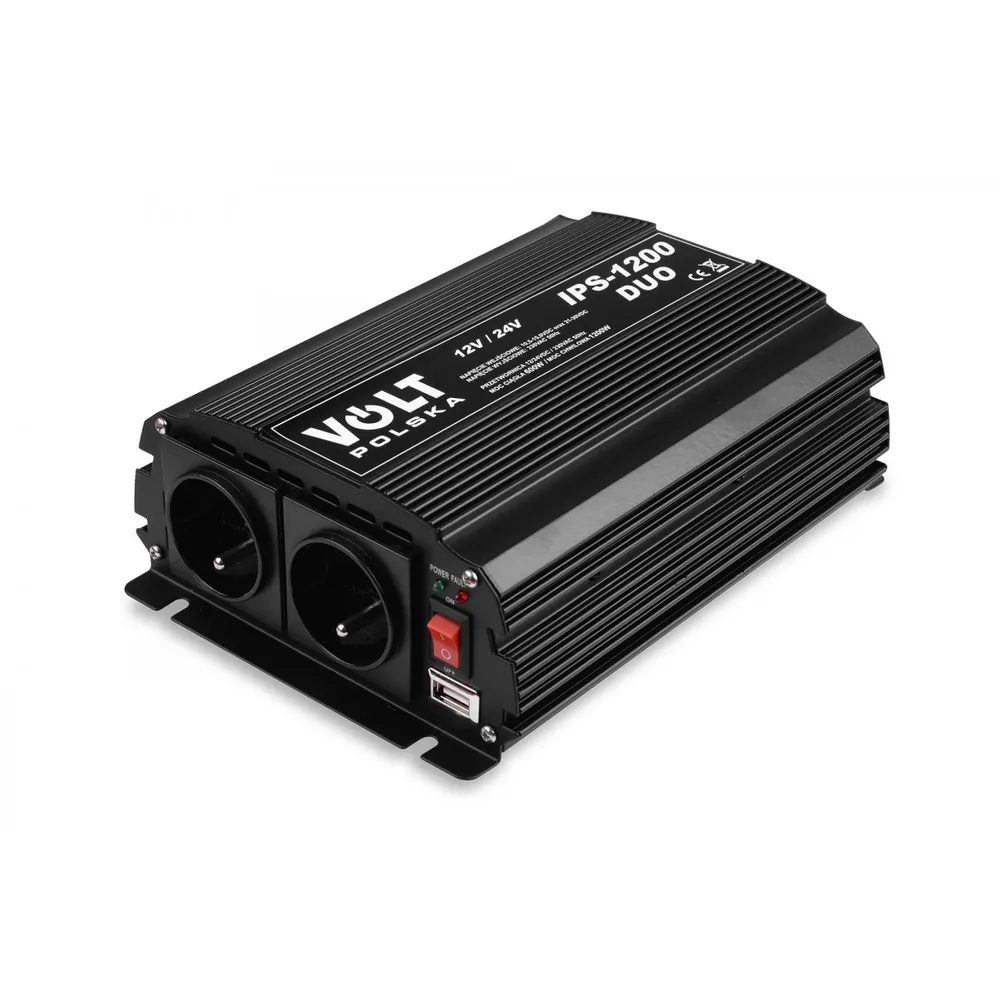

The IPS 1200 DUO 12 V/24 V/230 V converter is designed to power electrical equipment that requires 230V AC voltage via batteries. VOLT IPS is a very popular series of solidly constructed universal inverters. With a simple design and low price the device is easily accessible to everyone. It works everywhere where there is no possibility of direct connection to the power grid, and also during power failure. Compact size allows to use the inverter in any place. The device is also adapted to be powered from the 12 V car lighter socket.
VOLT IPS series converters produce at the output so called modified sine wave. This is a rectangular alternating voltage whose rms value is identical to the rms value of the sinusoidal waveform occurring in the power grid. The use of this method of voltage generation allows to significantly reduce the price and increase the reliability of the device.
| Technical data | |
| Total power | 1200 W |
| Rated power | 600 W |
| Output voltage | 225 V - 235 V |
| Output voltage frequency | 50 Hz (±2 Hz) |
| Efficiency at full load | >92% |
| Permissible operating temperature range | From -10°C to 40°C |
| Cable with cigarette lighter plug | Yes |

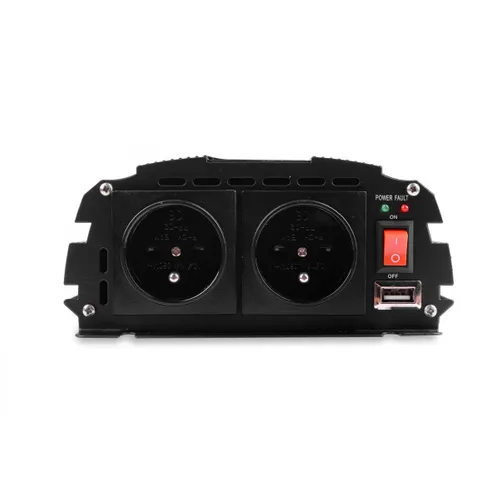

| 5 V USB socket | Yes |
To properly select the power of the inverter, it is necessary to correctly calculate the power demand, i.e. the total energy consumption. The power consumption should not exceed 85% of the maximum (continuous) power of the inverter.
To the inverter we can connect:
The voltage value in cars is:
passenger car: 12 V
truck: 12 V or 24 V (in most cases the cigarette lighter socket is marked accordingly).
