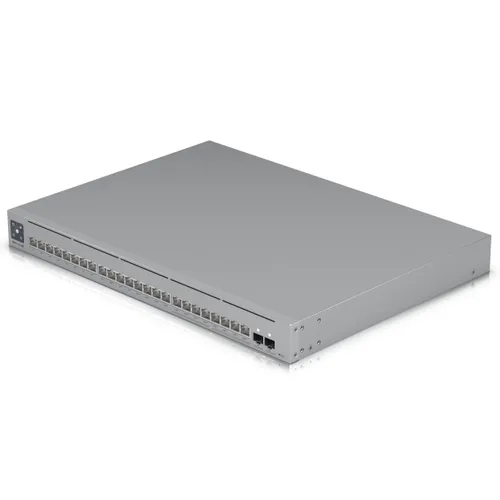

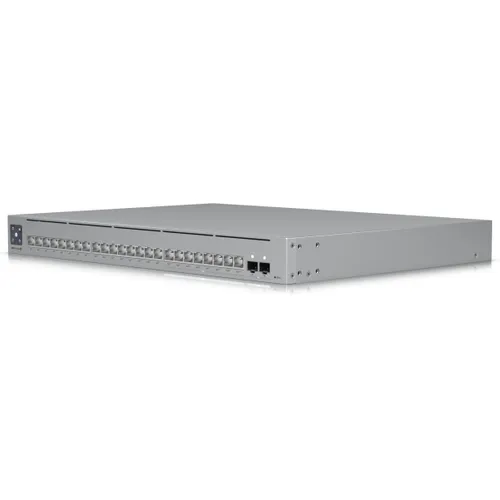

The Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE) is a high-performance Layer 3 Etherlighting managed PoE switch designed to meet the demands of modern networking environments. Equipped with 24 ports, including 16 Gigabit Ethernet PoE /PoE ports and 8 2.5 Gigabit Ethernet PoE ports , it provides the flexibility and reliability you need to handle the most demanding network traffic.

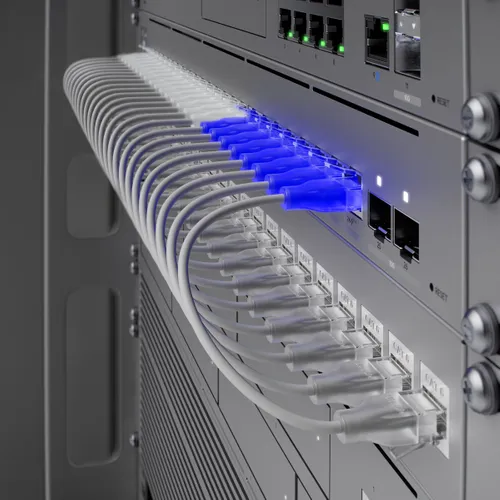

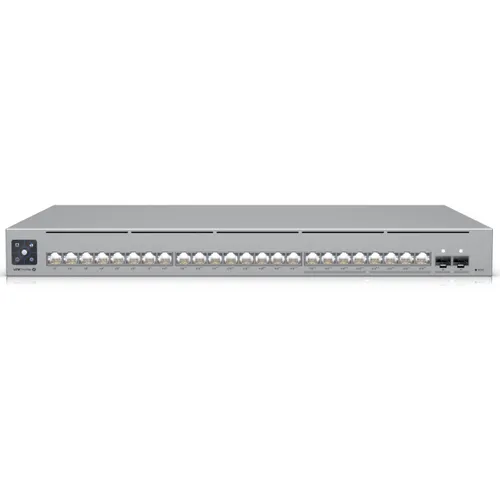

The USW-Pro-Max-24 PoE offers 24 Gigabit Ethernet RJ45 ports (10/100/1000 Mbps), including 8 PoE ports and 8 PoE ports , and 8 2.5 Gigabit Ethernet RJ45 ports (1/2.5 Gbps), all with PoE support . In addition, the switch has 2 10 Gbps SFP slots for uplink connection to the corporate network. With Etherlighting technology, identifying port location, link speed and native VLAN/network is quick and easy.

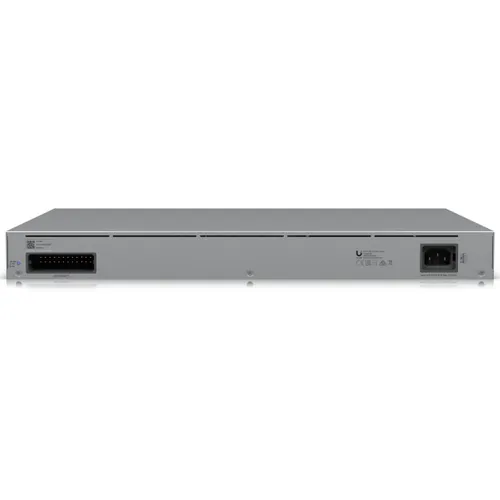

The USW-Pro-Max-24 PoE switch powers demanding devices such as access points, IP cameras and VoIP phones with up to 60W of PoE per port, for a total PoE power budget of an impressive 400W. DC backup power ensures uninterrupted operation even during power outages, and UniFi SmartPower RPS DC support enables backup in case of internal power supply failure.
The USW-Pro-Max-24 PoE is managed and configured using the UniFi Network Controller, which supports UniFi mobile apps. UniFi Network Controller allows you to share UniFi devices, map your network and manage traffic from anywhere. The switch has a 1.3-inch LCM touchscreen display that provides connection status information and facilitates monitoring and quick troubleshooting.
The USW-Pro-Max-24 PoE switch offers a set of advanced Layer 2 switching protocols and features, including modes of operation (switching, mirroring or aggregation) per port. In addition, Layer 3 features such as inter-VLAN routing, static routing and DHCP server functionality provide advanced network traffic management capabilities.
The USW-Pro-Max-24 PoE features a compact size and fanless design, making it ideal for installation in a 19" 1U rack. The kit also includes mounting brackets for easy installation in a variety of network environments.
| Ubiquiti UniFi Switch Pro Max 24 PoE (USW-Pro-Max-24-PoE). | |
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7 inches) |
| Weight | Without mounting brackets: 5.1 kg (11.3 lbs) With mounting brackets: 5.2 kg (11.5 lbs) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet in-band |
| Network interface | 16x Gigabit Ethernet RJ45 ports 8x 1/2.5 Gigabit Ethernet RJ45 ports 2x 10Gb/s SFP slots |
| PoE interface | 8x PoE/PoE ports (Pins 1, 2 ; 3, 6-) 16x 60W PoE ports (Pair A 1, 2 ; 3, 6-) (Pair B 4, 5 ; 7, 8-) |
| Total non-blocking capacity | 56 Gbps |
| Switching performance | 112 Gbps |
| Power method | Universal input, 100-240 V AC, 50/60 Hz UniFi SmartPower RPS DC input |
| Power supply | AC/DC, internal, 450 W |
| Supported voltage range | 100-240 V DC |
| Max power consumption | 50 W (without PoE output) |
| Total available PoE power | 400 W |
| Max PoE power per port according to PSE | PoE: 15,4 W PoE : 30 W PoE : 60 W |
| Voltage range PoE mode | PoE: 44-57 V PoE : 50-57 V |
| LCM display | 1x Touchscreen 1.3 inches |
| Button | Restore factory settings |
| Operating temperature | -5 to 40° C (23 to 104° F). |
| Operating humidity | 10 to 90% non-condensing |
| Certificates | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/connectivity Native VLAN/network |
| SFP | Locating Speed/connectivity Native VLAN/network |
| LEDs | |
| Application requirements | |
| UniFi Network | Version 8.0.24 and later |
