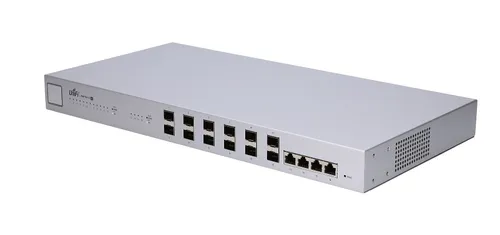

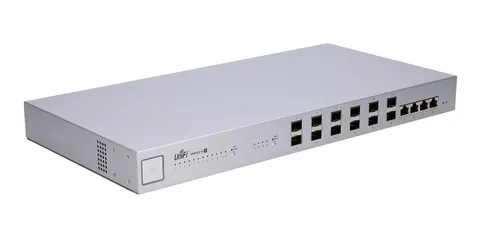

Ubiquiti US-16-XG | Switch | UniFi, 12x SFP+, 4x RJ45 10Gb/s, Managed Aggregation Switch

CODE: US-16-XG-EU / EAN: 0810354026010

Ubiquiti US-16-XG | Switch | UniFi, 12x SFP+, 4x RJ45 10Gb/s, Managed Aggregation Switch

CODE: US-16-XG-EU / EAN: 0810354026010
386,92 GBP without VAT (net)
Out of stock
Number of LAN ports: 12x [10G (SFP+)] ,  4x [1/10G (RJ45)] ,
10G support: Yes
AC input frequency: 50 - 60
Show more parameters

About product

10G aggregation switch for corporate networks

Build and expand your network using the UniFi 16 XG Ubiquiti switch, which is part of the UniFi Enterprise System. US-16-XG is a fully managed 16-port 10G fiber-optic switch that increases network capacity with multiple switches in your network.

Example of 10 Gbps implementation

The ability to switch traffic US-16-XG allows traffic to be handled simultaneously on all ports at the maximum possible speed without any loss. Total capacity without blocking up to 160 Gbps.

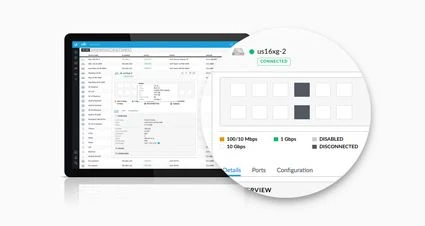

Multiple management

A single instance of a cloud-based UniFi OS Console can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics and administrative accounts.

US-16-XG ubiquiti UNIFI SFP+ SWITCH

High throughput 10G connections

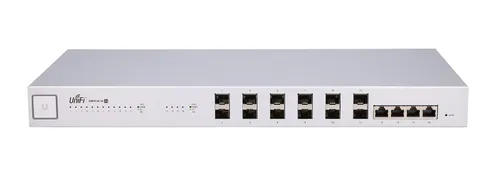

US-16-XG offers maximum performance and low latency as an aggregation switch. It is equipped with 12 SFP+ ports to provide fiber optic connectivity. For CAT 6/5e cable connections, US-16-XG offers four 10G RJ45 ports.

4X 10G RJ45 PORTS sfp+

Seamless integration

The UniFi switch integrates seamlessly into the network platform defined by the UniFi software, creating a highly scalable, comprehensive system of network devices in multiple locations that are controlled from a single interface.

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 12x [10G (SFP+)] , 4x [1/10G (RJ45)] ,
10G support Yes
AC input frequency 50 - 60
AC input voltage 100 - 240
Basic switching RJ-45 Ethernet ports quantity 4
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Broadcast storm control Yes
Cable types supported Cat6

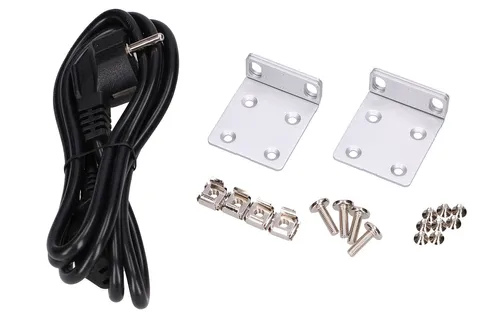

Cables included AC
Certification CE, FCC, IC, ETSI300-019-1.4
Console port RJ-45
Depth 221
Form factor 1U
Full duplex Yes
Harmonized System (HS) code 85176990
Height 43
Housing material Steel
Input voltage 25 - 16
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
Management CLI - Command Line Interface, Dedicated application,
Mounting brackets included Yes
Networking standards IEEE 802.1x

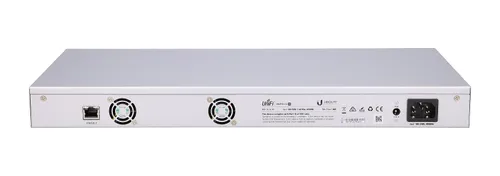

Number of fans 2
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -5 - 40
Package type Box
Packet forwarding rate (1 Gbps) 238.1
Port mirroring Yes
Power (W) Without PoE
Power connector DC-in jack
Power consumption (max) 56
Power consumption (typical) 36
Power supply included Yes
Product colour Grey
Quick start guide Yes
Rack mounting Yes
Reset button Yes
Screws included Yes
Security algorithms 802.1x RADIUS
SFP+ module slots quantity 12
Spanning tree protocol Yes
Switch layer L2
Switch type Managed
Switching capacity 320
Switching layer 2
Type of case Rack (1U), Desktop,
VLAN support Yes
Weight 2.62
Width 443

Basic technical parameters
Dimensions 443 × 221 × 43 mm
Weight 2.67 kg
Total capacity without blocking 160 Gbps
Maximum DC supply 36W (does not include SFP/SFP+ modules)
Power supply method AC 100-240VAC/50-60 Hz, universal input
DC 48VDC/24VDC
Power supply AC/DC, internal, 56W DC
Voltage range supported 100 to 240VAC
57 to 20VDC
Certificates CE, FCC, IC
Installation in a rack Yes, 1U High
ESD/EMP protection Air ± 24 kV, Contact_ ± 24 kV
Operating temperature -5 to 40° C
Working humidity 5 to 95%
Shocks and vibrations ETSI300-019-1.4
LEDs per port SFP+ Data Ports - Speed/connection/activity
RJ45 Data ports - Speed/connection/activity
Network Interfaces (12) 1/10 Gbps SFP+ Ethernet Ports
(4) 1/10 Gbps Ethernet ports RJ45 Ethernet Ports

Support

Software Download
Quick start guide Download
Datasheet Download

Faq

SFP+ connection

1. Usuń zaślepkę ochronną pokrywającą port SFP+.
2. Podłącz zgodny moduł światłowodowy do portu SFP+.
ubiquiti

3. Podłącz kabel światłowodowy do modułu światłowodowego. Następnie podłącz drugi koniec kabla do innego urządzenia światłowodowego.
ubiquiti

4. Powtórz kroki 1-3, aby podłączyć dodatkowe porty SFP+.

At what temperature can the device work ?

Operating temperature: -5 to 40° C

What is the total capacity without blocking ?

Total capacity without blocking: 160 Gbps
