Ubiquiti UNVR | NVR | 4x 8TB, 1x SFP+, RAID 1, RAID 5, up to 50 cameras

CODE: UNVR-EU / EAN: 0810010073051

Ubiquiti UNVR | NVR | 4x 8TB, 1x SFP+, RAID 1, RAID 5, up to 50 cameras

CODE: UNVR-EU / EAN: 0810010073051
221,36 GBP without VAT (net)
Out of stock
Resolution: Full HD 1080p
AC input frequency: 50 - 60
AC input voltage: 100 - 240
Built-in processor: Yes
Show more parameters

About product

UniFi Protect Network Video Recorder

Ubiquiti UNVR is a business-grade network video recorder that can provide up to 30 days of video storage 4k for 15 cameras or FULL HD video storage for 50 cameras.

UBIQUITI UNIFI

Intuitive operation

Ubiquiti UNVR is designed for video recording in corporate networks, the device integrates NVR, UniFi Protect software and 4 disk slots. It combines enterprise-class data protection and scalable storage with simple plug and play integration using the intuitive UniFi Protect software. The device is equipped with an intuitive graphical user interface, which allows you to access the surveillance footage from your desktop or mobile device from anywhere, the application itself is available on iOS and Android devices.

Quick and easy HDD installation

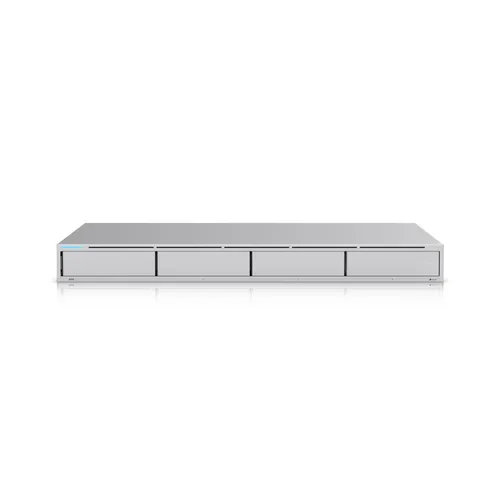

The disk slots are located on the front panel of the device, making the installation and maintenance of hard drives easy and fast. Using four 8TB drives in RAID 5 configuration, UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Versatile UniFi OS Console software

The UniFi OS Console enables you to manage the UNVR, as well as browse recorded video and view connected cameras in real time. It can also manage thousands of UniFi access points, map networks, quickly manage traffic in the system and add new UniFi access points. Take advantage of the UniFi OS Console features to find and eliminate interference, analyse radio frequencies, find the optimal spot for an access point and configure it.

Main features

  • 4 HDD bays - 2.5"/3.5"
  • 1 x 10G SFP+ port
  • 1U-sized, rack-mountable console (kit included)
  • Pre-installed UniFi Protect system
  • Automated RAID 1 or RAID 5 configuration
  • 1 x GbE RJ45 port
  • Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection

Specification

Features / filters
Resolution Full HD 1080p
AC input frequency 50 - 60
AC input voltage 100 - 240
Built-in processor Yes
Depth 325
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 1000,10000,100000
HDD capacity 4
Height 43.7
LED indicators Yes
On/off switch Yes
Operating temperature (T-T) -5 - 40
Output current 2
Power consumption (max) 100
Power consumption (typical) 75
Processor cores 4
Processor frequency 1.7
Product colour Grey
Rack mounting Yes
RAID levels 5
RAID support Yes
Video input channels 4
Weight 5.11
Width 442.4

Technical data:
Dimensions 442,4 x 325 x 43,7 mm
Weight Without rack mounting brackets - 5.11 kg
With rack mounting brackets - 5.20 kg
Enclosure material SGCC steel
Processor Four-core ARM Cortex-A57 1.7 GHz
Memory 4 GB of DDR4 memory
Built-in flash memory SPI NOR 32 MB, USB Flash Drive 8 GB
Max. Energy consumption 100W
Max. power budget for drives 75W
Power supply method Universal AC input
(1) RPS DC input
Power supply 100-240 V AC, 50/60 Hz, 2 A.
Network Interfaces 10/100/1000 Mb / s RJ45 Ethernet
(1) 1/10 Gb / s SFP + Ethernet
Management interface Management in the Ethernet band
ESD / EMP protection Air: ± 12 kV, Contact: ± 8 kV
Operating temperature From -5 to 40 ° C (23 to 104 ° F)

Faq

221,36 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
