Ubiquiti LAP-GPS | CPE | LiteAP GPS, 2,4GHz, 5GHz, 1x RJ45 1000Mb/s, 17dBi, 90 degrees


airMAX® LiteAP™ AC LAP-GPS is the latest high-performance access point / base station from Ubiquiti. Characterized by its lightweight design, airMAX LiteAP AC is designed to achieve the best price/performance ratio in a group of long-distance wireless connections. It operates in a worldwide, license-free 5 GHz frequency band. It works in IEEE 802.11 a/n/ac standard. The antenna gives 17dBi gain. GPS synchronization is an advantage. LiteAP AC combines proprietary hardware and software technologies to provide a breakthrough combination of bandwidth and range with cost-effectiveness. LiteAP AC provides up to 450+ Mbps of actual TCP/IP throughput.

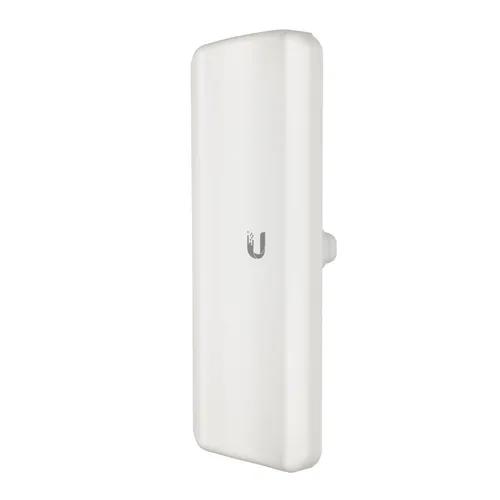

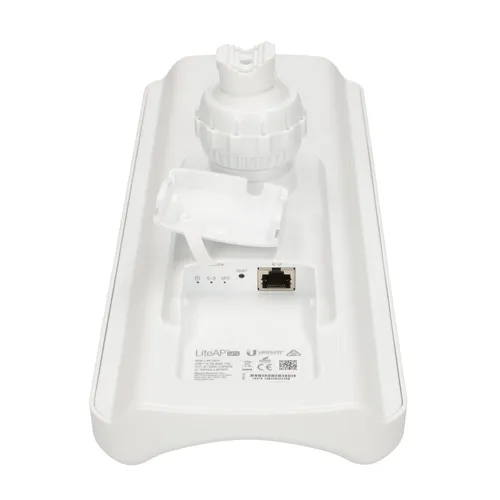

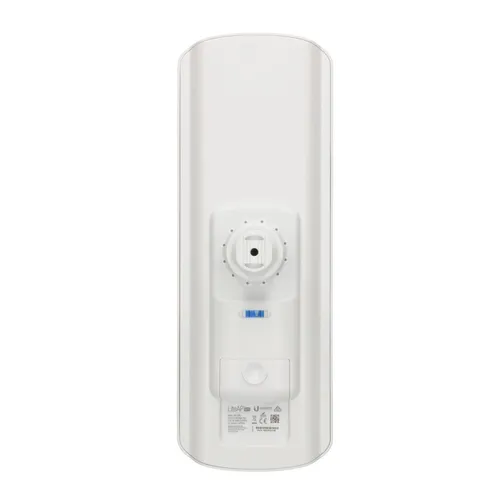

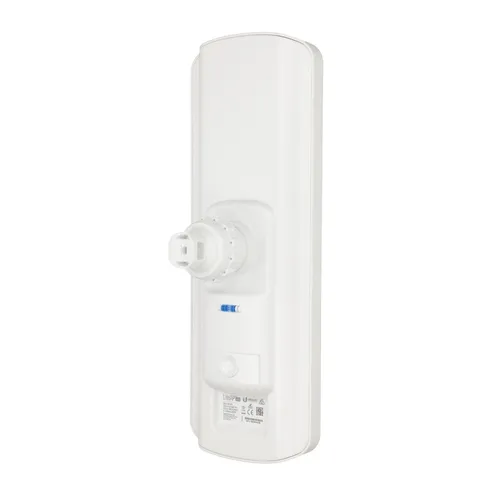

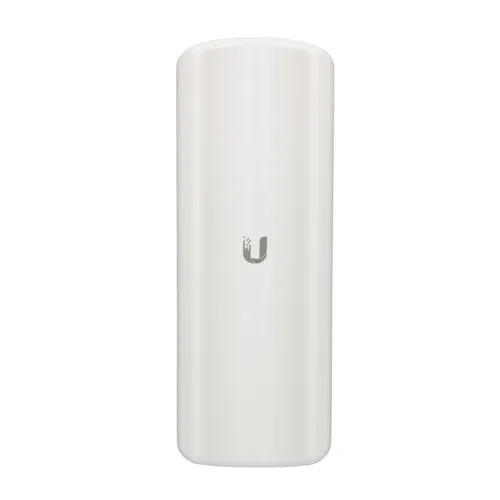

The LiteAP AC has a lightweight antenna with built-in radio in a simple design and a ball holder provides adjustment flexibility for versatile mounting options.
airOS® v8 is a revolutionary operating system for Ubiquiti® airMAX ac products.
Precise GPS frame synchronization allows LAP-GPS devices to collocate to send and receive data without interfering with each other, allowing for better frequency utilization and increased network stability.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 450 Mb/s |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | 5 GHz |
Antenna gain | 11dBi - 20dBi |
Antenna gain level (max) | 17 |
Antenna type | MIMO directional antenna |
Bandwidth note | 5150 - 5875 |
Built-in processor | Yes |
Cables included | AC |
Cabling technology | 10/100/1000Base-T(X) |
Certification | FCC, IC, CE |
CPU frequency | 533 MHz |
Depth | 124.6 |
Device type | Client device |
Frequency band | 5 |
Harmonized System (HS) code | 85177100 |
Height | 361 |
Horizontal beamwidth | 90° |
Input voltage | 24 |
Internal memory | 64 |
Internal memory type | DDR2 |
Mounting | Pole |
Mounting kit | Yes |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -40 - 70 |
Power consumption (max) | 7.1 |
Power source type | AC, PoE |
Processor frequency | 533 |
Processor model | Atheros MIPS 74Kc |
Product colour | White |
Quantity per pack | 1 |
Quick installation guide | Yes |
RAM memory | 64MB |
Sustainability certificates | RoHS |
Type of device power supply | Passive PoE |
Weight | 752 |
Width | 71.3 |
Weight (without handle) | 752 g (1.66 lb) |
Dimensions (without handle) | 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81") |
Mounting kit | Pole mount kit (included) |
Network interface | (1) 10/100/1000 Ethernet port |
Memory | DDR2 64 MB |
Maximum power consumption | 7.1W |
Maximum power TX | 25 dBm |
Antenna gain | 17 dBi |

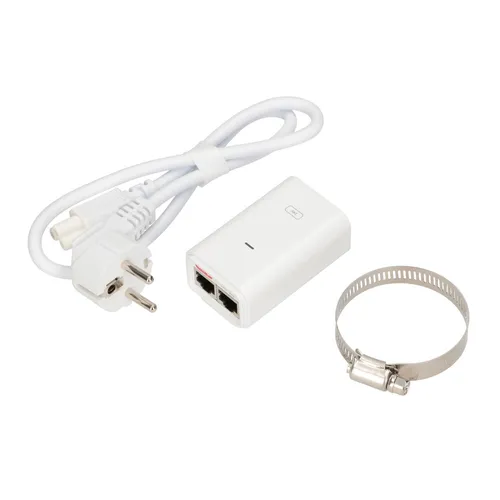

Power supply | 24V, 0.3A PoE adapter (included) |
Power supply method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Processor | Atheros MIPS 74Kc, 533 MHz |
Shocks and vibrations | ETSI300-019-1.4 |
ETSI specification | EN 302 326 DN2 |
ESD/EMP protection | ± 24 kV Contact / Air |
RoHS compliance | Yes |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Working humidity | 5 is 95% Noncondensing |
Certificates | FCC, IC, CE |
Frequency of operation (MHz) | |
World | 5150 - 5875 |
USA | U-NII-1 5150 - 5250 U-NII-3 5725 - 5850 |
Management Radio (MHz) | |
World | 2412 - 2472 |
USA | 2412 - 2462 |
Operating frequency 5 GHz
Operating temperature from -40 to 70° C (-40 to 158° F)
The antenna has a gain of 17dBi.
