Ubiquiti ER-12 | Router | EdgeMAX EdgeRouter, 10x RJ45 1000Mb/s, 2x SFP, 1x PoE

CODE: ER-12-EU / EAN: 0817882023962

Ubiquiti ER-12 | Router | EdgeMAX EdgeRouter, 10x RJ45 1000Mb/s, 2x SFP, 1x PoE

CODE: ER-12-EU / EAN: 0817882023962
167,79 GBP without VAT (net)
Out of stock
Number of LAN ports: 10x [10/100/1000M (RJ45)] ,  2x SFP (1,25G),
AC input frequency: 50 - 60
AC input voltage: 110 - 240
Access Control List (ACL): Yes
Show more parameters

About product

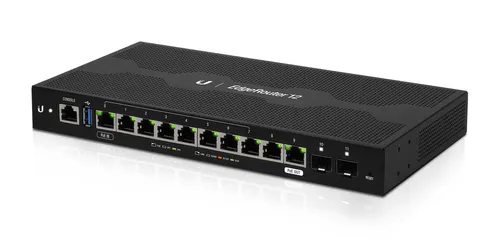

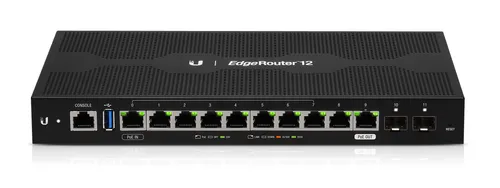

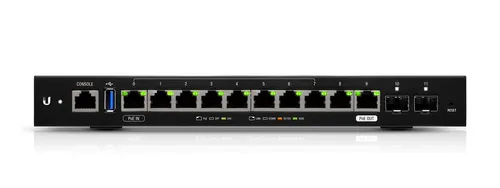

EdgeMAX ER-12 is a 10-port Gigabit router with PoE and 2 SFP ports

EdgeRouter™ 12 offers up to 3.4 million packets per second at data rates up to 6.8 Gbps. Ten Gigabit Ethernet ports provide Ethernet connectivity, while the two SFP ports offer fiber optic connectivity. EdgeRouter 12 supports layer 2 switching.

Universal design

EdgeRouter 12 can be mounted in a 19" Rack using the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).

ER-12 EDGEMAX GIGABIT SFP

Centralised management

EdgeRouter 12 is operated and managed by UNMS™ a comprehensive controller with an intuitive user interface. A single control system manages registered EdgeMAX® devices in multiple locations. Install UNMS application on your mobile device, connect to a wireless network that has access to EdgeRouter and log on to it. You can then view and configure various settings, such as interface information, throughput per port, and system settings.

Manage your network:

  • Configure multiple DHCP servers to assign IP ranges in different subnets on different interfaces.
  • Conveniently track your device's route and network activity from tools such as Ping, Trace, Discover and Log Monitor.
  • Apply the rules to groups filtered by IP address, network address or port number.
  • Network Interfaces (VLAN) for network segmentation.
  • Configuration of static routes and dynamic routing protocols.

EdgeOS® is an advanced operating system with robust features:

  • VLAN interfaces for network segmentation
  • Static routes and protocol support: OSPF, RIP, BGP and MPLS
  • Firewall and NAT rules
  • Identification of applications with Deep Packet Inspection
  • DHCP services
  • Quality of Service (QoS)
  • Network administration and monitoring tools
  • Administrator and operator accounts
  • Comprehensive IPv6 support
ER-12 EDGEMAX EDGEROUTER POE SFP

Specification

Features / filters
Number of LAN ports 10x [10/100/1000M (RJ45)] , 2x SFP (1,25G),
AC input frequency 50 - 60
AC input voltage 110 - 240
Access Control List (ACL) Yes
Antenna type Not supported
Built-in processor Yes
Cabling technology 10/100/1000Base-T(X)
Certification CE, FCC, IC
CPU frequency 1 GHz
DC-in jack Yes
Depth 136.5
DHCP client Yes
DHCP server Yes
DMZ support Yes
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 10
Ethernet LAN data rates 10,100,1000
Ethernet WAN Yes
Firewall Yes
Flash memory 4000
Harmonized System (HS) code 85176990
Height 31.1
Installed SFP modules quantity 2
Internal memory 1024
LED indicators Activity, Link, PoE
Management CLI - Command Line Interface, By web browser,
Mobile network generation No
Number of CPU cores 4
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) -10 - 50
Power over Ethernet (PoE) Yes
Power source type DC, PoE
Power supply 24
Processor architecture MIPS64
Processor cores 4
Processor frequency 1000
Product colour Black
Quality of Service (QoS) support Yes
Rack capacity 1U
Rack mounting Yes
RAM memory 1GB
Reset button Yes
Security algorithms IPSec,SNMP,SSH
Serial ports quantity 1
Storage media eMMC
Type of case Desktop
Type of device power supply Passive PoE, Power supply,
VLAN support Yes
Web-based management Yes
Weight 700
Width 268.1

Basic technical parameters
Dimensions 268,1 × 136,5 × 31,1 mm (10,55 × 5,37 × 1,22")
Weight 700 g (1.54 lb)
Max. Energy consumption 20W (excluding PoE power output)
Power supply method External AC/DC adapter, 24W
(24 V, 1A)
24 V passive PoE
Power supply External AC/DC power supply
Range of supported voltages DC 9 - 30VDC
24 V passive PoE 20 - 30 V
Button Reset
Network interface management (1) RJ45 Serial port
(10) Ethernet ports (default port 0)
Network communication interfaces (10) 10/100/1000 RJ45
(2) 1 Gbps Ports SFP
Layer 3 Data transmission efficiency Size of the package: 64 Bytes - 3,400,000 pps
Size of the package: 1518 Bytes or more - 6.8 Gbps (linear transmission speed)
Processor 4-Core 1 GHz, MIPS64
System memory 1 GB DDR3 RAM
Flash Memory 4 GB eMMC, 8 MB SPI NOR
Mounting Rack
Operating temperature -10 to 50° C
Operating humidity 10 - 90%
Certificates CE, FCC, IC
PoE
PoE interfaces Input PoE (1) 24 V Passive PoE port, 2 pairs (4, 5+; 7, 8-)
Output PoE (1) 24 V Passive PoE port, 2 pairs (4, 5+; 7, 8-)
Passive PoE Max. Power per port 20W (24 V, 0,83A)
PoE passive output DC/PoE Passthrough

Support

Datasheet Download

Faq

How to configure PoE settings?

1. Before activating PoE, make sure the connected device supports passive PoE and is powered.

2. On the Dashboard tab, select Actions > PoE port you want to configure.

poe edgeos

3. The Interface Configuration window will appear. Select the appropriate PoE setting and click Save.

poe edgeos

4. The PoE LED on the Ethernet port will confirm its operation.
poe edgeos
For detailed instructions on configuring other features, please refer to the EdgeOS user guide. The user guide is available at
https://www.ui.com/download/edgemax/
