Ubiquiti AF-3G26-S45 | Directional antenna | airFiber Dish, 3GHz, 26dBi

CODE: AF-3G26-S45 / EAN: 0810354023750

Ubiquiti AF-3G26-S45 | Directional antenna | airFiber Dish, 3GHz, 26dBi

CODE: AF-3G26-S45 / EAN: 0810354023750
52,18 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Antenna frequency: 3 GHz
Antenna type: Directional
Energy gain: 21dBi - 30dBi
Antenna gain level (max): 26
Show more parameters

About product

Compact footprint for flexible implementation

The airFiber X device together with the airFiber X antenna can be used as a high quality point-to-point bridge (PtP) or backhaul. AirFiber X supports diagonal polarization ± 45° to increase interference immunity and use SNR. The compact design allows airFiber X to be mounted on Ubiquiti antenna without the need for additional tools.

ubiquiti networks AF-3G26-S45 26dbi slant

Plug and Play function

AirFiber X antennas are designed for seamless integration with airFiber X radio systems.

Advanced radio isolation design

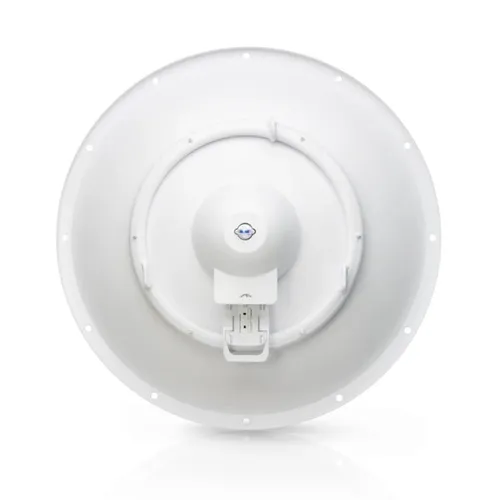

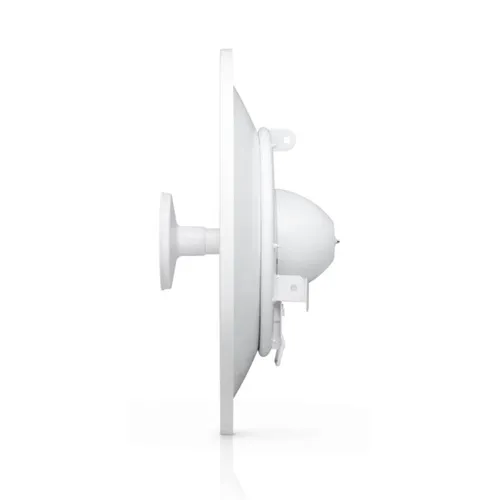

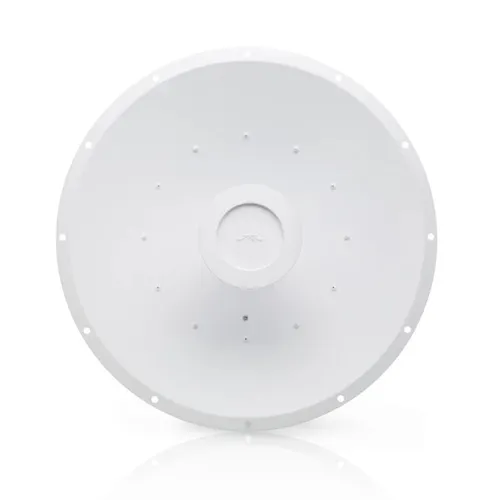

Ubiquiti AIRFIBER DISH SLANT 45 AF-3G26-S45 is a special directional antenna in the form of a dish, operating in the frequency band 3GHz and with a gain 26dBi. Innovative design improves radio signal isolation, significantly reducing interference and providing excellent amplification for high performance multi-point networks.

ubiquiti networks 3GHZ 26 DB dish antenna

Specification

Features / filters
Antenna frequency 3 GHz
Antenna type Directional
Energy gain 21dBi - 30dBi
Antenna gain level (max) 26
Application Outdoor
Compatible with brand Ubiquiti
Cross polarization isolation >35 dB
Diameter 65
Frequency band 3.3 - 3.8
Front-to-back ratio 33 dB
Harmonized System (HS) code 85177100
Horizontal beamwidth 7°
Polarization Double polarization (horizontal and vertical), Dual polarization,
Purpose Outdoor
Survival wind speed 200
Vertical beamwidth 7°
VSWR 1.4:1
Weight 9.8

Basic technical parameters
Dimensions 650 × 650 × 300 mm
Weight 9.8 kg
Frequency band 3.3 - 3.8 GHz
Gain 26 dBi
Radiant angle for + 45° 7° (3 dB)
Radiant angle for - 45° 7° (3 dB)
Reverse radiation 33 dB
Maximum VSWR 1.4:1
Wind load 787 N @ 200 km/h
Wind resistance 200 km/h
Polarisation Horizontal and vertical (dual)
Insulation between the polarization 35 dB Min.
ETSI EN 302 326 DN2
Mounting Universal pole bracket, mounting brackets for the airFiber X radio and waterproof coaxial cable for connecting the antenna

Support

Quick start guide Download
Datasheet Download

Faq

Installation of an external GPS antenna

Find a mounting spot with a clear view of the sky and is as far away from the antenna as possible.
1. Attach the GPS mount to the pole using a cable tie or attach it to a wall using appropriate mounting elements.

ubiquiti networks 3GHZ 26DBI PtP


2. Put the external GPS antenna on the mount.

ubiquiti AIRFIBER plug and play


3. Attach the GPS cable to the mount using a zip tie.

GPS ubiquiti AF-3G26-S45 antena airfiber

What is the antenna gain?

Antenna gain: 26 dBi

At what frequencies does the device operate ?

The frequency band: 3.3 - 3.8 GHz
