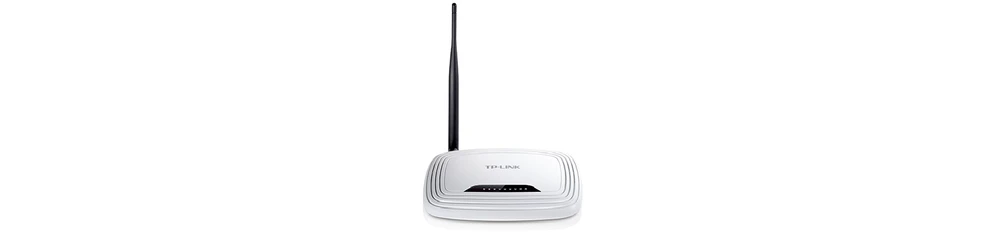

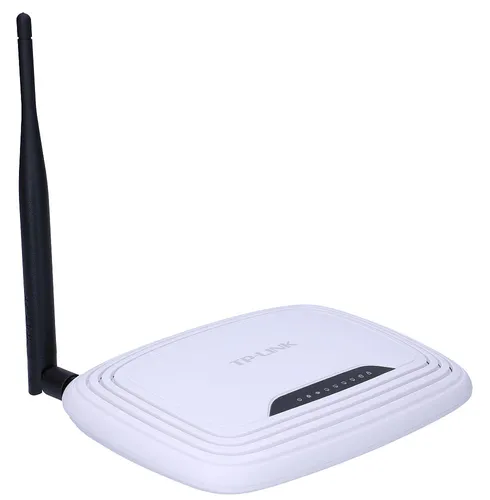

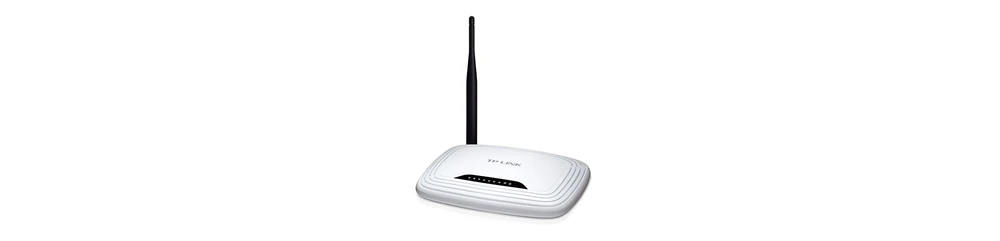

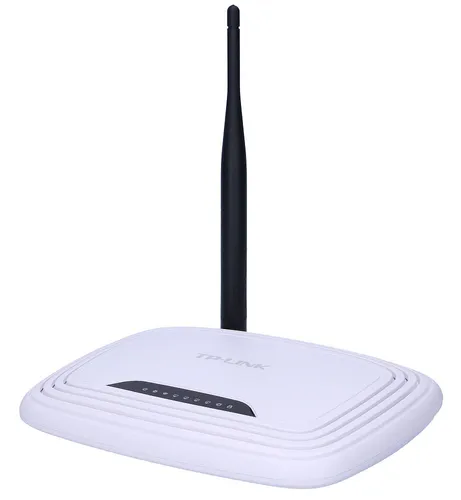

Router TP-Link TL-WR741ND combines the function of a 4-port switch with the function of a router enabling Wired and wireless connection and Internet access sharing. The device operates in accordance with 802.11b and g standards. Based on 802.11n technology, it provides high performance connections and transmission speed of 150 Mb/s. The 11n technology (an upgraded version of the 11g standard) increases data transfer rate and is used in applications requiring high bandwidth, such as video transfer. Excellent range of the router guarantees access to wireless network from any place in the house. In comparison with 11g standard products, the TL-WR741ND provides better quality of video transfer, VoIP and online gaming.
The IEEE 802.11b/g/n router standards ensure high network performance and therefore savings. Based on N technology, the TP-LINK TL-WR741ND device ensures transmission speed up to 150 Mbps, enabling transmission 9 times faster and 4 times longer range in comparison with 11g standard.
The Clear Channel Assessment (CCA) technology provides automatic selection of the optimal operating channel to avoid conflicts between channels and thus increase wireless transmission performance.
| Features / filters | |
| Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
| Equipment features | |

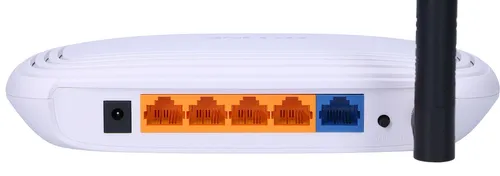

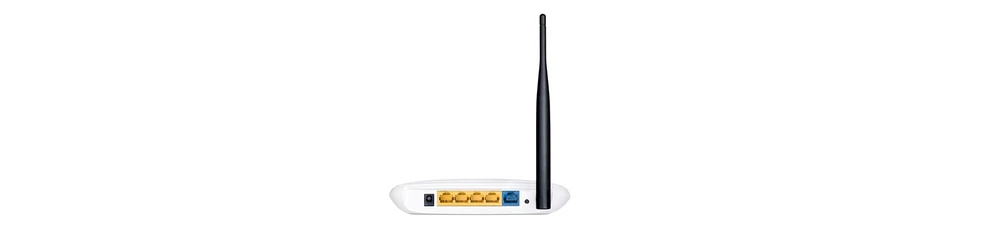

| Ports | 4 ports 10/100 Mb/s LAN 1 port 10/100 Mb/s WAN |
| Buttons | Switch WPS/RESET button |
| Power supply | 5 V DC/0,6 A |
| Wireless standards | IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b |
| Dimensions (S x G x W) | 174 x 118 x 33 mm (6.9 x 4.6 x 1.3 inches) |
| Antenna | 5 dBi, detachable, omnidirectional (RP-SMA) |
| Wireless transmission characteristics | |
| Frequency of operation | 2.4-2.4835 GHz |
| Transmission speed | 11n: up to 150 Mb/s (dynamic) 11g: up to 54 Mb/s (dynamic) 11b: up to 11 Mb/s (dynamic) |
| Receiver sensitivity | 130 M: -68 dBm @ 10% PER 108 M: -68 dBm @ 10% PER 54 M: -68 dBm @ 10% PER 11 M: -85 dBm @ 8% PER 6 M: -88 dBm @ 10% PER 1 M: -90 dBm @ 8% PER |
| EIRP | CE: < 20 dBm (2.4 GHz) FCC: < 30 dBm |
| Wireless transmission functions | Wireless transmission on/off, WDS bridge, WMM, wireless transmission statistics |
| Wireless transmission security | 64/128/152 bit encryption WEP/WPA/WPA2, WPA-PSK/WPA2-PSK |
| Software functions | |
| Quality of Service function | WMM, capacity control |
| WAN | Dynamic IP/Static IP/PPPoE/ PPTP (Dual Access)/L2TP (Dual Access)/BigPond |
| Management | Access control Local network management Remote management |
| DHCP | DHCP server/client, DHCP client list Reservation of addresses |
| Port forwarding | Virtual servers, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access control | Parental control, management panel access control, host list, access schedule, rule management |
| Firewall protections | DoS attack protection, SPI firewall Filtering of domains, IP and MAC addresses Binding of IP and MAC addresses |
| Protocols | Support IPv4 and IPv6 |
| Guest Network function | 2.4 GHz Guest Network x 1 |
| Other | |
| Certificates | CE, FCC, RoHS |
| Package contents | TL-WR741ND Detachable omnidirectional antenna Power supply Ethernet cable (RJ-45) CD Quick Installation Guide |
| System requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Working environment | Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
| Installation guide | Download |
