TP-Link TL-SG2210MP | Switch | 8x RJ45 1000Mb/s PoE+, 2x SFP, 150W

Name: TP-Link TL-SG2210MP | Switch | 8x RJ45 1000Mb/s PoE+, 2x SFP, 150W
Brand: TP-LINK
SKU: TL-SG2210MP
Price: 139.48 GBP
Availability: OutOfStock

CODE: TL-SG2210MP / EAN: 6935364030674

TP-Link TL-SG2210MP | Switch | 8x RJ45 1000Mb/s PoE+, 2x SFP, 150W Ilość portów LAN8x [10/100/1000M (RJ45)]

TP-Link TL-SG2210MP | Switch | 8x RJ45 1000Mb/s PoE+, 2x SFP, 150W

CODE: TL-SG2210MP / EAN: 6935364030674

139,48 GBP without VAT (net)

Out of stock

LAN standard: Gigabit Ethernet 10/100/1000 Mb/s

Number of LAN ports: 8x [10/100/1000M (RJ45)] , 2x SFP (1,25G),

Number of PoE ports: 8x [802.3af/at (1G)]

10G support: No

Show more parameters

About product

Software Defined Networking (SDN) with intelligent access

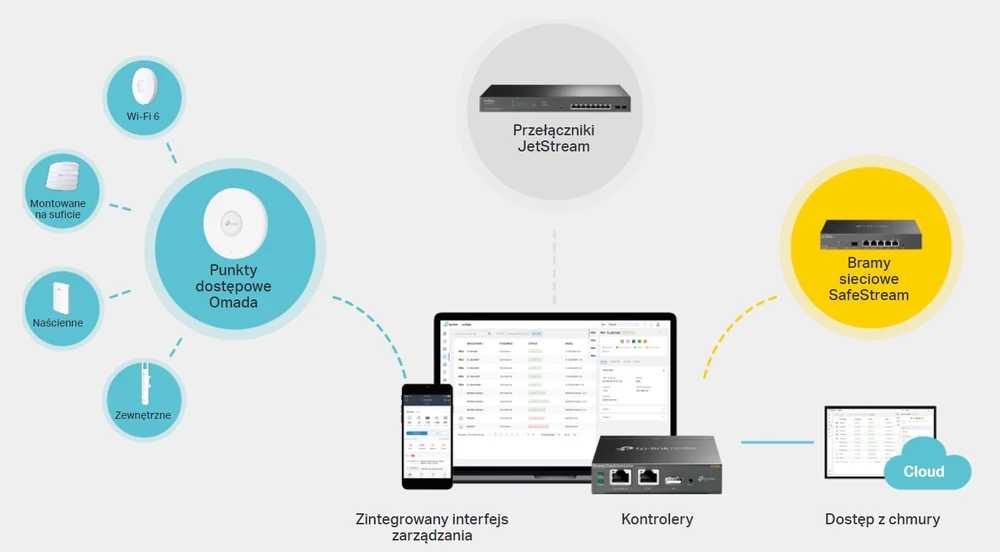

The Omada SDN platform integrates access points, switches and gateways to provide 100% centralized control over the cloud. Omada provides an easily scalable network managed from a single interface. Seamless, drop-free and drop-in connections are provided, which are ideal for use in hospitality, education, retail, office and other environments.

More features with the managed switch

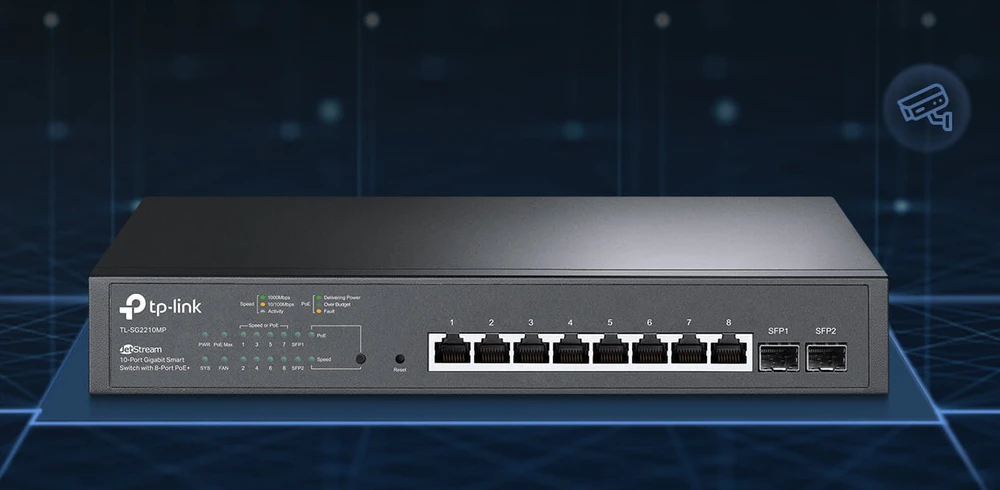

TP-Link TL-SG2210MP JetStream 8-Port Gigabit managed switch with PoE ports and 2 SFP slots

150W PoE power: 8 802.3at/af compliant PoE ports with a total power supply of up to 150Gigabit
Ports: 8 Gigabit PoE Ports and 2 Gigabit SFP Slots provide high connection speeds
Omada SDN: The platform provides access to unattended ZTP configuration, central cloud management and intelligent monitoring.
Centralized management: Management is extremely convenient with cloud-based access and the easy-to-use Omada app.
Strong security strategies: IP-MAC-Port Binding, ACLs, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication and more.
Voice and Video application optimization: L2/L3/L4 QoS and IGMP snooping.

Specification

Features / filters
LAN standard	Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports	8x [10/100/1000M (RJ45)] , 2x SFP (1,25G),
Number of PoE ports	8x [802.3af/at (1G)]
10G support	No
Access Control List (ACL)	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Copper ethernet cabling technology	10BASE-T,100BASE-TX
Depth	180
DHCP features	DHCP snooping,DHCPv6 snooping
Fiber ethernet cabling technology	100BASE-FX,1000BASE-X
Fiber optic connector	SFP
Fiber ports quantity	2
Flow control support	Yes
Forwarding rate	14.9
Harmonized System (HS) code	85176990
Height	44
Jumbo frames	9000
Jumbo frames support	Yes
Link aggregation	Yes
MAC address table	8000
Management	CLI - Command Line Interface, By web browser,
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Multicast support	Yes
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of fans	1
Number of queues	8
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	0 - 50
Packet buffer memory	0.5
Port mirroring	Yes
Power (W)	150
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	8
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Rack mounting	Yes
Rate limiting	Yes
Security algorithms	EAP-LEAP,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
Storage relative humidity (H-H)	5 - 90
Storage temperature (T-T)	-40 - 70
Switch layer	L2/L2+
Switch type	Managed
Switching capacity	20
Switching layer	2
System event log	Yes
Total Power over Ethernet (PoE) budget	150
Type of case	Desktop
Virtual LAN features	MAC address-based VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
VLAN support	Yes
Web-based management	Yes
Width	294

Hardware features
Standards and protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Ports	8 RJ45 10/100/1000 Mbps ports with PoE support (MDI/MDIX autonegotiation) 2 SFP 100/1000 Mbps slots
Network cabling	10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP/STP cable category 5, 5e or higher (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF
Fanless	1 Fan
Physical security features	Yes
PoE ports (RJ45)	802.3at/af compliant 8 PoE ports Total power supply: 150 W
Dimensions (H x W x D)	294 mm x 180 mm x 44 mm (11.6 x 7.1 x 1.7 inches)
Mounting	Rack cabinet Desk
Max. power consumption	12.2 W (110 V / 60 Hz with no PD connected) 173.9 W (110 V / 60 Hz with 150 W PD connected)
Amount of heat generated	41.63 BTU/h (without connected PD equipment) 539.35 BTU/h (with PD 150W connected)
Performance
Switching capacity	20 Gbps
Packet forwarding rate	14.9 Mpps
MAC Address Table	8K
Packet buffer	4.1 Mbit
Jumbo frames	9 KB
Software functions
Quality of Service function	- 802.1p CoS/DSCP prioritization - 8 priority queues - Priority scheduling mode - SP (Strict Priority) - WRR (Weighted Round Robin) - Queue Weight Config - Bandwidth Control - Bandwidth limitation based on port/flow - Smoother performance - Storm Control - Multiple control modes (kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2 functions	- DHCP Relay - DHCP VLAN Relay - DHCP L2 Relay - Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups containing 8 ports per group - Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect - Loop Detection - Flow Control - 802.3x - Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both - Device Link Detect Protocol (DLDP) - 802.1ab LLDP/ LLDP-MED
L2 Multicast	- 511 IPv4, IPv6 shared multicast groups - IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config - Multicast VLAN Registration (MVR) - Multicast Filtering - MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast (256 profiles, up to 16 entries per profile)
IPv6 Support	- IPv6 Dual IPv4/IPv6 - Multicast Listener Discovery (MLD) Snooping - IPv6 neighbor discovery (ND) - Maximum Transmission Unit (MTU) path discovery - Internet Control Message Protocol (ICMP) version 6 - TCPv6/UDPv6 - IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
VLANs	- VLAN groups - Max Groups 4K VLANs - 802.1Q Tagged VLAN - MAC VLAN - VLAN Protocol - GVRP - Voice VLAN
Access control lists	- Support up to 230 entries - Time range - Time slice - Weekly range - Continuous range - Days off - Time-based ACL - MAC ACL - Source MAC - Target MAC - VLAN ID - User Priority - Ether Type - IP ACL - Source IP - Target IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Target Port - DSCP/IP TOS - IPv6 ACL - Combined ACL - Operation Rules - Allow/Deny - Policy Action - Mirror - Rate Limit - Redirect - QoS Remark - ACL Policy Binding - Port binding - VLAN Binding - Actions for flows - Mirror (to a supported interface) - Redirect (to a supported interface) - Rate Limit - QoS Remark
Transmission security	- AAA - • 802.1X - Port-based authentication - MAC-based authentication (Host) - PAP/EAP-MD5 based authentication methods - MAB - Guest VLAN - Radius Authentication Support - IP/IPv6-MAC Binding - 512 entries - DHCP Snooping - DHCPv6 Snooping - ARP inspection - ND detection - IP Source Guard - 253 entries - Source IP Address Source MAC Address - IPv6 Source Guard - 183 entries - Source IPv6 Source MAC Address - DoS Defend - Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port - Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode - Port isolation - Secure Web Management over HTTPS with SSLv3/TLS 1.2 - Secure Command Line Interface (CLI) management with SSHv1/SSHv2 - Access control based on IP/Port/MAC
MIBs	MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support for Private TP-Link MIB RMON MIB(RFC1757, rmon 1,2,3,9)
Management
Omada application	Yes
Central management	Omada Cloud-based Controller Omada Controller Hardware (OC300) Omada Controller Hardware (OC200) Omada Software Controller
Access to the cloud	Yes (via OC300, OC200, Omada cloud-based controller or Omada software controller)
Management panel functions	GUI via browser Command Line Interface (CLI) via telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 Groups) SDM template DHCP/BOOTP Client Dual Image, Dual Configuration Processor Monitoring Cable Diagnostics EEE SNTP System Log
Other
Certificates	CE, FCC, RoHS
Contents of the package	TL-SG2210MP Switch Power Cable Installation Instructions Mounting hardware Rubber stands
System requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Work environment	Operating temperature: 0-50 ℃ (32-122 ℉); Storage temperature: -40–70 ℃ (-40–158 ℉) Operating humidity: 10-90% RH without condensation Storage humidity: 5-90% RH non-condensing

Support

Downloads:

Datasheet:	Download
User Guide	Download
Installation instructions	Download

Faq

Does the router have a Wi-Fi connection?

The TP-LINK TL-SG2210MP does not support Wireless LAN over Wi-Fi.
