TP-Link TL-MR3220 | Wireless WiFi/3G/4G router | 150Mb/s, 5x RJ45 100Mb/s, 1x USB

CODE: TL-MR3220 / EAN: 6935364051501

TP-Link TL-MR3220 | Wireless WiFi/3G/4G router | 150Mb/s, 5x RJ45 100Mb/s, 1x USB

CODE: TL-MR3220 / EAN: 6935364051501
15,52 GBP without VAT (net)
Out of stock
Wireless network standards: IEEE 802.11n,  IEEE 802.11g,  IEEE 802.11b,
3G: Yes
4G: Yes
Show more parameters

About product

TP-LINK TL-MR3220

TP-Link TL-MR3220 offers an easy and fast way of wireless Internet access for homes or small businesses. Equipped with 3G/4G modem, the fast 802.11n protocol can serve as a wireless access point or router with a maximum transmission speed of up to 150Mbps, which is enough for even more demanding activities such as streaming HD video, VoIP telephony or playing online games.

mr3220-1

Share your 4G freedom!

The TL-MR3220 allows you to share your LTE broadband connection with your family or friends wherever mobile coverage is available. You can instantly create a Wi-Fi hotspot by connecting a USB UMTS/HSPA/LTE modem to the router slot. The TL-MR3220 has a 4G/WAN failover function so you can stay online at all times. LTE routers from TP-LINK offer users a choice of 4G or WAN connection, where competing products offer only one or the other.

mr3220-2

150 Mbps in N standard and better coverage

Compatible with IEEE 802.11n standard, TP-Link TL-MR3220 can establish wireless network with transmission speed up to 150 Mb/s and minimize data loss over long distances. In addition, users can easily receive wireless signal from the router over longer distances than in the case of previous 11g products.

mr3220-3

Specification

Features / filters
Wireless network standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,
3G Yes
3G standards EVDO,HSDPA,HSPA+,HSUPA,UMTS
4G Yes
4G standard LTE
Antenna connector type RP-SMA
Antenna gain level (max) 5
Antenna type External
Antennas quantity 1
Cabling technology 10/100Base-T(X)
Certification CE, FCC, RoHS
DC-in jack Yes
Depth 138
Detachable antenna(s) Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 4
Ethernet LAN data rates 10,100
Ethernet LAN interface type Fast Ethernet
Ethernet WAN Yes
Filtering Yes
Frequency band 2.4
Frequency range 2.4 - 2.4835
Height 44
MAC address filtering Yes
Mac operating systems supported Yes
Mobile network connection Yes
Mobile network generation 4G
Modulation 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM
Network address translation (NAT) Yes
Networking standards IEEE 802.11b,IEEE 802.11g,IEEE 802.3u
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 40
Product colour Grey
Rack mounting No
Reset button Yes
Security algorithms 128-bit WEP,64-bit WEP,WEP,WPA-PSK,WPA2-PSK
Stateful Packet Inspection (SPI) Yes
Storage relative humidity (H-H) 5 - 95
Storage temperature (T-T) -40 - 70
Top Wi-Fi standard Wi-Fi 4 (802.11n)
USB ports quantity 1
Web-based management Yes
Wi-Fi standards 802.11b,802.11g,Wi-Fi 4 (802.11n)
Width 204
Windows operating systems supported Windows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultim
xDSL connection No

Equipment features
Ports USB 2.0 port to connect a USB LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO modem
1 port 10/100Mb/s WAN,
4 10/100Mbps LAN ports,
automatic negotiation of connection speed, automatic link crossover (auto-MDI/MDIX)
Buttons WPS/Reset button
Wireless Switch
Switch
Power supply 9VDC/0,85A
Dimensions (S x G x W) 204*138*44mm (8*5.4*1.7 inches)
Antenna type Omnidirectional, detachable, SMA RP connector
Antenna gain 5dBi
Wireless transmission characteristics
Wireless standards IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b
Frequency of operation 2.4-2.4835GHz
2.4-2.4835GHz <20dBm
Wireless transmission security 64/128 bit WEP, WPA-PSK/WPA2-PSK encryption, MAC address filtering
Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Software functions
Management Configuration via web browser (HTTP), software update via web browser
Transmission security NAT firewall, SPI, MAC/IP/URL address filtering, packets and applications; protection against Denial of Service (DoS), SYN Flooding, Ping of Death attacks
Other
Certificates CE, FCC, RoHS
Package contents TL-MR3220
1 antenna
Power supply
Ethernet cable
CD
Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux
Working environment Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90%, non-condensing
Storage humidity: 5%~90%, non-condensing

Faq

How to reset your TP-Link router to factory settings

A hard reset will restore the unit to its factory default settings. You should reconfigure the device from scratch or you can load a configuration file that you have backed up before resetting.

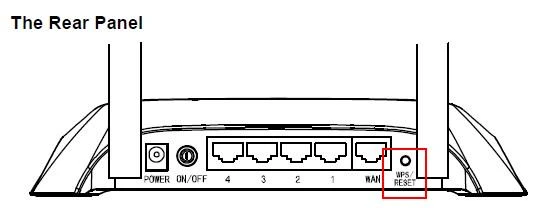

For these models we could see the WPS / RESET button on the rear panel / front panel. To use the WPS function, press the button for less than 5 seconds, then the WPS LED will start flashing; to reset the router, press the button for at least 10 seconds.

There are two methods of resetting to the factory settings of the router:



Method 1 : Hard reset / pressing the RESET button

When the router is on, press and hold the WPS / RESET button (longer than 10 seconds) until the SYS LED starts flashing rapidly from a slow flash. Then release the button and wait until the router restarts and returns to the factory default settings.

faq1

Method 2 : Through the router's network interface

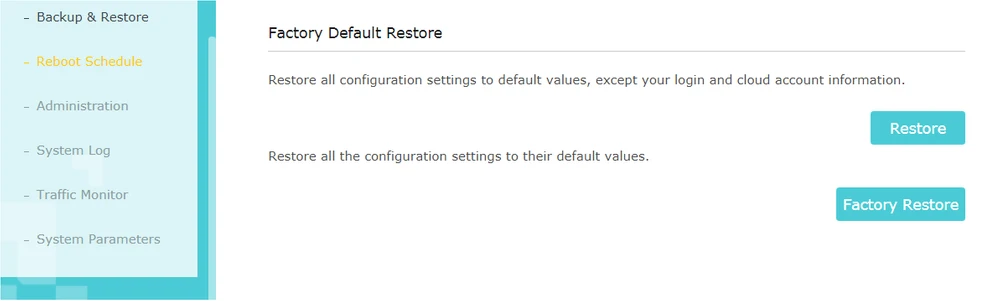

You can refer to How to log in to the Internet interface of Wi-Fi routers , then go to Advanced -> System Tools -> Backup and Restore -> Restore Factory Settings , then click on the Restore Factory Settings page and wait for the router to reboot and restore to the factory default settings.

faq-2

Attention, please:

Make sure that the router is powered on before restarting completely.

The default IP address/domain name can be found on the bottom of the product label, and the default username and password for login is admin (all lowercase letters).

2. How to change the IP address of a TP-Link wireless router?

Step 1 Open the web browser window, enter the IP address of the router into the address field (default value is 192.168.1.1). Then press the Enter key.

Step 2 To log in to the device's configuration page, enter the user name and password (the default value of both fields is: admin).

Step 3

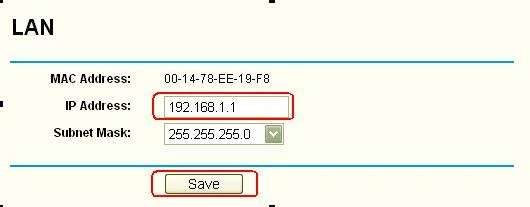

Select Network->LAN from the menu on the left side of the window. Change the IP address to the correct one.

Step 4 To save the settings, press the Save button.

Note: After changing the IP address on the router, you also need to change the IP address of your computer on the network. You need to reconfigure the computer's TCP/IP parameters or download the new IP address (in case of automatic IP address acquisition settings). Then log in to the router's configuration page using the new IP address.

3. how to open the ports of a TP-Link wireless router?

Step 1 Open the web browser window, enter the IP address of the router into the address field (default value is 192.168.1.1). Then press the Enter key.

Step 2 To log in to the device's configuration page, enter the user name and password (the default value of both fields is: admin).

Step 3 From the left-hand menu select Forwarding->Virtual Servers and then press the Add New... button. .

Step 4 In the Service port field, enter the port type. In the IP Address field, enter the IP address of your computer. Select TCP, UDP or ALL from the Protocol drop-down list. Change the status field to Enabled.

Step 5 To save the settings, press the Save button.

Attention, please:


If you open port 80 to operate the Web server, the port used to manage the device will be changed to 8080. To connect to the router, enter the address: Http://192.168.1.1:8080.
