The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.
| Features / filters | |
| Antenna frequency | 4G LTE, GPS 1575,42 MHz, Dual-Band (2,4GHz, 5GHz), |
| Energy gain | <10 dBi |
| Antenna connector type | SMA |
| Antenna gain level (max) | 28 |
| Antenna type | MIMO directional antenna |
| Application | Outdoor |
| Cable length | 3 |
| Cable type | 5x RG174 |
| Connector gender | Female/Female |
| Connector type | 3x SMA, 2x RP-SMA, |
| Diameter | 11 |
| Frequency band | 1.57542-1.61; 0.698-0.96/1.71-2.69; 2.4-2.4835/4.9-5.825 |
| Harmonized System (HS) code | 85177100 |
| Height | 55 |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Impedance | 50 |
| Input voltage | 3-5 |
| International Protection (IP) code | IP67 |
| Polarization | Linear, Linear polarization, |
| Power consumption | 15 |
| Product colour | Black |
| Sustainability certificates | RoHS |
| Voltage Standing Wave Ratio (VSWR) | 2/2.5/3 |
| Weight | 550 |
| GNSS antenna specifications | |
| Frequency range | 1575.42-1610 MHz |
| Polarisation | RHCP |
| Impedance | 50 Ω |
| LNA reinforcement | 28±2 dB |
| LNA Noise Figure | < 1.5 dB |
| Supply voltage | 3-5 V DC |
| Power consumption | < 15 mA |
| LNA V.S.W.R. | < 2.0 |
| Connector | Male SMA |
| LTE antenna specifications | |
| Frequency range | 698-960/ 1710-2690 MHz |
| Polarisation | Linear |
| Strengthening | 3 dBi |
| V.S.W.R. | < 3.0 |
| Impedance | 50 Ω |
| The link | 2 x male SMA |
| Wi-Fi antenna specifications | |
| Frequency range | 2400-2483.5/ 4900-5825 MHz |
| Polarisation | Linear |
| Strengthening | 2 dBi |
| V.S.W.R. | < 2,5 |
| Impedance | 50 Ω |
| The link | 2 x RP SMA male |
| Physical characteristics | |
| Assembly method | Screw |
| Level of protection | IP67 |
| Material | ABS |
| Weight | < 550 g |

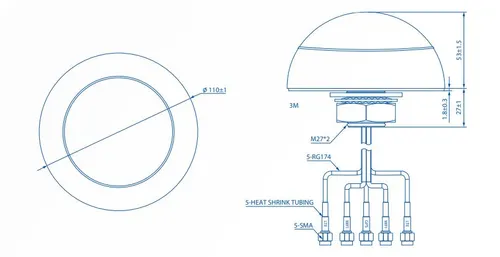

| Dimensions of the housing | Ø 110 x 55 mm |
| Cable | 5 x RG174, 3000 mm |
| Compliance with RoHS Directive | Yes |
