Risen Energy RSM120-6-325M Mono | Solar panel | 325W, Half Cut, Monocrystalline

CODE: RSM120-6-325M

Risen Energy RSM120-6-325M Mono | Solar panel | 325W, Half Cut, Monocrystalline

CODE: RSM120-6-325M
75,77 GBP without VAT (net)
Out of stock
Power (W): 325
Show more parameters
Power (W):
325

About product

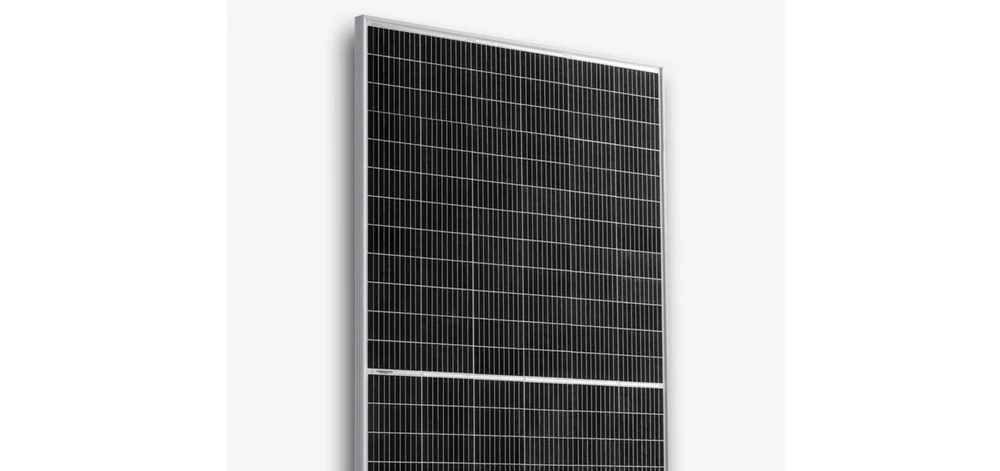

Risen Energy photovoltaic panels

Risen Energy is a leading global manufacturer of high-performance tier 1 photovoltaic products and a provider of end-to-end business solutions for residential, commercial and consumer power generation.

RISEN ENERGY MODULE PV RSM144-6-405M MONO PERC HALF CUT MODULE

Key features

  • Excellent performance at low radiation intensity
  • Less internal losses
  • Positive power tolerance of 3%
  • Industry-leading lowest thermal power factor
  • Industry-leading 12-year product warranty
  • Guaranteed reliability and strict quality guarantees going well beyond certified requirements
RISEN ENERGY MODULE PV RSM144-6-405M MONO PERC HALF CUT MODULE

Certificate confirming resistance to harsh environmental conditions

  • Anti-reflective and anti-soiling surface minimizes power loss due to dirt and dust
  • Resistance to heavy salt spray, ammonia and blown sand, for coastal, agricultural and desert environments
  • Excellent resistance to mechanical loads 2400Pa and snow load 5400Pa

Specification

Features / filters
Power (W) 325

Electrical data (STC)
Maximum power Pmax 325W
Open circuit voltage Voc 40.1V
Closed circuit current Isc 10.20A
Voltage at maximum power point Vmpp 33.90V
Current intensity at maximum point. of power Impp 9.60A
Module performance 19.3%
Electrical data (NMOT)
Maximum power Pmax 243.3W
Open circuit voltage Voc 36.90V
Closed circuit current Isc 8.36A
Voltage at maximum power point Vmpp 31.10V
Current intensity at maximum point. of power Impp 7.83A
Mechanical data
Links Monocrystalline, 9BB, 120 cells (6x10+6x10)
Dimensions 1689x996x35mm
Weight 19.5kg
Windscreen of tempered glass with high transmission and low content
iron (low iron), 3,2 mm
Back panel White
Box Anodized aluminium alloy, silver
Junction box Protection class IP68, 3 bypass LEDs
Cable 4.0 mm², length (+) 1200 mm, (-) 1200 mm
The link Risen Twinsel PV-SY02 - IP68, compatible with MC4
Temperature coefficients
Nominal module temperature during operation (NMOT) 45°C±2°C
Voc -0.290%/°C
Isc 0.050%/°C
Pmax -0.370%/°C
Operating temperature -40°C~+85°C
Maximum system voltage 1500V
Max. nominal fuse current 20A
Reverse current limitation 20A
75,77 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
