Orvaldi sinus 600 LCD | UPS | 600VA/360W, 7Ah

CODE: VPS600 / EAN: 5904006036047

Orvaldi sinus 600 LCD | UPS | 600VA/360W, 7Ah

CODE: VPS600 / EAN: 5904006036047
92,46 GBP without VAT (net)
Out of stock
Battery voltage in UPS: 12V
UPS power (VA): 600
Audible alarm(s): Yes
Show more parameters
UPS power (VA):
600
800

About product

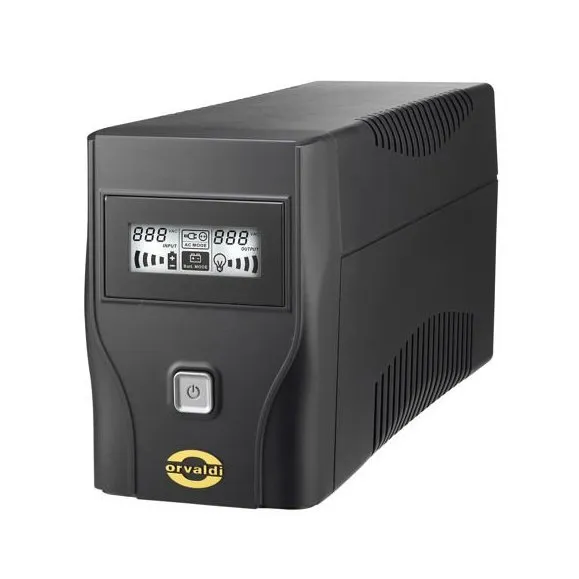

Orvaldi sinus 600 LCD - intelligent microprocessor control

This model is a small UPS with pure sine wave output for computer protection with a demanding switching power supply and active PFC filter; ideal for powering CO stove pumps or fireplace pumps.

orvaldi_sinus_600lcd_foto

TheOrvaldi Sinus 600 LCD is an advanced UPS in line-interactive topology based on full microprocessor control. Sinus 600 LCD works with the latest technology and high efficiency to deliver pure sine wave to the protected loads both in mains and battery operation. This model stands out:

  • The shape of the voltage at the UPS output,
  • very quiet operation during battery mode
Thanks to these features, the versatility of application of this device serves a wide range of switching power supplies (passive PFC) . If we encounter a situation in which there is a break in the supply voltage, it can immediately supply the energy stored in the batteries without any interruption. The switching time to battery operation and vice versa is carried out within 2 to 10 ms .

What are the characteristics of the Orvaldi Sinus 600 LCD?

  • Provides pure sinusoidal output voltage shape,
  • Excellent power protection for servers, gaming PCs and any load with active PFC filter,
  • Boost and AVR for voltage stabilization,
  • Three-stage charging optimizes battery performance,

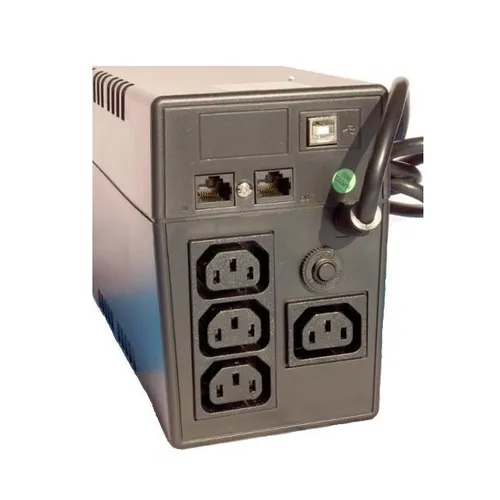

  • With built-in USB and RJ-45 communication port

Specification

Features / filters
Battery voltage in UPS 12V
UPS power (VA) 600
Audible alarm modes Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Audible alarm(s) Yes
Battery capacity 7
Battery voltage 12
Depth 328
Form factor Compact
Height 145
Input frequency 50/60
Input operation voltage (max) 240
Input operation voltage (min) 220
Number of batteries supported 1
Output power 360
Output power capacity 0.6
Product colour Black
UPS topology Line-Interactive
Waveform Pure sine
Weight 5.2
Width 100

Model ORVALDI sinus 600
Capacity 600 VA / 360 W
Voltage 220/230/240 VAC
Voltage range 162-290 V AC
Frequency range 60/50 Hz (auto sensing)
AC Stabilized voltage (Batt. mode) /- 10%
Frequency range 50 Hz /- 1 Hz
Voltage shape Sine Wave (pure sine wave)
Switchover time Typically 2 m, 6-10 ms max.
Battery type 12V / 7Ah x 1
Typical charging time 4 hours to 90% capacity
Security Protection against overloading, deep discharge and overcharging of the battery
LCD panel AC, battery mode, load level, battery level, input voltage, input voltage, overload, fault, Low Battery
Battery operation Beep every 10 seconds
Low battery Beep every second
Overload Beep every 0.5 seconds
Battery replacement Beep every 2 seconds
Error Continuous signal
Dimensions - length x width x height (mm) 328 x 100 x 145
Net weight (kg) 5.2
Noise level Less than 40 dB
USB (cable supplied) Support Windows © 2000/2003/XP/Vista/2008,
Windows © 7, Linux, Unix and MAC (software downloadable
- free of charge)

Support

Operating Instructions Download

Faq

1. what is the Orvaldi sinus 600 LCD used for?

Provides protection for a computer with a demanding switching power supply and active PFC filter; ideal for powering CO stove pumps or fireplace pumps.

2. how long does it take to charge?

The built-in smart charger provides 90% charge in as little as 4 hours.

3. what if constant power returns?

An auto-restart occurs when the AC power returns.

4. how is it different from other UPS?

It is distinguished by its amazing capacity, power and sinusoidal voltage shape. Beyond that, it differs in size, weight and battery type.
