MikroTik LHG 5 ac | CPE | RBLHGG-5acD, 5GHz, 1x RJ45 1000Mb/s, 24dBi

Name: MikroTik LHG 5 ac | CPE | RBLHGG-5acD, 5GHz, 1x RJ45 1000Mb/s, 24dBi
Brand: MIKROTIK
SKU: RBLHGG-5ACD
Price: 57.79 GBP
Availability: Discontinued

CODE: RBLHGG-5ACD / EAN: 4752224003904

MikroTik LHG 5 ac | CPE | RBLHGG-5acD, 5GHz, 1x RJ45 1000Mb/s, 24dBi

CODE: RBLHGG-5ACD / EAN: 4752224003904

57,79 GBP without VAT (net)

Out of stock

LAN standard: Gigabit Ethernet 10/100/1000 Mb/s

Maximum wireless transmission speed: 867 Mb/s

Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)

Operating frequency: 5 GHz

Show more parameters

About product

MikroTik LHG 5 ac | Client device

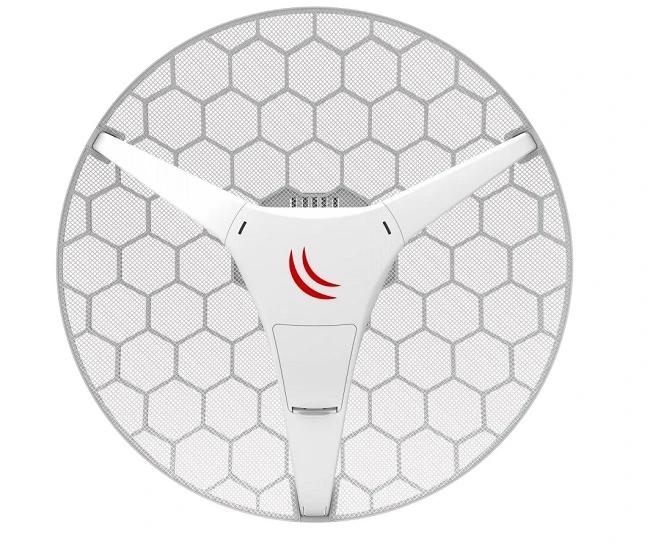

Mikrotik Routerboard RBLHGG-5acD LHG 5 ac is a compact and lightweight wireless 5GHz 802.11ac with a built-in 24.5 dBi dual-polarized antenna at a revolutionary price. It is perfect for point-to-point or CPE connections over longer distances and supports Nv2 TDMA protocol. The device contains one 10/100/1000 Mbit Ethernet Gigabit Ethernet port for full speed utilization provided by the 802.11ac protocol. The grid design provides wind protection, and the fact that the antenna element is built into the wireless unit means no loss from cables. Ask us a question - we will be happy to help you. In our shop you will also find: welders and fiber optic cables, ip cameras, cpe clients, extraction brackets, rack cabinets, sfp modules, wireless routers, media converters, poe adapters, buffer power supplies, access points, antenna brackets, rack cabinets, monitoring sets and many others.

Features:

Operation in the 5 GHz band
25 dBm radio
802.11ac standard
Double polarity (2x2 MIMO / dual-chain)
Mesh antenna 391 mm in diameter and with 24 dBi gain
Power supply via PoE (voltage 10 - 30 V DC)
RouterOS system with Level 3 license

Specification

Features / filters
LAN standard	Gigabit Ethernet 10/100/1000 Mb/s
Maximum wireless transmission speed	867 Mb/s
Number of LAN ports	1x 10/100/1000BaseTX (RJ45)
Operating frequency	5 GHz
Wireless network standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n,
2.4 GHz	No
5 GHz	Yes
AC input voltage	10 - 30
Antenna gain	21dBi - 30dBi
CPU frequency	717 MHz
Depth	391
Device type	Client device
Ethernet LAN (RJ-45) ports	1
Flash memory	16
Harmonized System (HS) code	85176990
Height	222
Internal memory	256
Maximum data transfer rate	1000
Networking standards	IEEE 802.11ac
Operating temperature (T-T)	-40 - 70
Package depth	450
Package height	145
Package weight	1.98
Package width	450
Placement	Wall
Power consumption (max)	10
Power over Ethernet (PoE)	Yes
RAM memory	256MB
Type of device power supply	Passive PoE
WAN connection	Ethernet (RJ-45)
Weight	560
Width	391

Basic technical parameters
Product code	RBLHGG-5acD
CPU frequency	716 MHz
Amount of memory	16 MB Flash
10/100 Ethernet ports	1
Wireless	Internal 5 GHz 802.11a/n/ac, dual-chain
Rules for wireless communications	The specific frequency range may be limited by national regulations
Wireless chip	IPQ-4018
Frequency range	5150 - 5875 MHz
Antenna gain	24 +/- 0.5 dBi
Beam width	7°
PoE input	Yes
Supported voltage range	10 V - 30 V (passive PoE)
Wind load	186N @ 205 km/h
Operating temperature	-40 to 70° C
Operating humidity	5 to 95%
Shocks and vibrations	ETSI300-019-1.4
ETSI specification	EN 302 326 DN2
Dimensions	Ø 391 x 222 mm; in pack 450 x 450 x 145 mm
Weight	the device: 560 g; with packaging: 1.98 kg
Energy consumption	7 W
OS Licence level	level 3

Support

Brochure RBLHGG-5ACD	Download
Instruction RBLHGG-5ACD	Download

Faq

What is the LHG 5 AC?

In short, it is a lightweight radio device integrated with an antenna with 24.5 dBi gain and 25dBm transmitter power.

Application of wireless wire dish rblhgg60adkit

Ideal for point-to-point connections or as CPE. Performance is ensured by 4-core CPU, 256 MB RAM and 1Gbps Ethernet port.

Capacity of the LHG 5 AC RBLHGG-5ACD

Theoretical throughput (802.11ac standard) is up to 866 Mb/s
