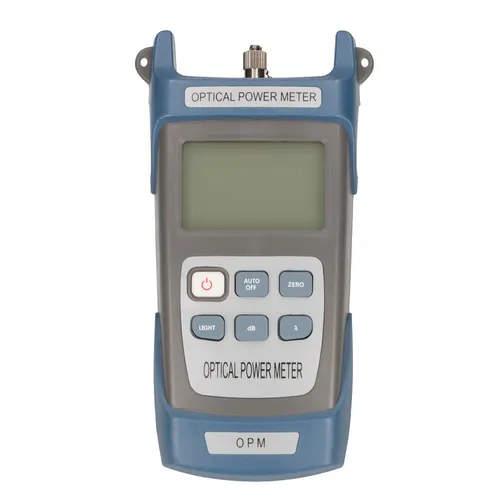

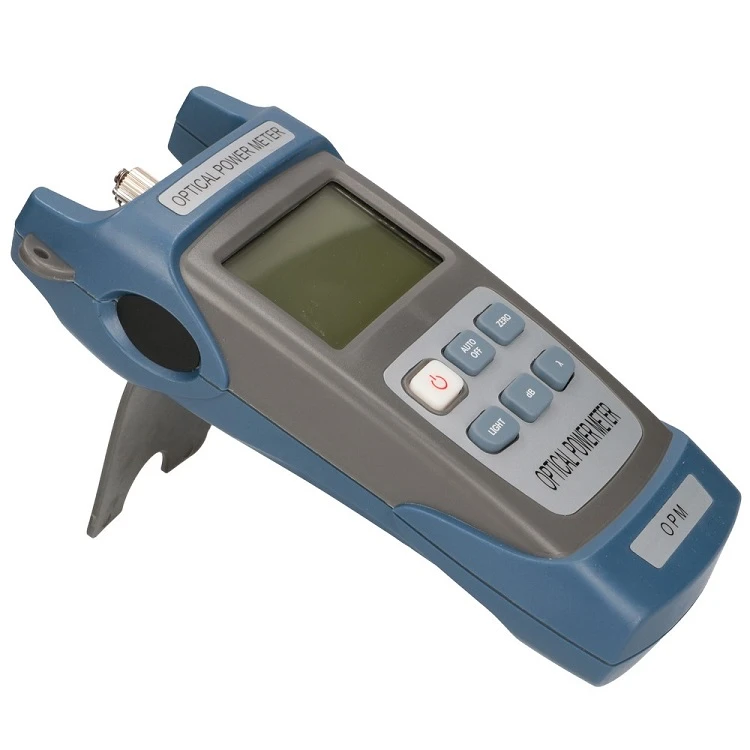

The optical power meter WT-3053 is the latest test device for absolute power measurement and relative loss measurement of optical fibre. It is characterized by a modern design, large LCD display, optional automatic switch-off function, wide power measurement range, high measurement precision, automatic calibration function and universal adapters. It is an ideal test device for self-testing of optical power and fiber optic attenuation. WT-3053 is an indispensable equipment for every installer.
| Features / filters | |
| Battery type | AA |
| Built-in display | Yes |
| Display type | LCD |
| Easy to use | Yes |
| Number of batteries supported | 3 |
| Power range | -70 - 3 |
| Product colour | Blue |
| Product type | Optical power meter |
| Sensor type | InGaAs (Indium Gallium Arsenide) sensor |
| Supported connectors | BNC |
| Basic technical parameters | |
| Wavelength range | 800~1600 nm (850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm) |
| Detector | InGaAs |
| Measuring range | -70 dBm~+3 dBm |
| Uncertainty | ± 0.15 dB |
| Relative power measurement | Linear 0.1% or non-linear 0.01 dBm |
| Operating temperature | -10°C~60°C |
| Storage temperature | -25°C~70°C |
| Battery life | 130 h |
| Power supply | Alkaline batteries (3 AA 1.5 V batteries) |
| Weight | 225 g |
| Dimensions | 148 mm × 74 mm × 28 mm |
When choosing a meter, its measuring range should be used. For short distance measurements, use devices with a range beginning with a large positive value, and for long distance measurements, the range should end with large negative values. The Extralink WT-3053 Optical Power Meter with a range of -70~+3dBm is the perfect choice for precise measurements of very weak light sources.
