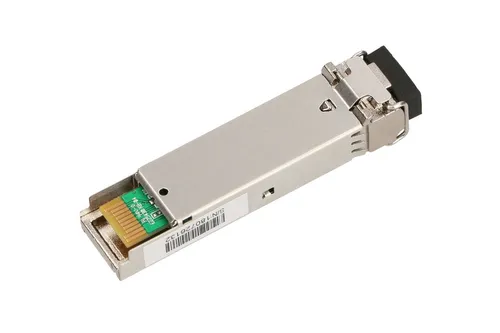

Extralink SFP 1.25G | SFP CWDM Module | 1,25Gbps, 1510nm, single mode, 40km, LC, DOM

CODE: EX.13599 / EAN: 5903148913599

Extralink SFP 1.25G | SFP CWDM Module | 1,25Gbps, 1510nm, single mode, 40km, LC, DOM

CODE: EX.13599 / EAN: 5903148913599
21,80 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Output connector: LC
SFP module - port speed: 1,25 Gbps
Transmission distance: Over 20km
Coarse Wavelength Division Multiplexing (CWDM): Yes
Show more parameters
Wavelength:
1470 nm
1490 nm
1510 nm
1530 nm
1550 nm
1570 nm
1590 nm
1610 nm

About product

Cost-effective 1.25G 1510NM SM 40KM LC DDM CWDM SFP module

The Extralink SFP CWDM 1.25G 1510NM optical module is a single-mode SFP insert designed for serial optical data transmission. The transceiver allows data transmission at speeds of up to 1.25Gbps over distances of up to 40km. The SFP CWDM optical module is equipped with an LC output connector. It features low power consumption. The Extralink SFP CWDM 1.25G optical SFP module has a Class 1 laser safety certificate and complies with SFF-8472.

SFP CWDM 1.25G 1510NM SM 40KM LC DDM

Special features

  • Data throughput of up to 1.25Gbp
  • CWDM DFB laser transmission
  • Transmission of up to 40KM on SMF.
  • Compliant with SFF-8472
  • 3.3V power supply
  • Operating temperature from 0˚C to 70˚C
  • Duplex LC connector
  • Class 1 laser safety certification
  • Low power consumption
SFP CWDM 1.25G 1510NM SM 40KM LC DDM

Specification

Features / filters
Output connector LC
SFP module - port speed 1,25 Gbps
Transmission distance Over 20km
Coarse Wavelength Division Multiplexing (CWDM) Yes
Digital Diagnostics Monitoring (DDM) Yes
Easy to install Yes
Fiber optic connector LC
Fiber type SM (Single-Mode)
Housing material Metal
HP segment Enterprise
Interface type SFP
Manual Yes
Maximum data transfer rate 1250
Maximum transfer distance 40000
Multi-mode fiber (MMF) supported No
Number of products included 1
Plug and Play Yes
Product colour Stainless steel
SFP transceiver type Fiber optic
Single-mode fiber (SMF) supported Yes
Sustainability certificates CE, RoHS
Type of SFP duplex Wavy (WDM)
User guide No
Wavelength 1510 nm, 1510,
Wavelength-division multiplexing (WDM) No

Specification

Basic technical parameters
Transmission speed Up to 1.25Gbps
Distance up to 40km
Type SFP
Output connector LC
Transmission type Single-Mode
Type of duplex CWDM
Housing temperature during operation 0 to 70°C
Supply voltage 3.15~3.45V (optimally 3.3V)
Supply current max. 290mA
Optical characteristics
Average output power -3~3dBm
Central wavelength (sending) lc-6.5~lc 6.5 nm (optimally lc)
Extinction coefficient min. 8.2dB
Spectral width (RMS) max. 1nm
Side mode attenuation coefficient min. 30dB
Optical growth / Descent time (20% ~ 80%) max. 0.26dB
Jitter max. 0.43dBm
Output optical mask Compliant with IEEE 802.3z
Reception sensitivity min. -24dBm
Central wavelength (reception) 1260~1620nm
Receiver overload min. -3dBm
LOS De-Assert max. -25dBm
LOS Assert min. -35dBm
LOS Hysteresis 1~4dB
