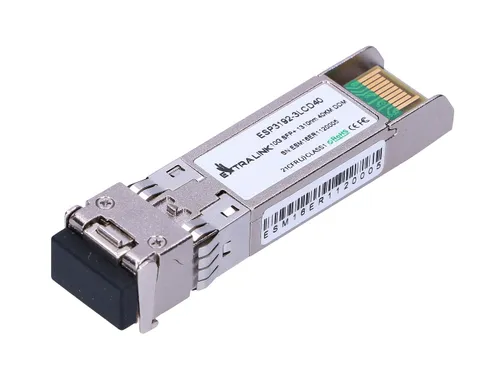

Extralink SFP+ 10G | SFP+ Module | 10Gbps, LC/UPC, 1310nm, 40km, single mode, DOM
CODE: EX.8048 / EAN: 5902560368048

Extralink SFP+ 10G 1310NM is used to transmit and receive optical data via single mode optical fibre for link lengths up to 40 km. The electrical interface of the SFP+ 10G 1310NM is compliant with the SFI electrical specification. Transmitter input differential impedance and receiver output are 100 ohm (Ω). Thanks to its metal housing, the SFP LC duplex module has a very low EMI. The SFP 1310NM optical insert allows transmission at a speed of up to 10 Gbps and is compliant with 802.3ae 10G BASE-ER.
Features / filters | |
Output connector | LC |
SFP module - port speed | 10 Gbps |
Transmission distance | Over 20km |
Certification | FCC |
Digital Diagnostics Monitoring (DDM) | Yes |
Fiber optic connector | LC (UPC) |
Fiber type | SM (Single-Mode) |
Interface type | SFP+ |
Maximum data transfer rate | 10000 |
Maximum operating temperature | 70 |
Maximum transfer distance | 40000 |
Minimum operating temperature | -5 |
Number of products included | 1 |
Power consumption (typical) | 1.5 |
SFP transceiver type | Fiber optic |
Single-mode fiber (SMF) supported | Yes |
Sustainability certificates | CE, RoHS |
Type of SFP duplex | Physical (two fibers) |
Wavelength | 1310 nm, 1310, |
Basic technical parameters | |
Transmission speed | Up to 10 Gbps |
Distance | Up to 40 km |
Type | SFP+ |
Output connector | LC |
Type of transmission | Single-Mode |
Type of duplex | Physical (two fibres) |
Power dissipation | < 1.5 W |
Casing temperature during operation | -5°C~70°C |
