Extralink Diana | Fiber optic distribution box | 12 core

CODE: EX.0325 / EAN: 5902560360325

Extralink Diana | Fiber optic distribution box | 12 core

CODE: EX.0325 / EAN: 5902560360325
2,80 GBP without VAT (net)
Out of stock
Housing material: Polycarbonate (PC)
International Protection (IP) code: IP65
Mast mountable: No
Number of fibres supported (max): 12
Show more parameters

About product

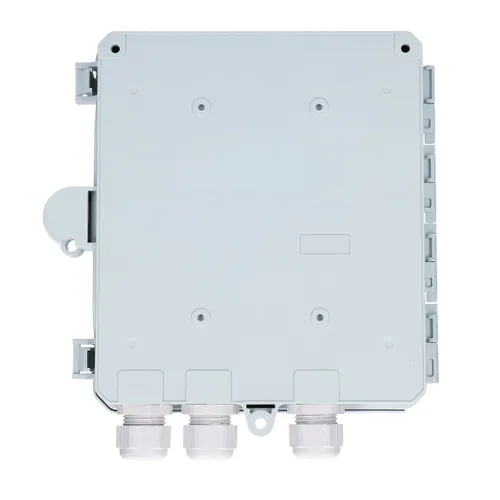

EXTRALINK DIANA 12 CORE fibre optic enclosure box

EXTRALINK BETTY 4 CORE serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic closure box can be used for fiber linking, splitting and distribution. It also provides solid protection and gives the possibility to manage the FTTx network building.

extralink diana 12 core fibre optic box

Features:

  • Fully enclosed structure
  • Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65
  • Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
  • Cables, pigtails, crossover cables run on their own path
  • Installation of the SC-type adapter
  • Easy maintenance
  • The control panel can be inverted and the power cable is articulated

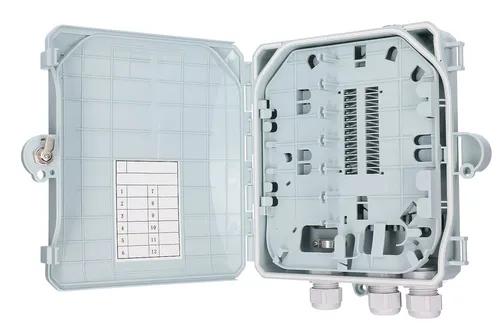

12 core optical fibre box

Technical data on lightning resistance

The grounding device is insulated with a housing, the insulation resistance is not less than 2 104 M/500V (DC); IR2 104M/500V. The static voltage between the grounding device and the housing is not less than 3000V(DC)/min, without puncture; U3000V.

cheap can 12 core

Specification

Features / filters
Housing material Polycarbonate (PC)
International Protection (IP) code IP65
Mast mountable No
Number of fibres supported (max) 12
Number of splice trays supported (max) 1
Product colour Grey
Suitable for indoor use Yes
Suitable for outdoor use Yes
Wall mountable Yes

Basic technical parameters
Max. number of welds 12
Type Can
Colour Grey
Insertion loss 0.2dB
Loss of UPC 50 dB
Loss of APC 60 dB
Lifetime of insertion and removal 1000 times
Operating temperature -40~+85 C
Relative humidity 85%(+30)
Atmospheric pressure 70KPa~106Kpa
2,80 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Out of stock
