Extralink 9U 600x450 Gray | Rackmount cabinet | wall mounted

CODE: EX.8574 / EAN: 5902560368574

Extralink 9U 600x450 Gray | Rackmount cabinet | wall mounted

CODE: EX.8574 / EAN: 5902560368574
64,68 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Cabinet hight: 9U
Back door construction: Steel
Back door key lock: No
Built-in UPS: No
Show more parameters
Skonfiguruj szafę

About product

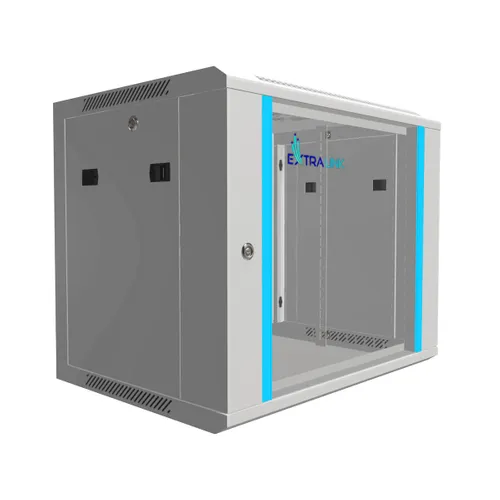

EXTRALINK brand rack cabinet in gray - 9U, 600 × 450

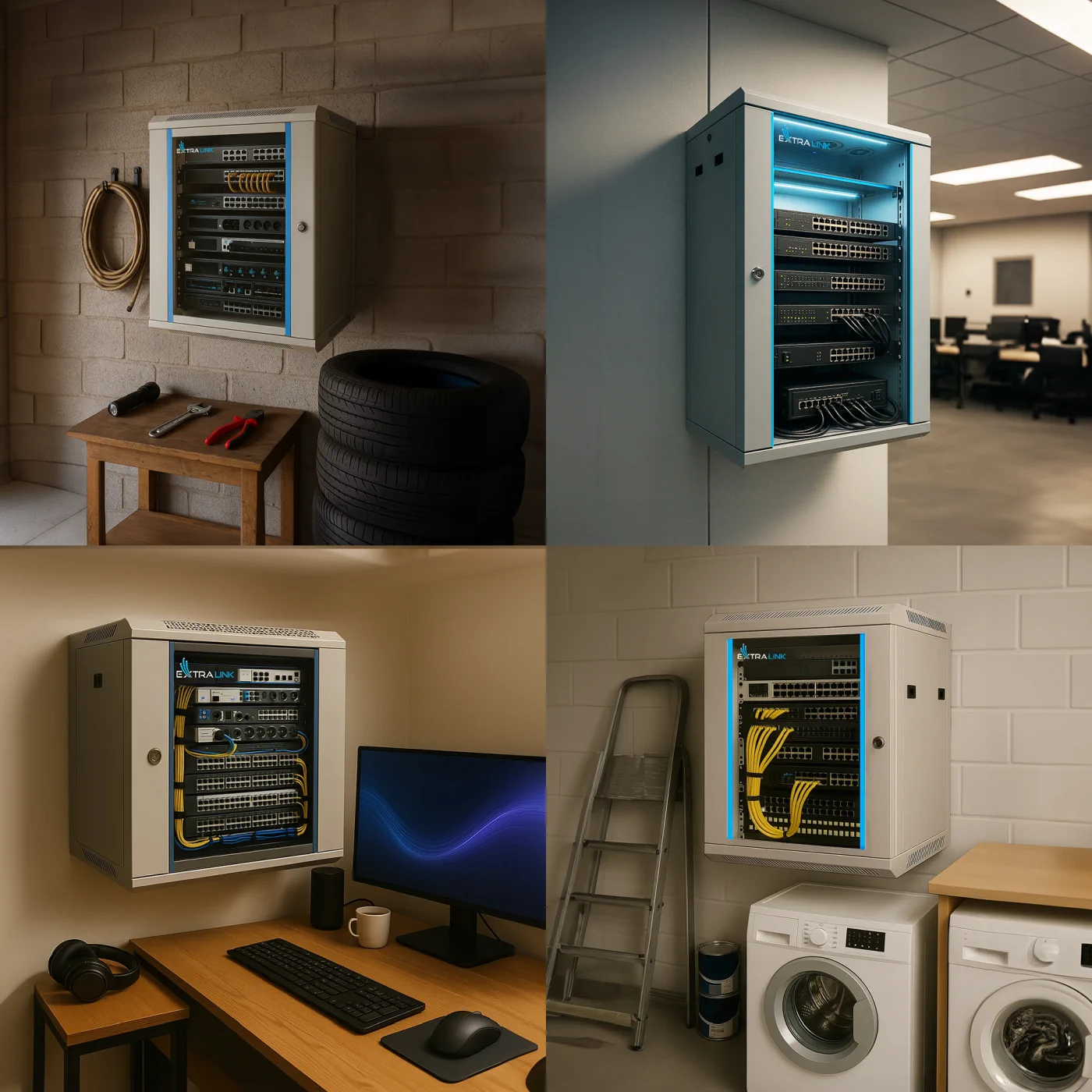

Extralink's rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The outer walls are made of cold-rolled steel sheet. Equipped with a pane of tempered glass, the front door can open to the left or right side.

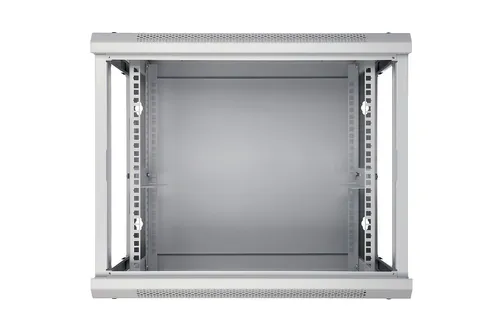

EXTRALINK Cabinet Interior

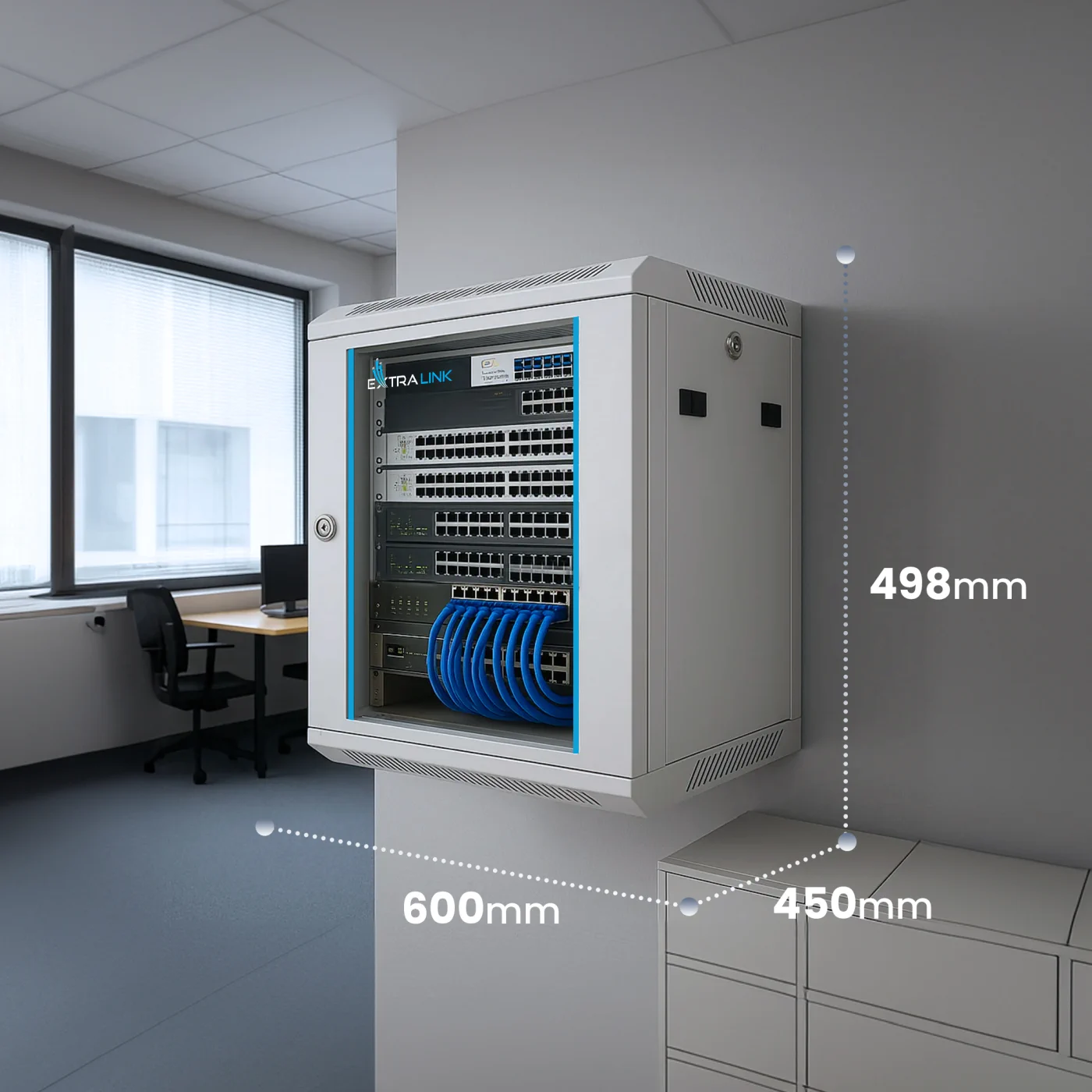

Clearly marked cabinet height

The vertical rails have the appropriate height marking, which is 9U (from unit), while the total height of the cabinet is 50.5 cm.

ETXRALINK Cabinet Height

Easy disassembly of side walls

The latches on the side walls allow for removal. Locks and keys are included.

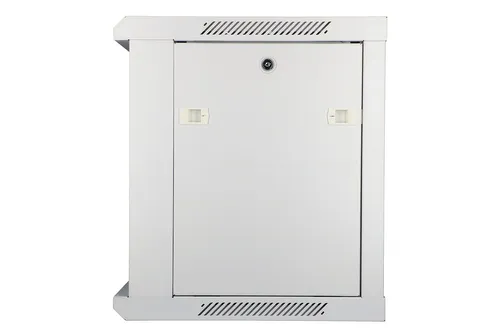

EXTRALINK Cabinet Wall

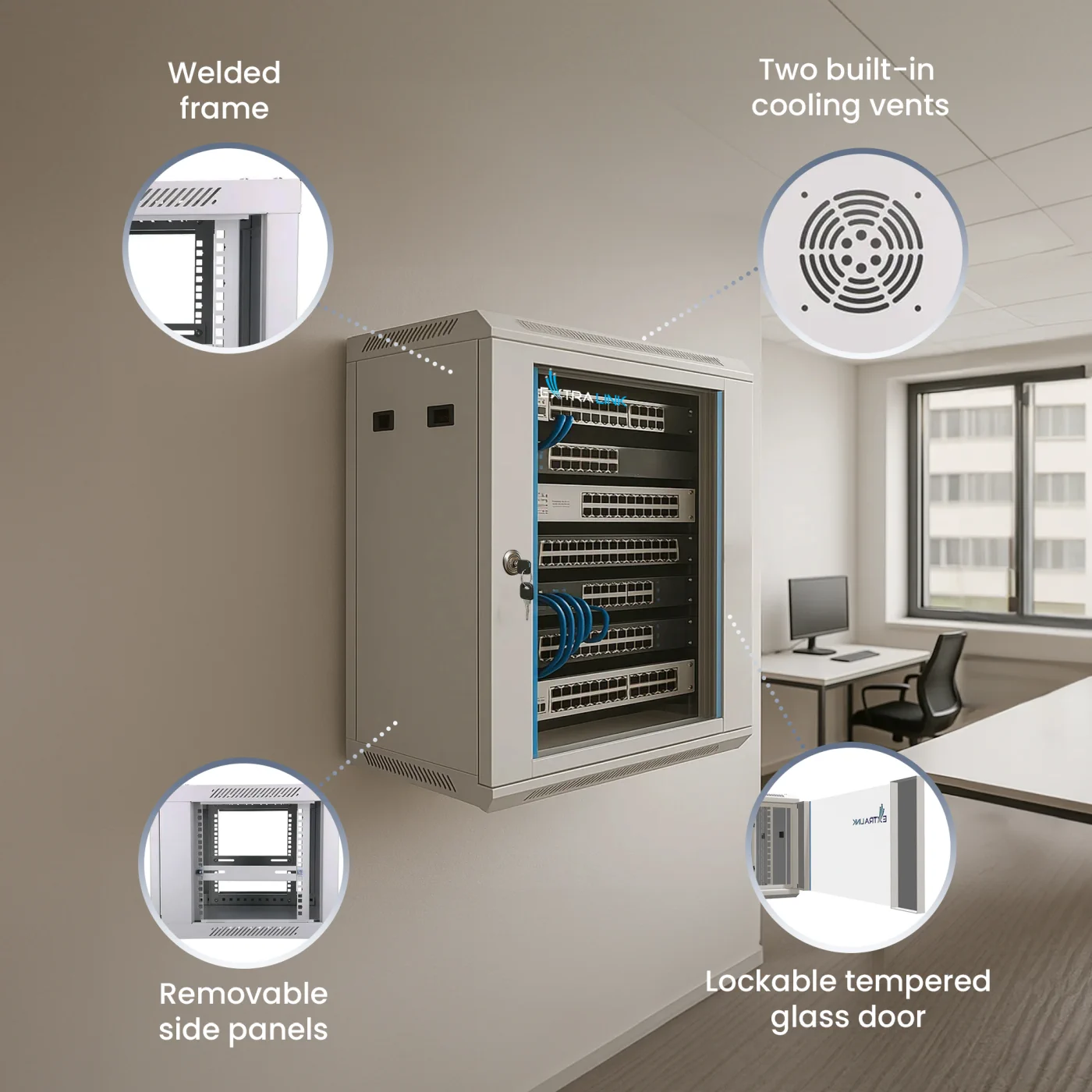

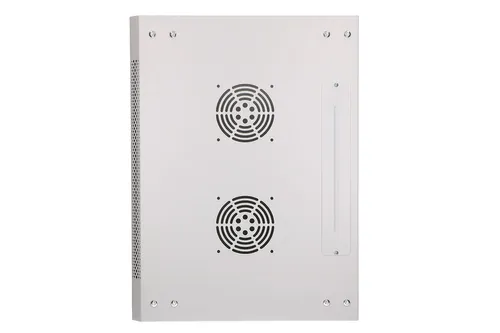

The ceiling of the cabinet adapted for the installation of fans

On the ceiling of the cabinet there are 2 places for installing fans for better cooling of the devices, there is also an additional pass-through for cables.

EXTRALINK Cabinet Ceiling

Cabinet construction - drawing

EXTRALINK Cabinet Construction

Main features

Extralink 9U 600x450 Grey | rack cabinet | wall-mounted.
Extralink 9U 600x450 Grey | rack cabinet | wall-mounted.
Extralink 9U 600x450 Grey | rack cabinet | wall-mounted.

Specification

Features / filters
Cabinet hight 9U
Back door construction Steel
Back door key lock No
Built-in UPS No
Colour Grey
Cooling type Passive
Depth 450mm, 450,
Frame type Closed
Front door construction Tempered glass
Front door key lock Yes
Height 505
Key lock Yes
Material Glass, Metal
Maximum weight capacity 65
Package depth 490
Package height 640
Package volume 0.050176
Package weight 18.5
Package width 160
Product colour Grey
Rack capacity 9U
Rack rails Yes
Removable back door No
Removable front door Yes
Removable side panels Yes
Side panel construction Steel
Side panel key lock Yes
Side panels included Yes
Size (imperial) 48.3
Type Wall mounted rack
Type of doors Glazed
Width 600mm, 600,

Technical data
Width 600 mm
Depth 450 mm
Height 498 mm
Maximum available internal depth for the device 390 mm

Support

Downloads:

Installation instructions Download
