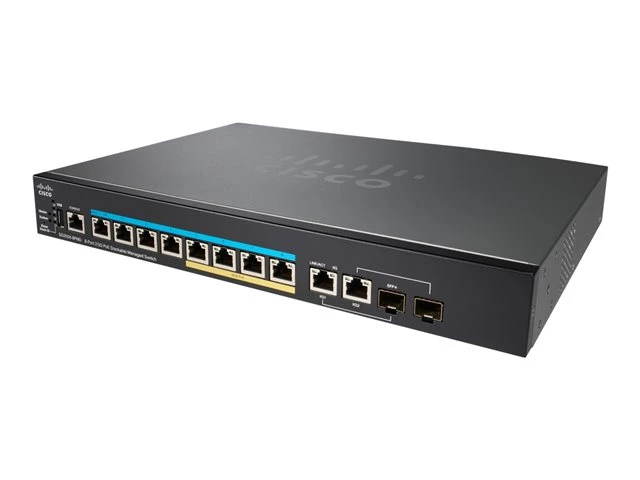

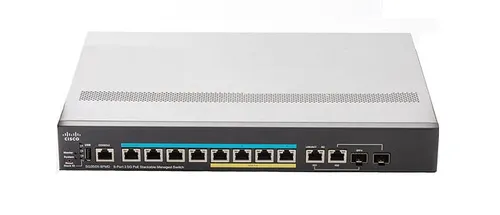

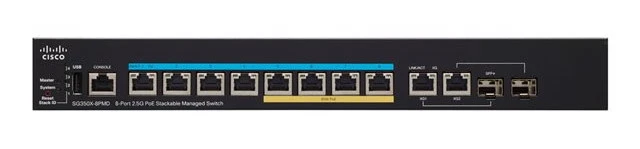

Cisco SG350X-8PMD-K9-EU | Switch | 8x RJ45 2.5Gb/s, 4x PoE+, 2x RJ45/SFP+ Combo, 240W

Name: Cisco SG350X-8PMD-K9-EU | Switch | 8x RJ45 2.5Gb/s, 4x PoE+, 2x RJ45/SFP+ Combo, 240W
Brand: CISCO
SKU: SG350X-8PMD-K9-EU
Price: 497.39 GBP
Availability: OutOfStock

CODE: SG350X-8PMD-K9-EU / EAN: 0882658966897

Cisco SG350X-8PMD-K9-EU | Switch | 8x RJ45 2.5Gb/s, 4x PoE+, 2x RJ45/SFP+ Combo, 240W

CODE: SG350X-8PMD-K9-EU / EAN: 0882658966897

415,68 GBP without VAT (net)

Out of stock

LAN standard: 10 Gigabit Ethernet, Gigabit Ethernet 10/100/1000 Mb/s,

Number of LAN ports: 8x [100/1000/2500M (RJ45)]

Number of WAN ports: 2x 10G Combo (RJ45/SFP+)

10G support: Yes

Show more parameters

About product

Cisco SG350X-8PMD - 8-Port 2.5 Gigabit PoE Switch with 2 10Gb/s SFP Uplink ports and RJ45 Stackable Managed Switch - Cisco 350X Series

Cisco SG350X-8PMD switch is equipped with 8 RJ45 ports of 1/2.5Gb/s throughput. The switch has also 2 Uplink ports of 10Gb/s throughput (2 Combo 10G RJ45/SFP ports). Cisco devices have several management options including GUIavailable through a web browser and text CLI console.

Performance at the highest level

The switch features a throughput of 29.76 million packets per second (64-byte packets) and a switching performance of 80 Gbps. This model has 8 ports with PoE power support, 4 of the ports can power devices with a maximum of 60W. The total PoE power budget is 240W. The Cisco switch comes with a limited lifetime manufacturer's warranty.

Cisco 350X Series

Cisco® 350X Series Managed Switches - is a line of managed Ethernet switches that provide the rich capabilities needed to support more demanding network environments at a very affordable price. These switches are easy to deploy and manage without a large IT staff.

Physical stacking of switches

Unlike switches that can be stacked but have components that are administered and diagnosed separately, the Cisco 350X Series provides true switch stacking capabilities, allowing you to configure, manage, and troubleshoot multiple switches as if they were a single device, making network expansion much easier. The 350X Series can be combined with up to 4 switches and up to 208 managed ports as a single stacked system.

Why Cisco? Features and Benefits.

Cisco 350X Series switches offer the advanced feature set that growing businesses and high-bandwidth applications and technologies demand. These switches can improve the reliability of critical functions, protect sensitive business information, and optimize network bandwidth to more efficiently move data across the network.

- Easy to configure and manage - Cisco 350X Series switches are designed to be easy to use and manage.

- Power over Ethernet Plus (PoE ) and 60W Po E - PoE technology simplifies deployment of IP phones and wireless access points by allowing network endpoints to be connected and powered over a single Ethernet cable, without the need to install separate power supplies. The 350X Series switches support 15W Power over Ethernet (PoE) and 30W Power over Ethernet Plus (PoE ). The switches also support 60W Po E on select ports to power compact switches, wireless access points, or other power-hungry devices.

- High reliability and robustness - Stackable switches can play an important role in eliminating downtime and improving network resiliency. For example, if a Cisco 350X series stackable switch fails, another switch immediately takes over, keeping the network up and running.

- True Stacking - Cisco 350X Series switches provide physical stacking of switches, allowing you to configure, manage, and troubleshoot multiple physical switches on a single device, with a single IP address, for up to 4 devices and up to 208 ports.

- Strong security - Cisco 350X Series switches provide advanced security features that are essential to protect business data and prevent unauthorized users from accessing the network.

- IPv6 Support - Cisco 350X Series switches have successfully passed rigorous IPv6 testing and received USGv6 and IPv6 Gold certification.

- Advanced Layer 3 Traffic Management - The switches support Layer 3 static LAN routing, enabling you to partition your network into workgroups and communicate in VLANs without compromising application performance. These features can improve network performance by offloading internal traffic management tasks from the router and allowing it to manage primarily external traffic and network security.

- Energy Efficiency - The switches are designed to save energy by optimizing power consumption, helping to protect the environment and reduce energy costs.

- Networkwide Automatic Voice Deployment - Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports, and Voice Services Discovery Protocol (or VSDP, a unique Cisco protocol), customers can dynamically deploy an end-to-end voice network.

Specification

Features / filters
LAN standard	10 Gigabit Ethernet, Gigabit Ethernet 10/100/1000 Mb/s,
Number of LAN ports	8x [100/1000/2500M (RJ45)]
Number of WAN ports	2x 10G Combo (RJ45/SFP+)
10G support	Yes
AC input frequency	47/63
AC input voltage	100 - 240
Access Control List (ACL)	Yes
Access Control List (ACL) rules	2000
Active link detection	Yes
ARP inspection	Yes
Authentication	Guest VLAN, Port-based authentication, Web-based authentication
Authentication type	IEEE 802.1x, RADIUS
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Built-in processor	Yes
Cable length detection	Yes
Cables included	AC, Serial
Certification	UL, CSA, CE, FCC
Combo SFP ports quantity	2
Console port	RJ-45
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Depth	252.5
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
DoS attack prevention	Yes
Fiber optic connector	SFP+
Firmware upgradeable	Yes
Flash memory	256
Flow control support	Yes
Form factor	1U
Forwarding rate	29.76
GARP VLAN Registration Protocol (GVRP)	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Heat dissipation	1065.9
Height	44
IGMP snooping	Yes
Internal memory	512
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)	Yes
IP routing	Yes
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	IPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6
Jumbo frames	9000
Jumbo frames support	Yes
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address table	16000
Management	By web browser, CLI - Command Line Interface, By cloud – cloud management,
Mean time between failures (MTBF)	474265
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level	42.9
Number of fans	1
Number of IP interfaces	256
Number of multicast groups filtered	4000
Number of power supply units	1
Number of queues	8
Number of static routes	8000
Number of VLANs	4094
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	0 - 45
Packet buffer memory	1.5
Physical stacking (units)	4
Port mirroring	Yes
Power (W)	382, 240,
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	60
Power over Ethernet plus (PoE+) ports quantity	8
Power supply included	Yes
Processor frequency	800
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rate limiting	Yes
Reset button	Yes
Root protection	Yes
Security algorithms	802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS
sFlow	Yes
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	Yes
Stacking possible	Yes
Static route	Yes
Storage relative humidity (H-H)	10 - 90
Storage temperature (T-T)	-20 - 70
Switch layer	L2/L3
Switch type	Managed
Switching capacity	80
Switching layer	2, 3,
System event log	Yes

Product specifications for the SG350X-8PMD

Performance - switching capacity and data rate
Throughput in Mpps (64-byte packets)	29.76
Switching capacity (Gbps)	80
PoE (Power over Ethernet)
The switches support 802.3at PoE , 802.3af PoE, and Cisco pre-standard (legacy) PoE on any RJ45 network port. 60W PoE on select RJ-45 network ports is also supported, with a maximum of 60W delivered to any of the PoE ports at 60W, and a maximum of 30W delivered to any of the other RJ45 network ports until the PoE budget for the switch is reached. The total power available for PoE for the switch is as follows:
Power dedicated for PoE	240W
Number of PoE-capable ports	8 (4 ports support PoE 60W)
Energy consumption
Green Power	EEE, Energy Detect, Short Reach
Energy consumption of the system	50.5W
Power consumption (with PoE)	307.3W
Heat distribution (BTU/hour)	1065.9
Ports
Total number of ports	2x 10 Gigabit Ethernet 8 x 1/2.5Gb/s RJ45
LAN ports	8x 1/2.5 Gigabit Ethernet
Uplink ports	2x 10GE RJ45/SFP Combo
Packet buffer	1.5 MB
Product specifications
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K.
MAC table	Up to 16K (16384) MAC addresses
Console port	Cisco Standard console port - RJ45
OOB management port	Gigabit dedicated port for out-of-band management on SG350XG models.
USB connector	A USB Type A socket on the front panel of the Switch makes it easy to manage files and images.
Buttons	Reset button
LEDs	System, master, stack ID, link/speed per port
Flash Memory	256 MB
CPU	800 MHz (dual-core) ARM
CPU memory	512 MB
Environmental features
Device dimensions (W x H x D)	344.4 mm x 44 mm x 252.5 mm
Weight	2.74 kg
Power supply	100 - 240V 47 - 63 Hz, internal
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	0° to 45°C
Storage temperature	-20° to 70°C
Operating humidity	10% to 90%, relative, non-condensing
Storage Humidity	10% to 90%, relative, non-condensing
Acoustic noise level and mean time between failures (MTBF)
Fan (quantity)	1
Acoustic noise	42.9 dB at 45°C
MTBF at 50°C (hours)	474,265
Warranty
Warranty	Limited lifetime warranty
Contents of the package	- Cisco Small Business 350X Series Switch - Power Cable - Installation kit - Console cable - Quick user guide
Layer 2 switching
Spanning Tree Protocol	802.1d Spanning Tree support Rapid convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default. 8 instances are supported. Multiple Spanning Tree instances using 802.1s (MSTP)
Port Grouping and Link Aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) up to 8 groups up to 8 ports per group with 16 candidate ports for each aggregated 802.3ad LAG dynamic link
VLAN	Supports up to 4096 VLANs simultaneously VLANs based on 802.1Q ports and tags. MAC-based VLANs VLAN Management Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN Unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication. CPE VLAN
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and processed using the appropriate voice QoS Auto feature levels
Multicast TV VLAN	Multicast TV VLAN allows a single multicast VLAN to be shared across the network while subscribers remain in separate VLANs (also known as MVRs).
Q-in-Q VLAN	VLANs transparently traverse the service provider network while isolating traffic among clients.
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)	Protocols for automatic propagation and configuration of VLANs in a bridged domain.
Unidirectional Link Detection (UDLD)	UDLD monitors the physical connection to detect unidirectional connections caused by improper cabling or cable/port errors to prevent forwarding loops and blocking traffic in networks.
DHCP Relay at Layer 2	Forward DHCP traffic to a DHCP server on different VLANs; works with DHCP option 82.
Internet Group Management Protocol (IGMP versions 1, 2, 3) snooping	IGMP limits bandwidth-intensive multicast traffic to requesters only; supports up to 1K multicast groups (source-specific multicasting is also supported).
IGMP querier	Querier IGMP is used to support the Layer 2 multicast domain of snooping switches in the absence of a multicast router.
HOL (Head-Of-Line) locking	Prevention of HOL locks
Layer 3 functions
IPv4 Routing	Forwarding of IPv4 packets at wire-speed Up to 8K static routes and up to 256 IP interfaces
Static IPv6 Routing at wire speed	Up to 4K static routes and up to 200 IPv6 interfaces
Layer 3 interface	Layer 3 interface configuration on a physical port, LAG, VLAN interface, or loopback interface.
Classless inter-domain routing (CIDR)	CIDR support
DHCP server	The switch acts as an IPv4 DHCP server supporting IP addresses for multiple DHCP pools/scopes. DHCP option support
DHCP relay at Layer 3	Forwarding of DHCP traffic between IP domains
User Datagram Protocol (UDP) relay	Passing transmission information between Layer 3 domains for application discovery or bootP/DHCP packet forwarding.
Stacking - connecting switches into stacks
Hardware Stacking	Up to 4 switches in a stack. Up to 208 ports managed as a single system with hardware failover.
Protection during machine failure	High-speed failover in the stack ensures minimal loss of network traffic. Supports link aggregation between multiple units in the stack.
"Plug and Play" configuration/management.	Master/backup for flexible stack control Automatic numbering Hot Swap of units in a stack Ring and chain stacking options, automatic stacking port speed, flexible port options
High-speed connections between stacks	Cost-effective, high-speed 10G fiber and copper interfaces. LAG support for interconnects for even more bandwidth.
Security
Secure Shell Protocol (SSH)	SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported.
Secure Sockets Layer (SSL)	SSL Support: Encrypts all HTTPS traffic, enabling highly secure access to the browser-based graphical management interface on the switch.
IEEE 802.1X (authenticator role)	802.1X: RADIUS authentication and reporting MD5 checksum Guest VLAN Unauthenticated VLAN Single/multiple host mode and single/multiple sessions Supports 802.1X time-based support Dynamic VLAN assignment
Authorization via Internet	Web-based authentication provides web browser-based access control to any device and operating system.
STP Bridge Protocol Data Unit (BPDU) Guard	A security mechanism that protects the network from incorrect configurations. A port with BPDU Guard enabled is disabled if a BPDU message is received on that port. This avoids accidental topology loops.
STP Root Guard	This prevents edge devices not under the control of the network administrator from becoming Spanning Tree Protocol root nodes.
DHCP snooping	Filters DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents malicious devices from acting as DHCP servers.
IP Source Guard (IPSG)	When IP Source Guard is enabled on a port, the switch filters IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing.
Dynamic ARP Inspection (DAI)	The switch discards ARP packets from the port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks.
IP/MAC/Port Binding (IPMB)	The previous features (DHCP Snooping, IP Source Guard and Dynamic ARP Inspection) work together to prevent DOS attacks on the network, thereby increasing network availability.
Secure Core Technology (SCT)	Ensures that the switch will receive and manage process and protocol traffic regardless of the amount of traffic it receives.
Secure Sensitive Data (SSD)	A mechanism for securely managing sensitive data (such as passwords, keys, etc.) on the switch, populating this data in other devices and protecting against auto configuration. Access to view sensitive data in plain text or encrypted form is provided according to the access level configured by the user and the user access method.
Private VLAN	Private VLAN provides security and isolation between switching ports to help ensure that users cannot spy on other users' traffic; supports multiple uplinks.
Port security	Ability to lock source MAC addresses to ports and limit the number of MAC addresses learned.
RADIUS/TACACS	It supports RADIUS and TACACS authentication. The switch operates as a client.
RADIUS accounting	RADIUS reporting features allow you to send data at the beginning and end of a service, indicating the amount of resources (such as time, packets, bytes, etc.) used during the session.
Protection against thunderstorms	Broadcast, multicast and unknown unicast
DoS prevention	Prevention of Denial-Of-Service (DOS) attacks
Multiple user privilege levels in CLI	Allowance levels 1, 7 and 15
ACL access control lists	Support for up to 2000 policies Packet rejection or bandwidth limiting based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag, supported time-based ACLs.
Quality of service
Priority levels	8 hardware queues
Schedules	Strict Priority and Weighted Round-Robin (WRR)
Classes of service	Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based; Differentiated Services (DiffServ); classification and remarking ACLs, trusted QoS Queue assignment based on Differentiated Services Code Point (DSCP) and class of service (802.1p/CoS)
Rate limiting	Ingress policer; outbound traffic control and rate control; per VLAN, per port and based on data flow, 2R3C policies
Avoiding traffic congestion	A TCP congestion avoidance algorithm is required to minimize and avoid global synchronization TCP losses.
IPv6
IPv6	IPv6 host mode IPv6 over Ethernet Dual stack IPv6/IPv4 IPv6 Neighbor and Router Detection (ND) IPv6 stateless address autoconfiguration Path Maximum Transmission Unit (MTU) discovery Double Address Detection (DAD) ICMP Version 6 IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) support. USGv6 and IPv6 Gold Logo Certification
IPv6 QoS	Prioritizing IPv6 packets
IPv6 ACL	Rate limiting or discarding IPv6 packets
IPv6 First Hop Security	RA guard ND inspection DHCPv6 guard Neighbor binding table (snooping and static entries) Neighbor binding integrity check
Multicast listener discovery (MLD v1/2) snooping	Deliver IPv6 multicast packets only to the appropriate recipients.
IPv6 applications	Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, Telnet Client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS
Management
Graphical user interface	Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, configurable dashboard, system maintenance, monitoring, online help and universal search engine.
Smart Network Application (SNA)	Smart Network Application (SNA) is an innovative network-level monitoring and management tool built into Cisco 100 to 500 series switches. It can detect network topology, display link status, monitor events, apply configurations, and update software images across multiple switches in the network. (Note: Network management with Smart Network Application requires a 350, 350X, or 550X series switch as part of the network.)
SNMP	SNMP versions 1, 2c and 3 with SNMP trap support and SNMP version 3 User-based security model (USM)
Remote monitoring (RMON)	The built-in RMON software supports 4 RMON groups (history, statistics, alarms and events) for better traffic management, monitoring and analysis.
Dual stack IPv4 and IPv6	Coexistence of both protocol stacks to facilitate migration
Firmware Update	Update via web browser (HTTP/HTTPS) and TFTP and SCP. Updates can also be initiated via the console port. Dual images for flexible firmware updates
Port mirroring	Traffic on a port or LAG can be mirrored to another port for analysis using a network analyzer or RMON probe. Up to 8 source ports can be mirrored to a single destination port.
VLAN mirroring	Traffic on a port can be mirrored to another port for analysis using a network analyzer or RMON probe. Up to 8 source ports can be mirrored to a single destination port. A single session is supported.
Flow-based redirection and mirroring	Redirect or mirror traffic to a destination port or mirror session based on flow.
Remote Switch Port Analyzer (RSPAN)	Traffic can be mirrored through the Layer 2 domain to a remote port on another switch for easy troubleshooting.
sFlow agent	The switch can export the sFlow sample to external collectors. sFlow provides visibility of network traffic to the flow level.
DHCP (options 12, 66, 67, 82, 129, and 150)	The DHCP options allow tighter control from a central point (the DHCP server) for IP address, autoconfiguration (with configuration file download), DHCP relay, and hostname.
Self-configuration with Secure Copy (SCP)	Enables secure, mass deployment with sensitive data protection.
Text-based, editable configuration files	Configuration files can be edited with a text editor and downloaded to another switch, facilitating mass deployment
Smartports	Simplified configuration of QoS and security features
Auto Smartports	Applies intelligence provided through Smartport roles and applies it automatically to the port based on devices discovered using Cisco Discovery Protocol or LLDP-MED.
Secure copy (SCP)	Securely transfer files to and from the switch.
Text-based CLI command line	Scriptable CLI. Full CLI and menu CLI are supported.
Cloud services	Support for Cisco Active Advisor
Temporary operation of the port	Raise or lower the port based on a user-defined schedule (when the port is administratively raised)
Other forms of management	Traceroute; Single IP Management; HTTP/HTTPS; SSH; RADIUS; Port Mirroring; TFTP Update; DHCP Client; Simple Network Time Protocol (SNTP); Xmodem Update; Cable Diagnostics; Ping; Syslog; Telnet Client; SSH Client; Automatic Time Setting from Management Station
Energy efficiency
Energy detection	The switch automatically shuts down power to the RJ-45 port when no connection is detected. Power is resumed without packet loss when the switch detects a connection.
Cable length detection	Adjusts signal strength according to cable length. Reduces power consumption for shorter cables.
EEE (802.3az) compliant	802.3az support on all 10Gb/s copper ports
Disabling the port LEDs	The LEDs can be manually switched off to save energy.
Discovery
Bonjour	The switch broadcasts using the Bonjour protocol.
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions	LLDP enables a switch to broadcast its identification, configuration, and capabilities to neighboring devices that store data in the MIB. LLDP-MED is an extension to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol	The switch broadcasts itself using Cisco Discovery Protocol. It also learns the connected device and its properties using Cisco Discovery Protocol.

Support

Downloads:

Cisco 350X Administration Guide - ENG	Download
Cisco 350X Series Quick Start Guide - ENG	Download
Cisco Series 350X Datasheet - ENG	Download
Cisco 350XG Series Quick Start Guide - ENG	Download

415,68 GBP without VAT (net)

Any customs costs and VAT are to be borne by the buyer in the country of receipt.

Out of stock

Print version

Choose a different country or region to shop in the language that suits you

Our site uses cookies (so-called "cookies"). You can find more about these files, as well as about how we process your personal data, in our privacy policy.

Favorite
