Cisco Business 240AC | Access Point | 802.11ac 4x4 Wave 2 Ceiling Mount, 5-pack

CODE: 5-CBW240AC-E

Cisco Business 240AC | Access Point | 802.11ac 4x4 Wave 2 Ceiling Mount, 5-pack

CODE: 5-CBW240AC-E
710,79 GBP without VAT (net)
Out of stock
Maximum wireless transmission speed: 1733 Mb/s,  600 Mb/s,
Number of LAN ports: 2x 10/100/1000BaseTX (RJ45)
Operating frequency: Dual Band (2.4GHz, 5GHz)
Show more parameters

About product

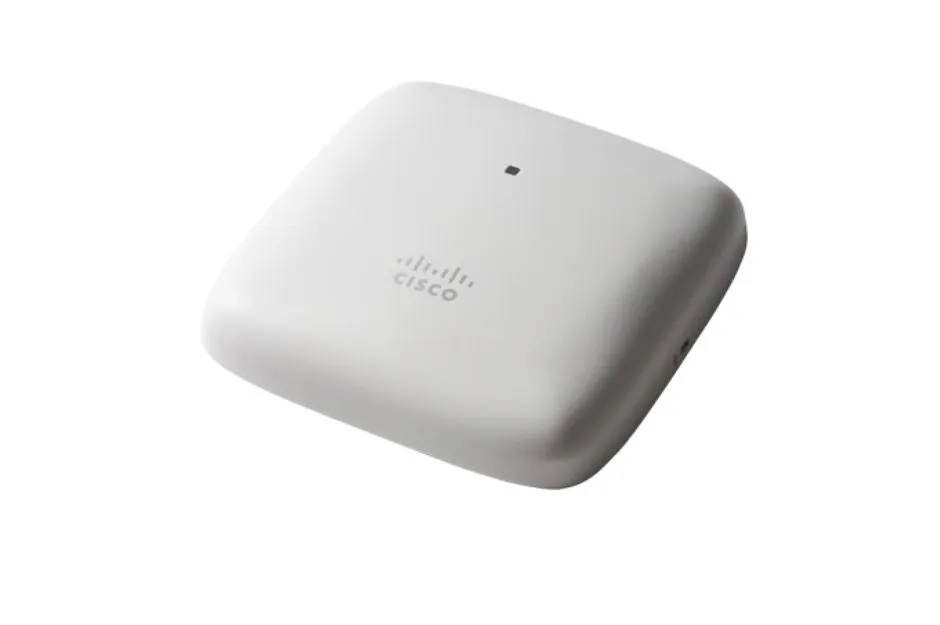

Cisco Business 240AC access point - 5-pack

The Cisco® Business 240AC access point provides the ideal combination of high performance in a compact form. Equipped with 802.11ac Wave 2, 4x4 MU-MIMO technology, this platform is ideal for deployment in small and medium enterprises.

802.11ac Wave 1 and 2 capabilities with MU-MIMO technology

The IEEE 802.11ac Wave 2 standard provides better performance for advanced applications such as 4K or 8K video, high-resolution collaboration applications, wireless offices and the Internet of Things (IoT). Supporting four radio streams, MU-MIMO allows access points to distribute the signal between client devices to maximize throughput.

CISCO BUSINESS 240AC

Simplified management

With Cisco Business Mobile you can easily deploy and configure multiple Cisco Business Wireless access points and Cisco Mesh Extenders without the need for a physical controller. Optional remote management of multiple access points is available through Cisco FindIT Network Management applications.

Mesh technology support

It is possible to mix Cisco Business Mesh devices and Cisco Business access points to increase the range of WiFi network.

Cisco Business Mobile application

The Cisco Business 240AC access point can be managed by Cisco Business Mobile, an intuitive application that simplifies traditional wireless deployment challenges directly from your mobile device. You can expand your network by adding new mesh devices and automating wireless network activation in minutes. Real-time data such as: network consumption monitoring, traffic and bandwidth patterns are available directly from your mobile application. Cisco Business Mobile application is available for iPhone, iPad and Android devices.

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Maximum wireless transmission speed 1733 Mb/s, 600 Mb/s,
Number of LAN ports 2x 10/100/1000BaseTX (RJ45)
Operating frequency Dual Band (2.4GHz, 5GHz)
Wireless network standards IEEE 802.11ac Wave 2, IEEE 802.11n,
Antenna gain Under 10dbi
Antenna type Integrated
Application Indoor
MIMO Type MU-MIMO 4x4
Numbers of pieces in the package 5-pack
Type of device power supply PoE 802.3af/at

Technical specification:
Authentication and security Wi-Fi Protected Access 2 (WPA2) WPA3 will appear after the release of FCS (Post-Frame Check Sequence).
802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● Segmentation by VLAN (up to 16)
● 802.11r and 802.11i
The guest network can also authenticate with Google and Facebook
Maximum number of clients Maximum number of connected wireless clients: 200 per one Wi-Fi radio, a total of 400 clients per access point or 1000 in the entire system
Maximum access points ● 50
● Recommended up to 25
Maximum number of Mesh Extenders ● 25 per access point, up to 8 hops
802.11ac ● 4x4 MU-MIMO with four spatial streams, up to 1733 Mb/s
● 802.11ac beamforming
● Channels 20, 40 and 80-MHz
Dynamic frequency selection (DFS)
Integrated antennas 2.4 GHz, 4 dBi gain, indoor, omnidirectional antenna
5 GHz, 5 dBi gain, internal, omnidirectional antenna
Ethernet ports Authentication with 802.1X or MAC filter
Dynamic VLAN or per port
Interfaces 2 x Gigabit (automatic 10/100/1000BASE-T detection), Power over Ethernet (PoE)
● RJ-45 console port (non-functional)
● USB 2.0 (non-functional)
LEDs The status LED indicates the status of the startup program, connection status, operating status, warnings for the startup program, errors in the startup program.
Dimensions (W x L x H) Access point (without mounting brackets): 7 x 7 x 1.5 inches
Weight 0.94 lb (0.43 kg)
Power options 802.3af/at Ethernet switch; Cisco Business switch with PoE is recommended
Optional PoE Injector Cisco Business
Power consumption ● 13.2W
Environmental Action:
Temperature: 32° to 104°F (0° to 50°C)
Humidity: 10% to 90% (non-condensing)
Maximum height: 9843 feet (3000 m) at 40°C
Warehousing and transportation:
Temperature: -22° to 158°F (-30° to 70°C)
Humidity: 10% to 90% (non-condensing)
Maximum height: 15 000 feet (4500 m) at 25°C
System resources 1GB MB DRAM, 256 MB flash
Guarantee Cisco Business Limited Lifetime Equipment Warranty
Free software updates
Transmission power settings available 2.4 GHz: up to 20 dBm
5 GHz: up to 23 dBm
Supported data rates 802.11b: 1, 2, 5.5 and 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11n data rates at 2.4 GHz and 5GHz: 6.5 to 600Mbps (20 MHz only and MCS 0 to MCS 15)
802.11ac data rates (5 GHz): 6.5 to 1733Mbps (MCS0-MCS9)

Support

Downloads:

Cisco Business 240AC Access Point - Catalogue Card (ENG) Download
Cisco Business 240AC Access Point - Quick Installation Guide (ENG) Download
Application description of Cisco Business Access Point and Cisco Business 100 Series Mesh Extenders (ENG) devices Download
