Cambium EPMP Force 425 SM EU | Bridge | AC WAVE2 5GHz, 2x2 MIMO, RJ45 1000Mb/s, 25dBi, EU cord

CODE: C050940M203A / EAN: 5907207226866

Cambium EPMP Force 425 SM EU | Bridge | AC WAVE2 5GHz, 2x2 MIMO, RJ45 1000Mb/s, 25dBi, EU cord

CODE: C050940M203A / EAN: 5907207226866
451,55 GBP without VAT (net)
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Fast shipping
Maximum wireless transmission speed: 1 Gb/s
Number of LAN ports: 1x [100/1000M (RJ45)] ,  1x [10G (SFP+)] ,
Antenna gain: 21dBi - 30dBi
Numbers of pieces in the package: 2-pack
Show more parameters

About product

Price for one device, to set up a point-to-point link you need to buy 2 units

Utilizing the latest 802.11ax technology and Cambium Networks' proprietary ePTP mode, the Force 425/400C offers high spectral efficiency with features such as 1024 QAM, 80 MHz channels, a high-performance frame structure and a proven ePTP air interface. The Force 400 series provides performance up to 1 Gbps with less than 5 ms latency. All devices operate in the 4910 to 6135 MHz frequency range. In addition to a single 100/1000 BaseT port, compatible with Cambium PoE and Standard PoE, there is 1 x SFP for direct connection to fiber.

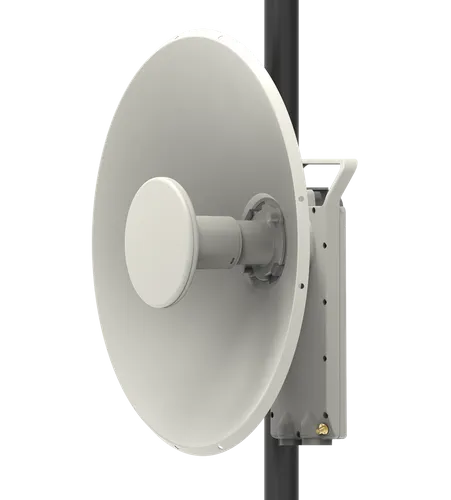

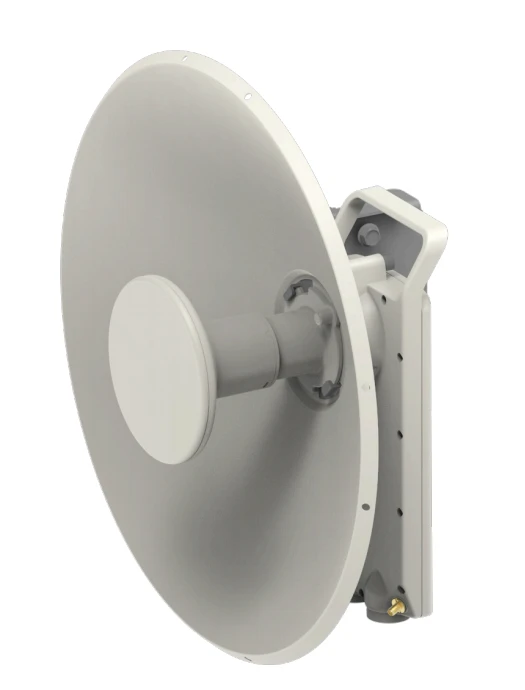

FORCE 425 SM

Specification

Features / filters
Maximum wireless transmission speed 1 Gb/s
Number of LAN ports 1x [100/1000M (RJ45)] , 1x [10G (SFP+)] ,
Antenna gain 21dBi - 30dBi
Numbers of pieces in the package 2-pack

Spectrum
Channel width MHz 20 | 40 | 80
Patented physical layer 802.11ax, 2x2 MIMO/OFDM
Channel spacing Configurable in 5 MHz increments
Frequency range Wide band operation 4910 - 6135 MHz
MAC Layer Owned by Cambium
Ethernet interface 100/1000 BaseT, compatible with Cambium PoE and standard PoE pins; 10 Gigabit SFP slot for optional SFP modules
Protocols used IPv4/IPv6 (dual management stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™.
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Maximum throughput 1 Gbps
Delay < 5 ms
Nominal receive sensitivity (w/FEC) @20 MHz Channel MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain)
Nominal receive sensitivity (w/FEC) @40 MHz Channel MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain)
Nominal receive sensitivity (w/FEC) @80 MHz Channel MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain)
Modulation levels (Adaptive) MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
Transmission power range 3 to 28 dBm (total, up to regional EIRP limit) (in 1 dB steps)
Physical
Connectors 1 x RJ-45, 1 x SFP
Surge suppression 1 Joule Integrated
Protection rating IP67
Temperature -30°C to 65°C (-22°F to 149°F)
Weight 4.8 kg (10.6 lbs.)
Wind resistance 180 km/h (112 mph)
Dimensions (H x W x D) 470 mm diameter x 285 mm depth (18.5 inch diameter x 11.2 inch depth)
Range of pole diameters Center: 3.1 to 7.6 cm (1.25 to 3.0 in)
Power consumption 28 W
Security
Encryption 128-bit Over-the-Air encryption (256-bit AES if permitted by export regulations - ROADMAP feature)
Antenna specifications
Frequency range 4910 - 6135 MHz
Antenna type Dishes
Peak gain 25 dBi
3 dB Beamwidth Azimuth 15º
3 dB Beam width Façade 30º
Insulation front to back TBD
Cross polarization TBD
