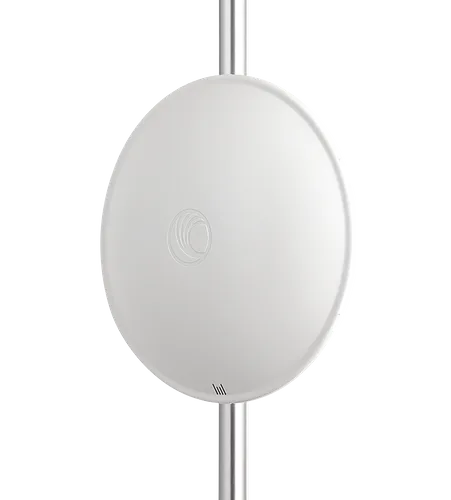

EPMP™ Force 200 5 GHz adds a subscriber module and point-to-point radio to the 5 GHz ePMP product line with a guarantee of excellent throughput of over 200 Mbps of actual user data. Long range deployment is possible with a 25 dBi antenna. Configurable operating modes enable reliable adaptation to both symmetric and asymmetric traffic, while providing high performance and extremely low latency of 2-3 ms both ways.
The device increases range and improves throughput in the most congested environments. ePMP Force 200 is a completely redesigned Cambium Networks solution that combines highly integrated and efficient radio with a high gain antenna. The radio supports Gigabit Ethernet interface for maximum throughput. Operating in the 2.4 and 5 GHz frequency ranges, the solution provides customers with wireless broadband over longer distances and excellent return on investment.
| ePMP Force 200 specification | |
| INTERFACE | |
| Channel spacing | Configurable in 5 MHz increments |
| Frequency range | 2.4 GHz model: 2402-2472 MHz 5 GHz model: 4910-5970 MHz |
| MAC | Cambium Proprietary |
| Channel width | 5 | 10 | 20 | 40 MHz |
| PERFORMANCE | |
| ARQ | Yes |
| Physical layer | 2x2 MIMO/OFDM |
| Nominal receiving sensitivity 20 MHz channel | MCS0 = -92 dBm to MCS15 = -68 dBm |
| VLAN | 802.1Q with priority 802.1p |
| Ethernet Interfaced | 10/100/1000 BaseT, compatible with Cambium PoE & Standard PoE pin-out. |
| Protocols to be applied | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| PHYSICAL FEATURES | |
| Modulation levels | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
| Surge suppression | 1 joule integrated |
| Nominal receiving sensitivity 40 MHz channel | MCS0 = -89 dBm to MCS15 = -65 dBm |
| Quality of Service | Three priority levels (voice, high, low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast |
| Transmission power range | -15 to +30 dBm (total, up to regional EIRP limit) (1 dB interval) |
| Environmental | IP55 |
| Weight | 2.4 GHz model: 2.8 kg (6.2 pounds) 5 GHz model: 2.3 kg (5.1 lbs) |
| Wind resistance | 145 km/h (90 mph) |
| Temperature | -30°C up to 60°C (-22°F up to 140°F) - With the radio connected, the maximum temperature is 47°C (116°F) |
| Dimensions (diameter x depth) | 47 cm x 28 cm (18.5 in x 11.2 in) |
| Measuring range | 6.4 cm-7.6 cm (2.5 in-3 in) |
| Input voltage | 10 to 30 V |
| Energy consumption | 10 W maximum, 5 W typical |
| SAFETY | |
| CERTIFICATES | |
| FCCID | 2.4 GHz: Z8H89FT0019/5 GHz: Z8H89FT0015 |
| Encryption | 128-bit AES (CCMP mode) |
| Industry Canada Cert | 2.4 GHz: 109W-0019 5 GHz: 109W-0015 |
| CE | 5.4 GHz EN 301 893 V2.1.1/5.8 GHz EN 302 502 V2.1.1 |
| ANTENNA SPECIFICATIONS @ 2.4 GHz | |
| Peak reinforcement | 17 dBi |
| Frequency range | 2402-2472 MHz |
| 3 dB beam width - azimuth | 17° |
| Isolation | > 20 dB |
| Cross-polarity | > 15 dB |
| ANTENNA SPECIFICATIONS @ 5GHz | |
| Frequency range | 5150-5970 MHz |
| Peak reinforcement | 25 dBi |
| 3 dB beam width - azimuth | 7° |
| Isolation | > 25 dB |
| Cross-polarity | > 15 dB |
