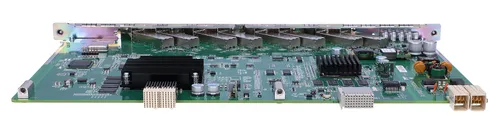

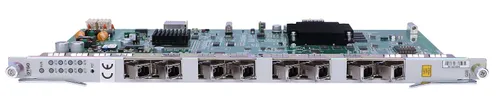

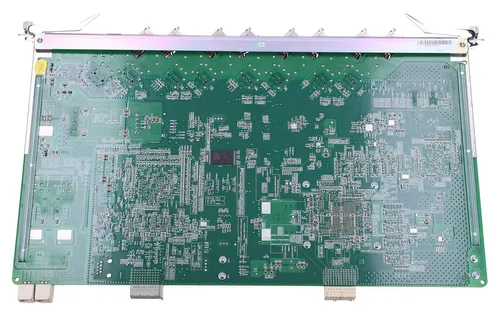

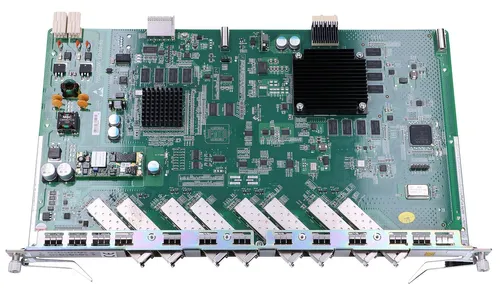

GPON GTGO class C+ subscriber's card has 8 GPON connectors with the division coefficient of 1:128.
The GPON OLT ZTE GTGO C+ extension card together with ONU will allow you to build a high availability network. Supported maximum distance between two ONUs is 20 km, which will improve network building.
The intelligent management channel will facilitate control of ZTE GTGO C+. Real-time detection and isolation of unwanted ONUs, variable OMCI length, faulty connection detection and fast fault finding will ensure stable operation and network development without interruption.
The ZTE GTGO C+ expansion card has features to save energy and reduce energy consumption. It allows you to manually switch off inactive PONs to prevent energy being wasted.
| Connections | 8 x GPON port |
| Division coefficient | 1:128 |
| Functions of GPON | Support for ONU energy saving management (G.987.3) 1024 x T-CONT per PON 4096 x GEM port per PON |
| High performance TM | H-QOS support 1024 queues and 256 schedules per PON port Support for the photosensitive RED and WRED rejection algorithm |
| Clock/Time function | Receiving 1PPS+TOD signals and sending them to ONU via PON channel |
| Protective functions | Temperature measurement and overheating alarm Automatic switch-off in case of overheating |
| Additional parameters | Maximum distance between terminals: 20 km Maximum number of services supported by the card: 16 368 Maximum number of MAC addresses supported by the card: 32 768 Available capacity (on a single port): 1 238 784 kb/s Support for the FEC Retriever/Dispatcher Detection of unwanted ONT Number of ONUs supported by one GPON port: 128 Number of GEM ports supported by the card: 16 384 Number of service ports supported by each GEM port: 8 184 Power reserve on each GPON port: 32 dB (class C+, for long-range transmission) Minimum transfer supported by T-CONT: -Lowest delay: 1 Mb/s -Highest throughput: 128 kb/s Jumbo frames: 9 216 Level 4 QoS |
| Low energy consumption | Low energy GPON MAC chip Reduction of power consumption on average by 30% in industrial use |
| Modules included | 8 x SFP class C+ |
| Dimensions | 490 x 325 x 75 mm |
The ZTE C300 platform can be equipped with 14 ZTE GTGO C+ cards.
