WiBOX SA 5-90-14V is a (SISO) sector antenna operating in the frequency band: 5.3 - 6 GHz with a gain of 14 dBi, in vertical polarity. The antenna can be used in point-multipoint (PMP) topology to cover medium and large areas or as hotspot in schools, halls, stadiums or other public places. It can work inside and outside (IP 67). It works with WLAN (802.11a), Bluetooth, ISM, RFiD.The antenna is integrated with the highest quality WiBOX Medium housing system.

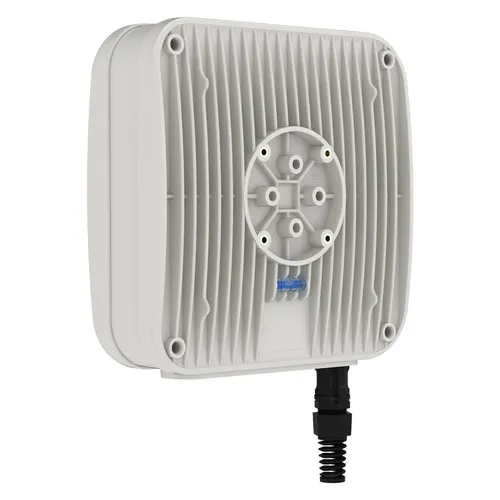

WiBOX Medium

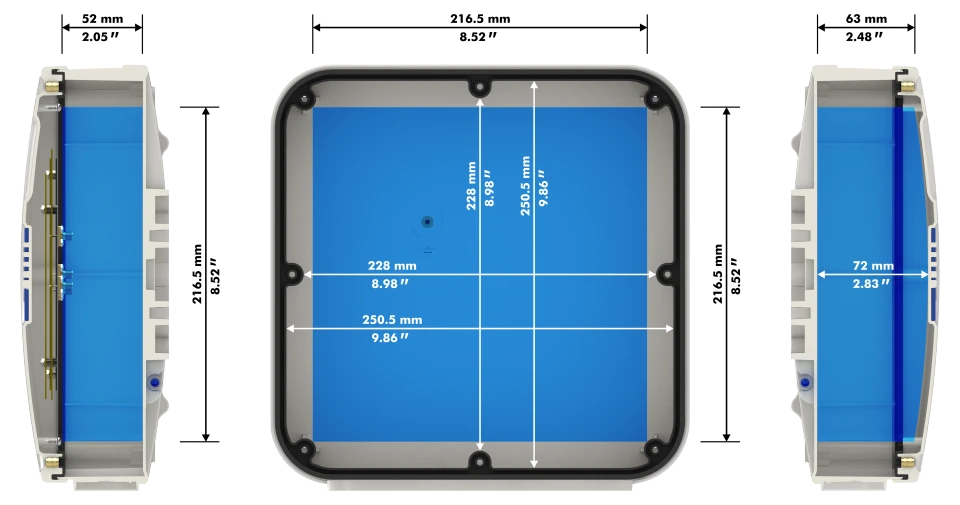

Large and roomy WiBOX Medium enclosure allows to install many of the available radio devices inside. WiBOX enclosures are designed to work outdoors. Each of them is made of UV resistant plastic - ABS. Moreover, they are resistant to bad weather conditions such as rain, snow or high humidity. The operating temperature range is from -40 ° C to 80 ° C.

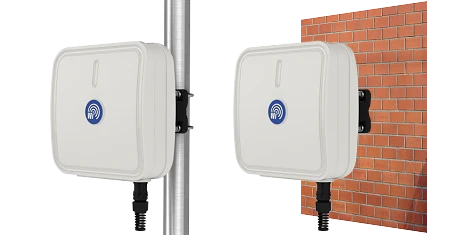

Fixing on a mast or wall

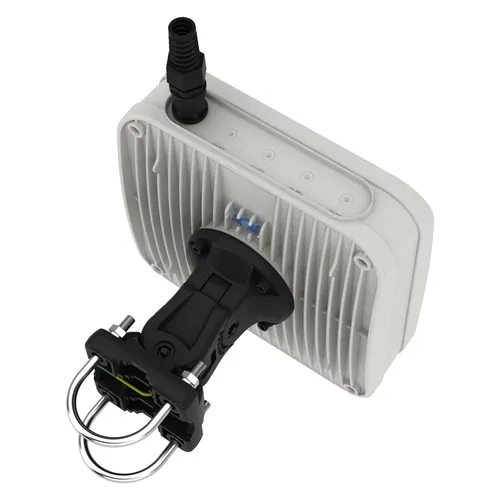

The advanced WiMount mounting system allows for easy mounting of the antenna both on the mast and on the wall. It also allows to set appropriate angle of the antenna in two planes.

Watertight construction

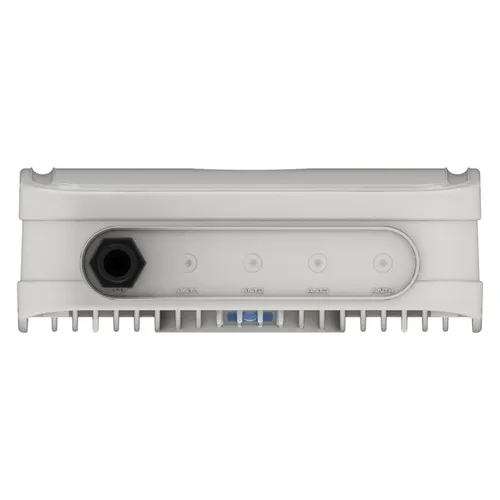

The WiBOX system is certified for water resistance IP67. WiBOX antennas are equipped with the highest quality waterproof RJ45 connector or with standard holes to allow installation of the Ethernet cable maintaining the declared waterproofness level.

Extensive network

WiBOX system can be used to build complex systems consisting of many antennas. For this purpose, four additional holes for other antenna connectors were used in the casing.

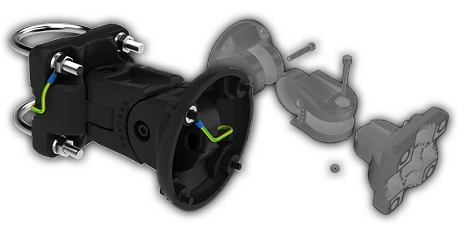

WiMount attachment

WiMount is designed to combine stability and attractive shape in one product. This aesthetic design is made of special glass fibre reinforced plastic, which retains its rigidity even in extreme weather conditions. The innovative shape and the use of the plastic instead of the metal holder ensure better performance and the absence of rust throughout the entire service life. WiMount allows the antenna to be aligned in two polarizations.

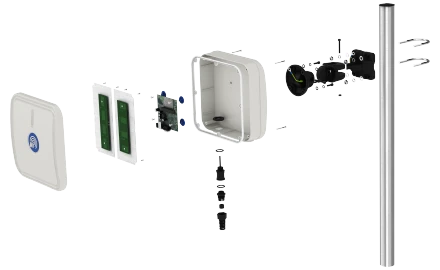

Designed for MikroTik

This product has been qualified for the Made For MicroTik program. Antennas and housings are compatible with MikroTik Routerboards and other devices that are to work with MT products. The reason why this product is certified is the large installation chamber, which gives the possibility to install almost every electronic device available on the market, which probably makes it the most useful product.
