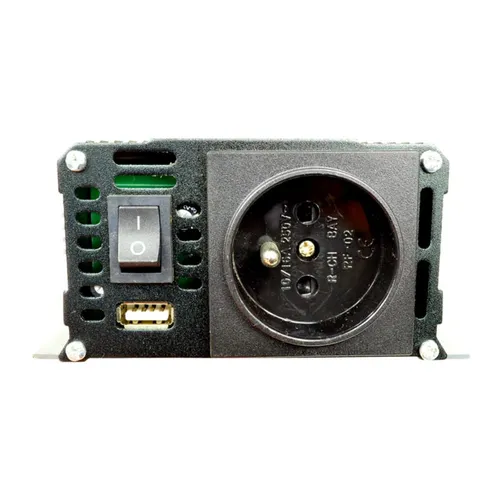

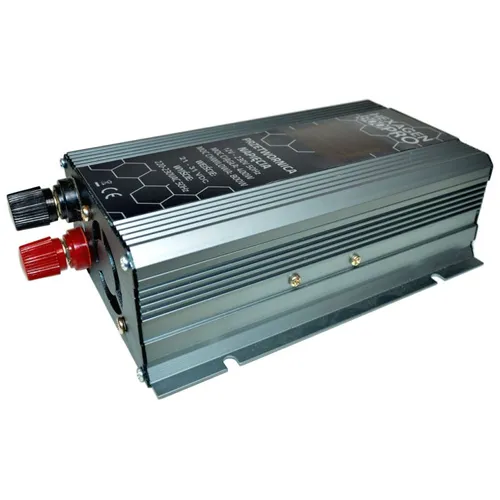

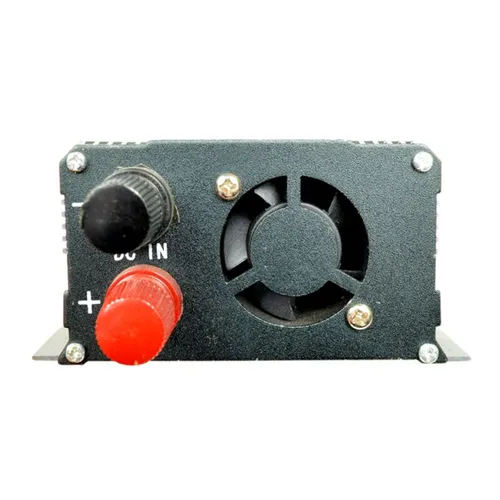

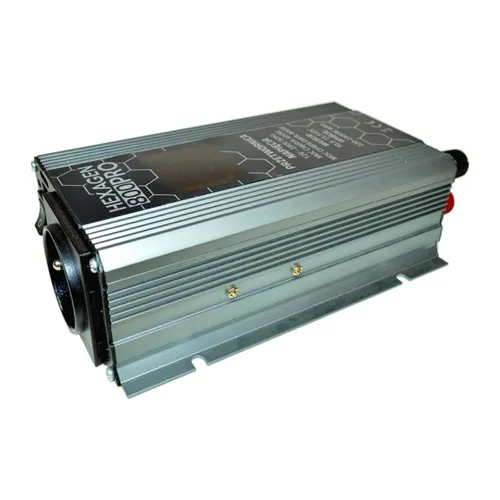

HEX PRO 800 12V is a microprocessor-controlled voltage converter from the HEXAGEN series. The inverter has intelligent fan control depending on the temperature and load, and the device is also equipped with a unique LCD display, which provides visual information about the device parameters. The inverter uses a constant voltage (12V) from the battery to supply the devices with 230V, and the automatic "Power SAVER" function helps to save energy. The converter is ideal for places where there is no possibility of direct connection to the power network.
VOLT HEX series converters produce a so-called modified sine wave at their output. This is a rectangular alternating voltage whose rms value is identical to the rms value of the sine waveform occurring in the power network. Thanks to this method of voltage generation, it is possible to significantly reduce the price and increase the reliability of the whole device. Such a voltage is not suitable for supplying inductive or capacitive devices and may cause damage. The HEX PRO series is ideally suited for powering devices of a resistive nature such as: laptops, chargers, monitors, inkjet printers, lighting, heaters, kettles and other electronic devices.
| Technical data | |
| Continuous power | 400 W |
| Temporary power | 800 W |
| DC input voltage | 21 V - 31 V |
| AC output voltage | 225 V - 235 V |
| Output voltage waveform | Approximated sine wave |
| Output voltage frequency | 50 Hz (+- 2 Hz) |
| Efficiency at full load | > 90 % |
| Operating temperature | 0-40 C |
| USB socket 1.5 A | Yes |
| Display | Yes. (Built-in) |
| Control | microprocessor-based |
In order to correctly calculate the power demand, the total energy consumption should be calculated - the power consumed should not exceed 85% of the maximum (continuous) power of the converter.
We can connect to the converter:
Normal car: 12V
Heavy truck: 12V or 24V (In most cases the lighter sockets are marked accordingly)
