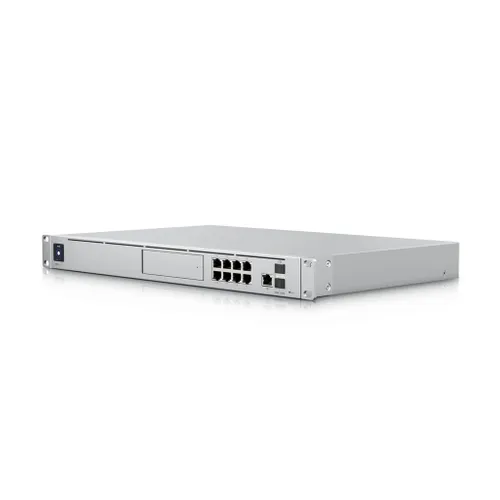

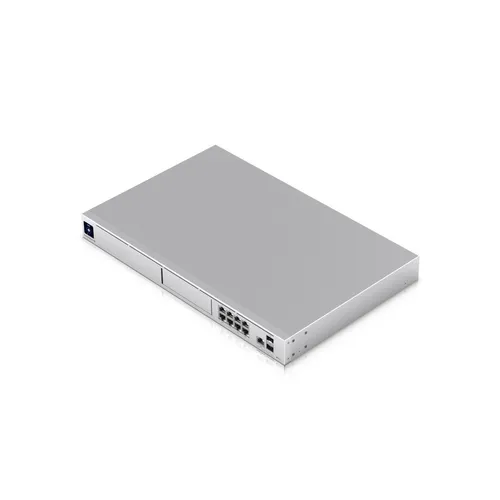

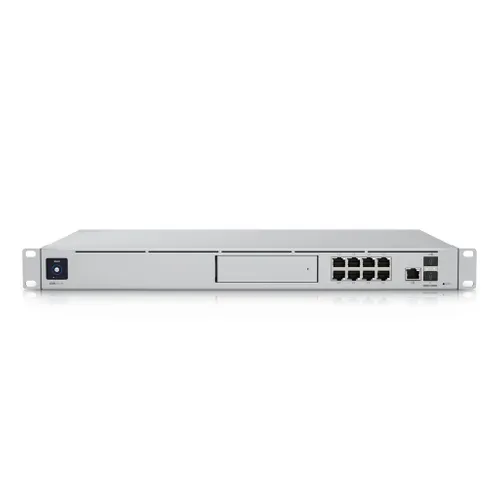

The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a state-of-the-art all-in-one business networking device that combines a comprehensive router, security gateway, integrated PoE switch and network video recorder. Ideal for homeowners and businesses alike, the UDM-SE enables seamless network scaling and management with advanced dual WAN connectivity (10G SFP and 2.5Gbps RJ45), a Gigabit PoE switch and a built-in video recorder with 128GB of internal storage.
The UniFi Dream Machine SE runs on UniFi OS, which provides full control over all UniFi devices, including access points, Protect cameras, Talk phones and Access readers. The console is future-proof and will be able to support all upcoming UniFi OS applications. The UDM-SE is designed with end-to-end simplicity in mind, and the integrated Bluetooth radio streamlines the initial setup process, which can be done in minutes using the UniFi Network app.
The UniFi Dream Machine SE includes a UniFi network controller, so it can manage UniFi switches and access points. The device lets you run UniFi Protect software to monitor and fully manage your camera surveillance system. Video recordings are stored on the built-in NVR, allowing them to be easily accessed using the UniFi Protect mobile app. Remote access provides secure viewing of recordings stored privately on the UDM Special Edition, rather than on a third-party server.
| Technical parameters | |
| Dimensions | 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2 inches). |
| Weight | 5 kg (10.9 lbs) |
| Assembly material | SGCC steel |
| Housing material | CNC aluminum, SGCC steel |
| Equipment | |
| Processor | Quad-core ARM® Cortex-A57® processor clocked at 1.7 GHz |
| System memory | 4 GB of DDR4 memory |
| On-board storage | Integrated SSD 16 GB eMMC drive 128 GB |
| Management interface | Connectivity Ethernet Bluetooth |
| Network interface | LAN: (8) GbE RJ45 ports (1) port 10G SFP WAN: (1) port RJ45 2.5 GbE(1) 10G SFP port |
| PoE interface | (6) PoE (pair A 1, 2 ; 3, 6-) (2) PoE (pair A 1, 2 ; 3, 6-) |
| IDS/IPS throughput | 3.5 Gbps*. *Measured using iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | (1) Universal AC input, 100-240 V AC, 4.4 A max, 50/60 Hz (1) USP-RPS DC input, 52 V DC, 3.94 A |
| Power supply | AC/DC, internal, 240W |
| Supported voltage range | 100-240 V AC |
| Max. power consumption | 50 W (without PoE output) |
| PoE budget | 180W |
| Max. PoE power per port according to PSE | PoE power supply: 15,4 W PoE : 30 W |
| Voltage range PoE mode | PoE: 44-57 V PoE : 50-57 V |
| Electrostatic discharge/EMP protection | Air: ± 15kV, Contact: ± 8kV |
| LCM display | (1) 1.3-inch touch screen |
| Ambient temperature during operation | From -10 to 40°C (14 to 104°F). |
| Certificates | CE, FCC, IC |
| Gate functions | |
| Performance | Redundant WAN with failover and load balancing Wi-Fi QoS load balancing with access points UniFi QoS Based on applications, domains and countries Identification of application and device type Additional Internet failover with LTE Backup Internet quality and failure reporting |
| New generation security features | Rules Application-specific firewalls Detection IPS/IDS threat detection based on signatures Content, country, domain and ad filtering Segmentation Traffic segmentation based on VLAN/subnetwork Full state firewall |
| Advanced network | License-free SD-WAN network WireGuard, L2TP server and OpenVPN client OpenVPN OpenVPN and IPsec site-to-site VPN Teleport and one-click VPN identity Routing WAN and policy-based VPN Relay DHCP Configurable server DHCP proxy server IGMP support IPv6 ISP |
| LEDs | |
| Ethernet | White: link/activity |
| SFP | White: link/activity |
| Hard drive | White: activity Amber: disk error |
| RPS | Blue: ready |
