Ubiquiti ES-8-150W | Switch | EdgeMAX EdgeSwitch, 8x RJ45 1000Mb/s PoE+, 2x SFP, 150W
![](https://www.batna24.com/img2/1000/286504_1.webp?20989284238)
![](https://b2b.batna24.com/products/Logos/product/DNXFGKQUEKSJ.png)
EN

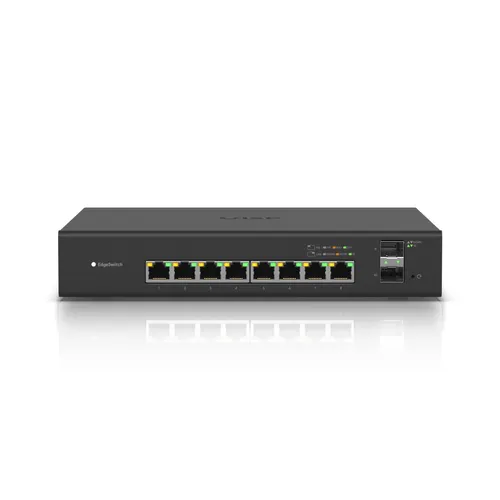

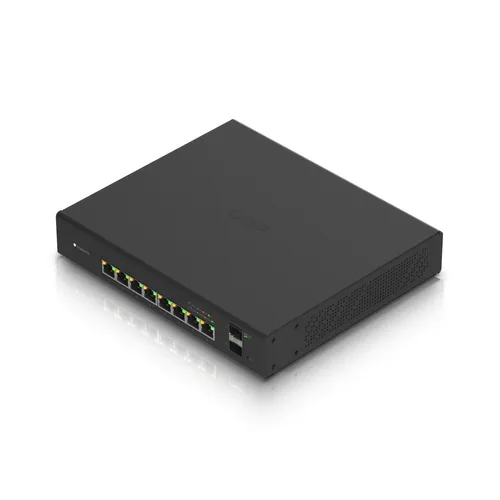

EdgeSwitch® 8 is a fully manageable, powerful PoE+ Gigabit switch. It provides high performance and intelligent data transfer with eight Gigabit Ethernet ports that support PoE+ and two SFP ports for optical connectivity. It can be placed on your desk or mounted on the wall. The DC input option is included for flexibility.
Sharing a total of 150W, the eight Gigabit Ethernet ports offer automatic IEEE 802.3af/@ PoE/PoE+ or 24V passive PoE detection - a solution that was used to simplify the infrastructure.
EdgeSwitch provides fiber optic connection options for growing networks. The two SFP ports provide links up to 1 Gbps.
EdgeSwitch provides robust data transfer performance with total, unblocked bandwidth up to 10 Gbps.
EdgeSwitch offers the ability to transfer data to process traffic on all ports simultaneously at linear speed, without losing packets.
The versatile user interface is easy to learn and allows administrators to configure and monitor functions in the graphical interface. For advanced users there is a command line interface (CLI), which is available via telnet and SSH.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Number of LAN ports | 8x [10/100/1000M (RJ45)] , 2x SFP (1,25G), |
10G support | No |
AC input frequency | 50/60 |
AC input voltage | 100 - 240 |
Access Control List (ACL) | Yes |
Authentication | Guest VLAN, Port-based authentication |
Authentication type | IEEE 802.1x,RADIUS |
Auto-sensing | Yes |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Yes |
Certification | ETSI300-019-1.4 CE, FCC, IC |
Configuring Location Settings (CLI) | Yes |
Console port | RJ-45 |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Depth | 235 |
DHCP features | DHCP server,DHCP snooping |
Ethernet LAN data rates | 10,100,1000 |
Flow control support | Yes |
Forwarding rate | 14.88 |
Full duplex | Yes |
Gigabit Ethernet (copper) ports quantity | 8 |
Half duplex | Yes |
Harmonized System (HS) code | 85176990 |
Height | 43 |
IGMP snooping | Yes |
Installed SFP modules quantity | 2 |
Jumbo frames support | Yes |
LED indicators | Activity, LAN, PoE, Speed |
Link aggregation | Yes |
MAC address filtering | Yes |
MAC address table | 16384 |
Management | CLI - Command Line Interface, By web browser, |
Management protocols | SNMP v1/v2/v3, Telnet |
Multicast support | Yes |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Number of queues | 8 |
Number of VLANs | 4093 |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -25 - 45 |
Port mirroring | Yes |
Power (W) | 150 |
Power consumption (max) | 150 |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) power per port | 34.2 |
Power over Ethernet (PoE) type supported | Active PoE,Passive PoE |
Power supply included | Yes |
Product colour | Black |
Quality of Service (QoS) support | Yes |
Rack mounting | No |
Security algorithms | SSH-1.5,SSH-2,SSL/TLS |
Spanning tree protocol | Yes |
Stackable | No |
Static route | Yes |
Switch layer | L2/L3 |
Switch type | Managed |
Switching capacity | 20 |
Switching layer | 3, 2, |
System event log | Yes |
Type of case | Desktop |
Virtual LAN features | Private VLAN,Tagged VLAN,Voice VLAN |
VLAN support | Yes |
Web-based management | Yes |
Weight | 1.72 |
Width | 204 |
Basic technical parameters | |
Dimensions | 204 × 43 × 235 mm (8,03 × 1,69 × 9,25") |
Weight without wall bracket | 1.72 kg (3.79 lb) |
Weight with wall bracket | 1.8 kg (3.96 lb) |
Total transmission speed without line blocking | 10 Gbps |
Maximum energy consumption | 20W (excluding PoE power output) |
Power supply method | AC - integrated AC/DC power supply, universal input DC - external, input to terminal block |
Internal power supply | AC/DC 150W |
Operating voltage | AC - 100 to 240VAC, 50-60 Hz DC - 42 to 56VDC |
Network Interfaces | (8) 10/100/1000 Mb/s RJ45 ports (2) 1 Gbps Ports SFP |
Management interface | Ethernet In-Band Out-of-band UART console |
PoE interfaces | (8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6) (8) 24 V/0.7A 2-para (+4, 5; -7, 8) |
ESD/EMP protection | ± 24kV Air, ± 24kV Contact |
Operating temperature | Internal AC/DC @ 150W -25 to 45° C (-13 to 113° F) Internal AC/DC @ 100W 25-55° C (-13-131° F) External DC power supply 25-60° C (-13-140° F) |
Working humidity | 5 to 95% |
Certificates | CE, FCC, IC |
EdgeSwitch is set to DHCP by default, so it will try to get an IP address automatically. If this fails, it will use the default backup IP address, 192.168.1.2
One of the following methods should be used:
- Configure the DHCP server to give a specific IP address to the EdgeSwitch based on the MAC address.
- Allow the EdgeSwitch to obtain an IP address and then check the DHCP server or the UBNT Discovery Tool to see which IP address has been assigned.
1. Start a web browser. Enter the appropriate IP address in the address field. Press Enter
2. The login screen will appear. Enter Ubnt in the User name and password field. Click Sign In
3. The EdgeSwitch configuration interface will appear. If necessary, you can adjust additional settings.
More information can be found in EdgeSwitch documentation, which is available at www.ubnt.com/download/edgemax.
