Using a common GPS synchronization reference point, airFiber X radios work consistently to provide powerful multi-gigabit bridge performance for PtP links.
Installation of many airFiber X radio devices on existing airFiber dish antennas is quick and easy thanks to Plug and Play installation. You can use radio channels of different sizes, even adjacent channels without protective bands, and place them anywhere in the radio band.

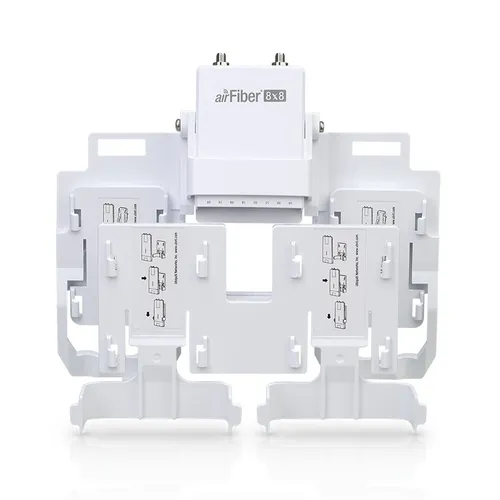

The airFiber NxN multiplexer can be connected to most airFiber X or RocketDish 5 GHz antenna models. In case of any other antenna configuration you can mount the airFiber NxN multiplexer on a mast.
Mounting multiple airFiber X radio transmitters on a single antenna maximizes throughput and capacity in a compact tower housing, minimizing construction costs.
Many airFiber X devices with multiple media on multiple frequency bands provide the highest interference immunity and link redundancy.
EdgePoint offers advanced configuration features, including radio link load balancing and advanced fiber deployment functionality.
Features / filters | |
Antenna type | MIMO directional antenna |
Frequency band | 5 |
Harmonized System (HS) code | 85177100 |
Quantity per pack | 1 |
Basic technical parameters | |
Dimensions | 210.5 × 240.9 × 109 mm |
Weight | 0.45 kg |
RF connectors | (2) RP-SMA Weather resistant (8) RP-SMA Weather resistant (A0, A1, B0, B1, C0, C1, D0, D1) |
Loss of signal | 5 GHz 7.2 dB 4.7 GHz 7.9 dB |
Supported equipment | AF-5X and AF-4X |
Multiplex MIMO | 4 x (2x2) |
Installation | airFiber X/Rocket |
Enable airFiber NxN support in each radio:
1. Log in to airOS
2. Click the Wireless tab.
3. Input the aditional cable loss amount (dB):
- 4 (5 GHz) or 5 (4,7 GHz) for AF-MPx4, lub
- 7 (5 GHz) or 8 (4,7 GHz) for AF-MPx8
4. When setting the NxN radio choose Enable.
5. Click Change, and then Apply.
