Ubiquiti AF60-HD | Radioline | AirFiber, 60GHz, 1x RJ45 1000Mb/s, 1x SFP+, IPX6, GPS

CODE: AF60-HD-EU / EAN: 0810010076113

Ubiquiti AF60-HD | Radioline | AirFiber, 60GHz, 1x RJ45 1000Mb/s, 1x SFP+, IPX6, GPS

CODE: AF60-HD-EU / EAN: 0810010076113
389,50 GBP without VAT (net)
Out of stock
Antenna frequency: 60 GHz
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45),  1x [10G (SFP+)] ,
Antenna design: External
Antenna gain level (max): 38
Show more parameters

About product

A 60 GHz multi-gigabit bridge with SFP support and a link range of 2 km.

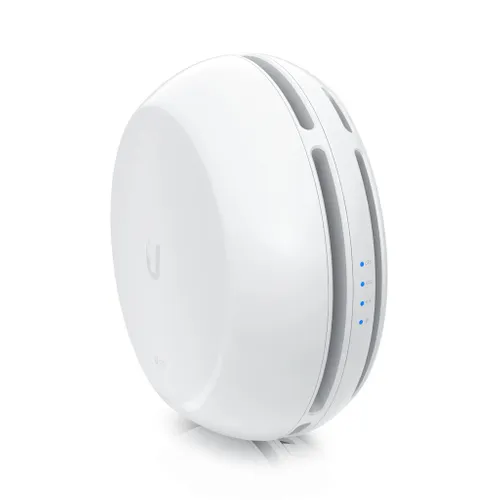

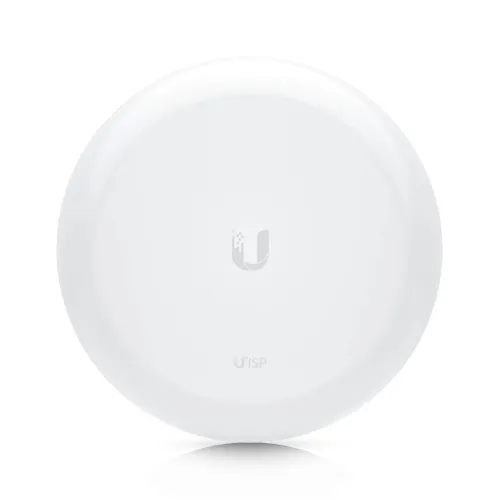

The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior point-to-point (PtP) links with an average range of up to 2 km. The AF60 HD delivers 60 GHz bandwidth with low interference and low latency.

Compact and highly rugged, the AF60 HD also features integrated GPS and Bluetooth management radio to simplify setup and monitoring. This bridge is ideal for ISPs looking to maximize signal bonding with cost-effective equipment.

What distinguishes this device from Ubiquiti?

  • Low interference in the 60 GHzband
  • Link range of up to 2 km
  • Supports channel bonding for up to 6 Gbps throughput
  • (1) 10G SFP port
  • Terragraph certified
  • Integrated GPS
  • Support for link planning with ISP Design Center
  • Simple Bluetoothconfiguration using the UISP™ Mobile app

Specification

Features / filters
Antenna frequency 60 GHz
Number of LAN ports 1x 10/100/1000BaseTX (RJ45), 1x [10G (SFP+)] ,
Antenna design External
Antenna gain level (max) 38
Certification FCC, IC, CE, terragraph
Connectivity technology Wired & Wireless
Depth 189
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000
Ethernet LAN interface type Gigabit Ethernet
Frequency band 60
Harmonized System (HS) code 85176990
Height 89
LED indicators LAN
Material Aluminium, Polycarbonate (PC)
Maximum data transfer rate 1800
Maximum transfer distance 12000
Minimum system requirements Modern Web Browser or Android/iOS Smartphone
Mounting type Pole
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -40 - 55, -40 - 131,
Package type Box
Package weight 2.95
Power consumption (max) 18
Power LED Yes
Power over Ethernet (PoE) voltage 48
Power source type DC, PoE
Product colour White
Product type Network bridge
Quantity per pack 1
Radio link distance 2 km
RAM capacity 2000
Security algorithms WPA2-AES, WPA2-Enterprise, WPA2-PSK
Signal strength 25
Web-based management Yes
Weight 1.8
Width 189

Physical and environmental data
Dimensions 189 x 89 mm (Ø7.4 x 3.5").
Weight without handle 1.8 kg
With handle 2.95 kg
Housing materials Aluminum alloy, UV-stabilized plastic
Fastening material Stainless steel

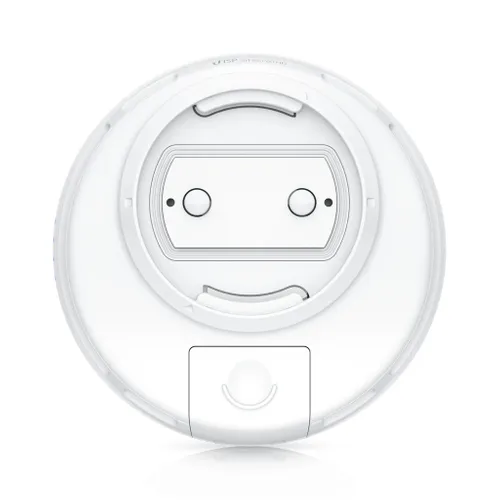

Mounting 60G pole holder for fine tuning (included)
Wind load 64 N at 200 km/h (14.39 lbf at 125 mph).
Weather resistance IPX6
Hardware data
Processor Quad-core ARM® Cortex ® A72 processor at 1.6 GHz
Memory 2 GB DDR4

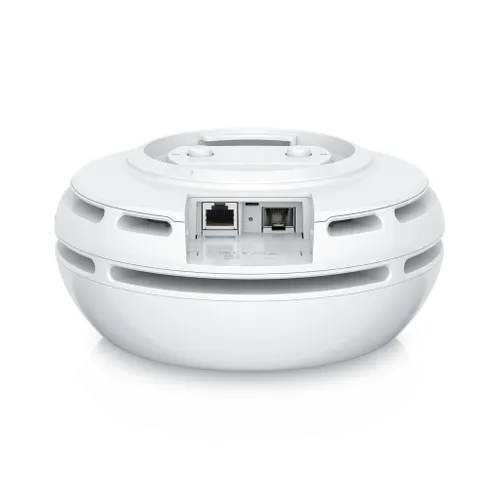

Network interfaces (1) GbE RJ45 port
(1) 1/10G SFP port
Button Factory reset
RF connectors Internal
Maximum power consumption 29,31 W
Power method Passive PoE 4-pair (1, 2 ; 3, 6-) (4, 5 ; 7, 8-) or 2-pair (4, 5 ; 7, 8-)
Power supply 48 VDC, 0.65 A, gigabit PoE adapter (included)
Supported voltage range 48 VDC ± 10%.
Operating temperature -40 to 55° C
Operating humidity 5 to 95% non-condensing
Certificates FCC, IC, CE, Terragraph

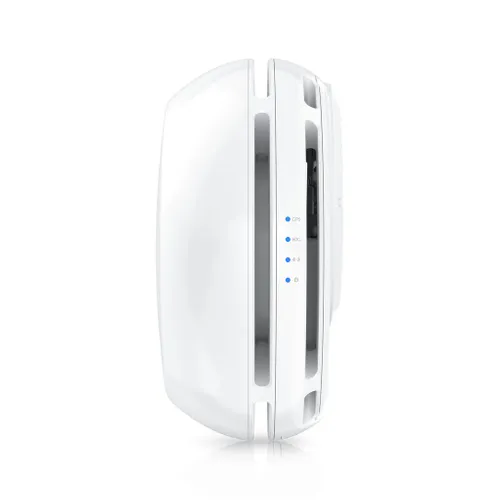

Power supply Flashing white: system booting in progress
White: no connection to the UISP console
Blue: connection to the UISP console
Ethernet flashing blue: Ethernet network activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
System
Maximum throughput 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Maximum range 2 km
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 50/50
RF
Frequency of operation 57 to 66 GHz*.
*Depends on the regulatory region.
GPS Yes
Channel bandwidth 2160 MHz/4320 MHz (with channel bonding enabled)
Working channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*.
*Depends on channel bandwidth.
HPOL beam width NaN (the antenna is vertically polarized only)
VPOL 3°
Facade 3°
Electrical deflection 0°
